[t] 800.413.8783 x 805.494.0622 x E-mail: service@sdcsecurity.com x 801 Avenida Acaso, Camarillo, CA 93012 x PO Box 3670, Camarillo, CA 93011
INSTALLATION INSTRUCTIONS
480-1 NARROW PUSH PLATE SPDT SWITCH 482A1U / 482O1U

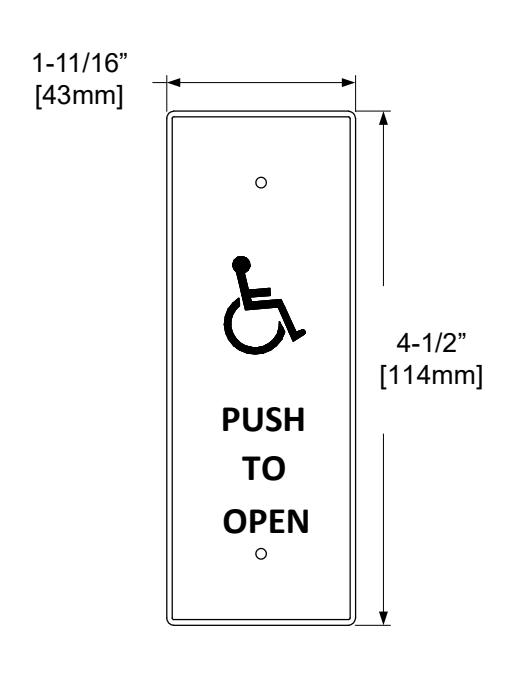

1-11/16" [43mm] O 4-1/2" [114mm] PUSH TO OPEN O
482A1U
48201U
Specification:

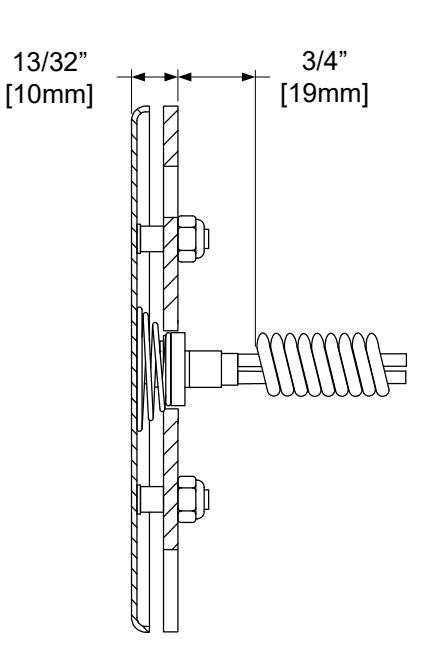

Physical Size: 1-11/16" x 4-1/2" x 1-3/16"
Contact Type: SPDT - Momentary
Contact Rating: 1 Amp @ 28 VDC
NARROW PUSH PLATE DPDT SWITCH 484A1U / 484O1U

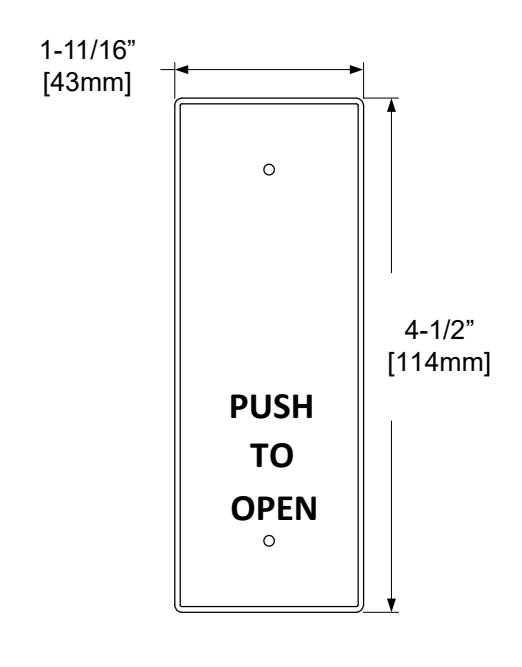

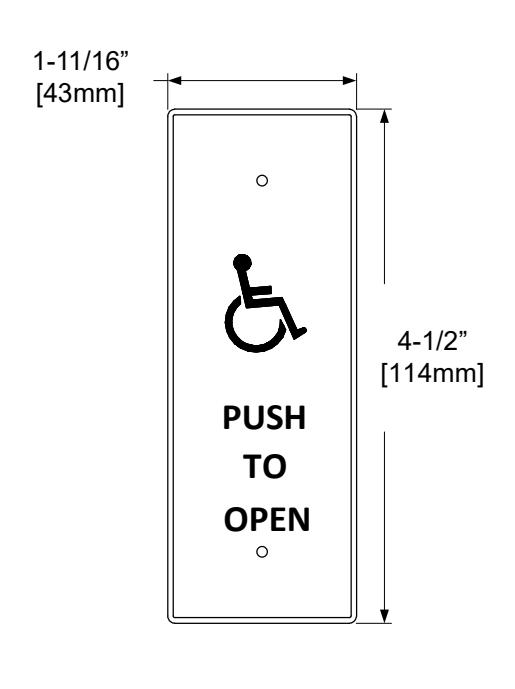

484A1U 484O1U
Specification:

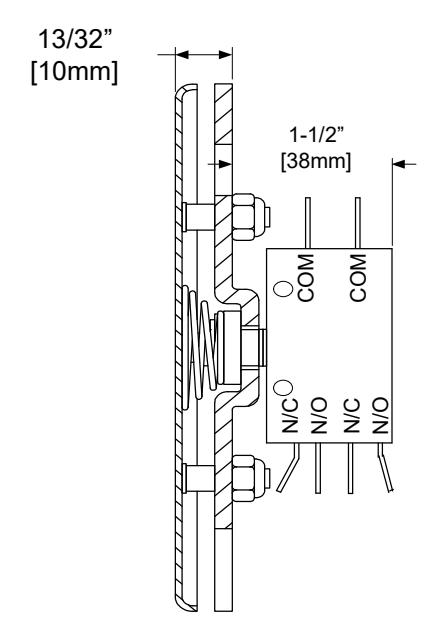

Physical Size: 1-11/16" x 4-1/2" x 1-7/8"
Contact Type: DPDT - Momentary
Contact Rating: 15 Amp @ 125/250 VAC
