Installation Instructions 400-1B NARROW MULLION SURFACE BOX
Open the original PDF document
View PDF
801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • www.sdcsecurity.com • E-mail: service@sdcsecurity.com

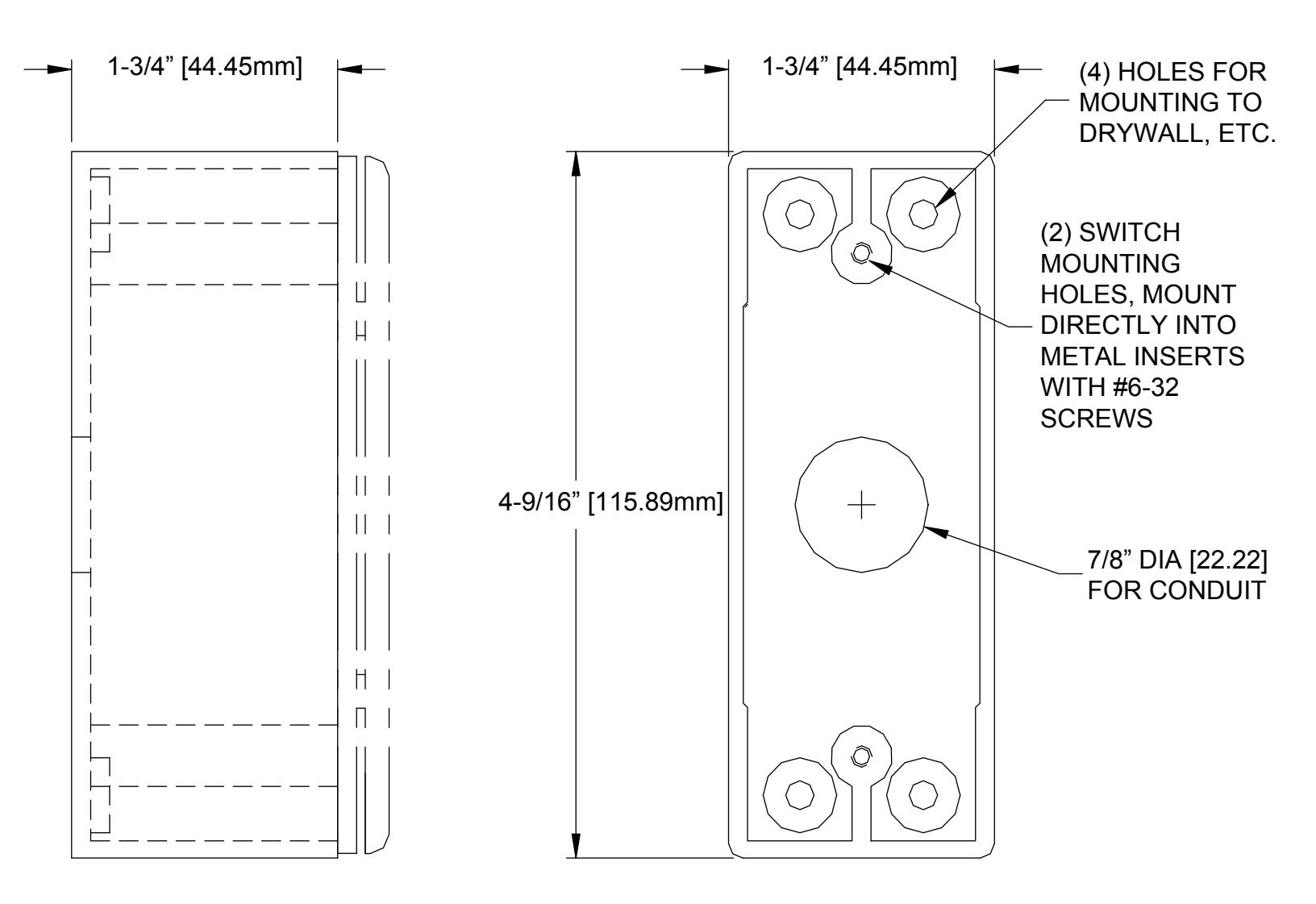

INSTALLATION INSTRUCTIONS 400-1B NARROW MULLION SURFACE BOX 1-3/4" x 4-9/16"x 1-3/4" OD
NARROW BLACK ABS BOX ACCOMDATES WIRED AND WIRELESS OPERATION. USE WITH NARROW ALL-ACTIVE, NARROW PUSH BUTTON & NARROW KEY SWITCHES 400-1B INCLUDES WALL ANCHORS AND MOUNTING TEMPLATE
