INSTALLATION INSTRUCTIONS

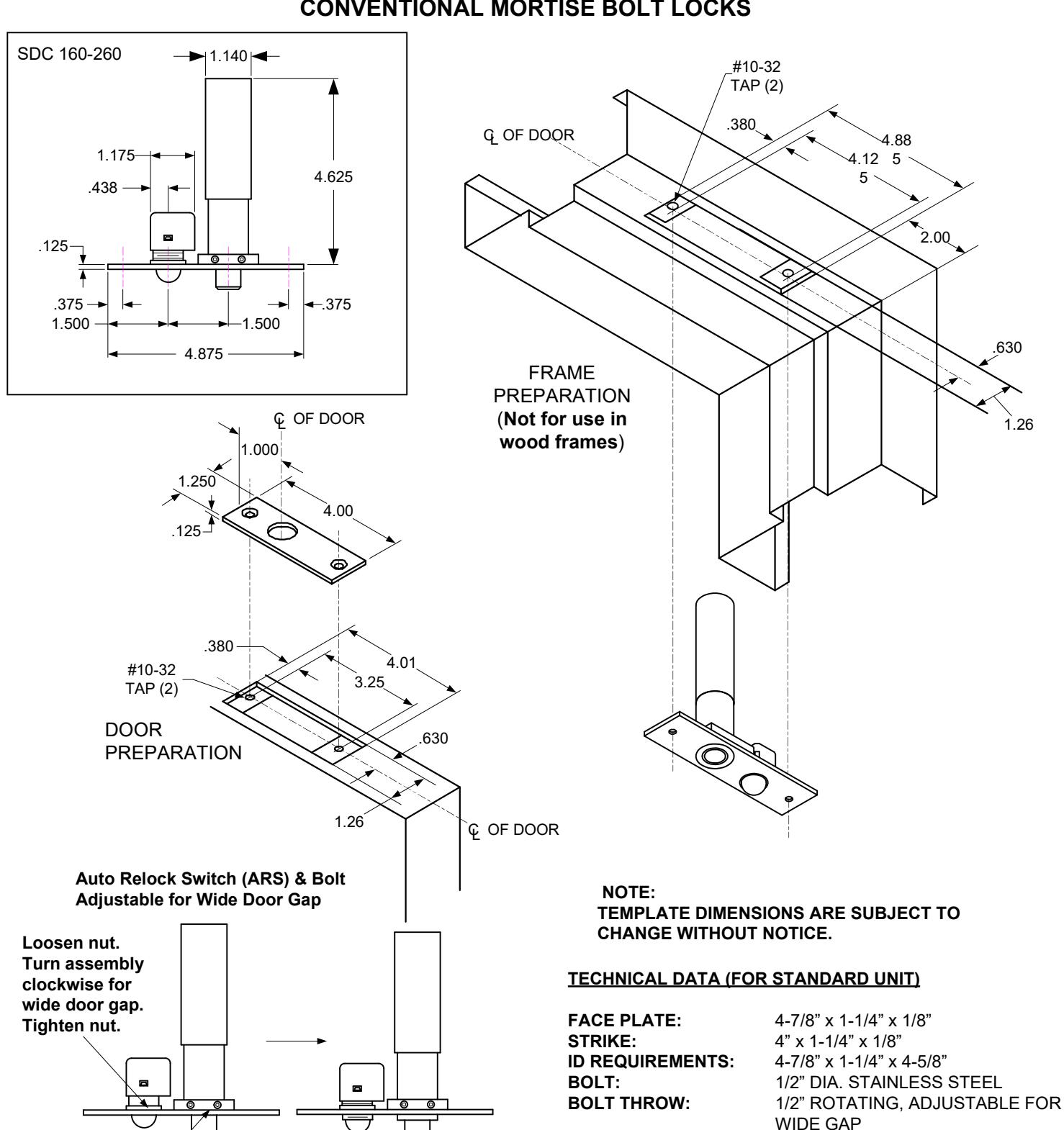

160/260 CONVENTIONAL MORTISE BOLT LOCKS

160 FAIL-SAFE:

SOLENOID:

260 FAIL-SECURE:

Any suggestions or comments to this instruction or product are welcome. Please contact us through our website or email engineer@sdcsecurity.com

LOCKED WHEN ENERGIZED

12/24 CONTINUOUS DUTY

AUTO RELOCK SWITCH: ADJUSTABLE BALL PLUNGER TYPE

UNLOCKED WHEN ENERGIZED

Loosen Set

Screws to

move Bolt

Chamber.

LOCK WIRING

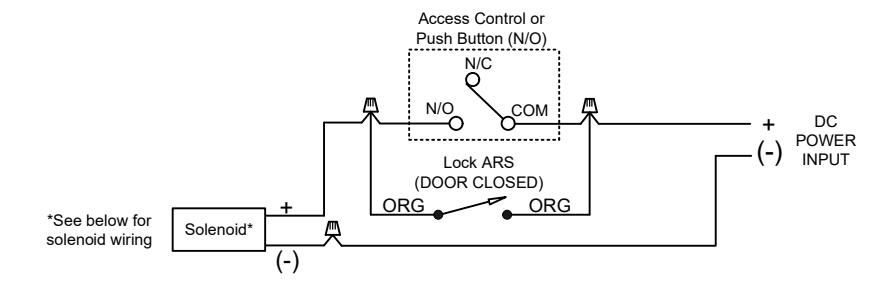

160 (Standard wiring):

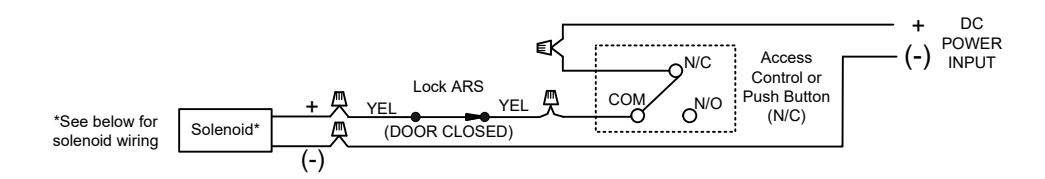

260 (Standard wiring):

Solenoid Voltage Configuration:

12VDC SOLENOID CONFIGURATION

ELECTRICAL DATA: Dual Voltage (110/210) 12VDC@ .9 Amp (max.)

24VDC@ .45 Amp (max.) Continuous Duty
