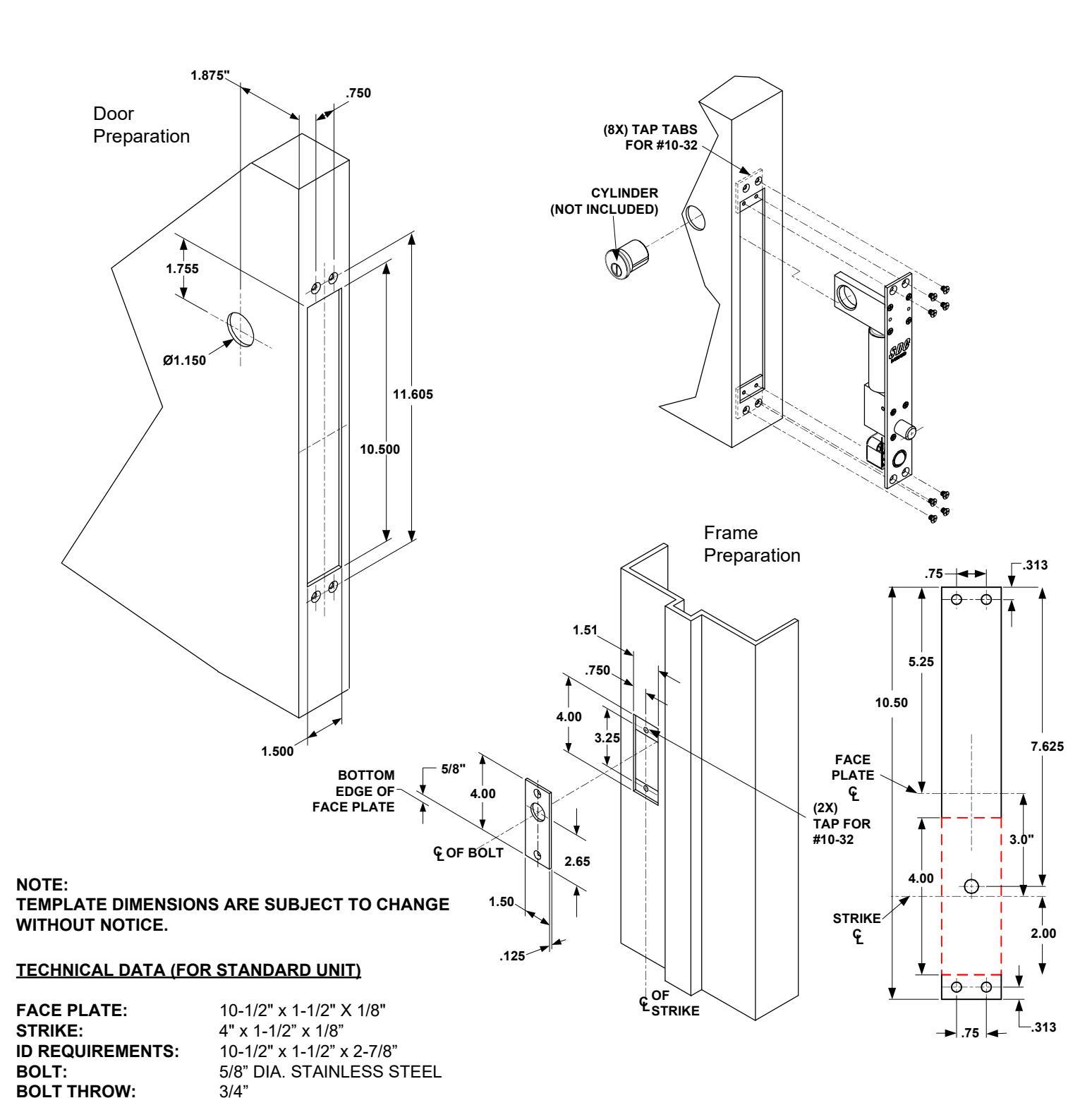

INSTALLATION INSTRUCTIONS 1291ADMR1 (1.875" BACKSET) BOLT LOCK MECHANICAL RELEASE
(DOOR MOUNT - SINGLE CYLINDER)
Any suggestions or comments to this instruction or product are welcome. Please contact us through our website or email engineer@sdcsecurity.com
1.875"
BACK SET:
LOCK WIRING

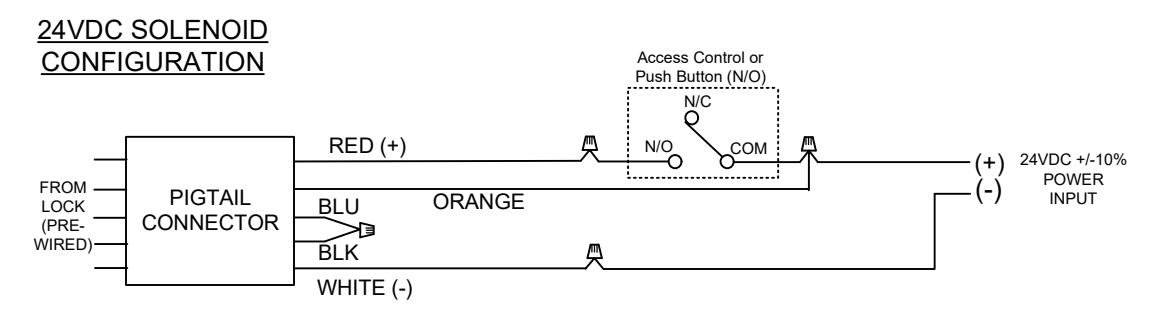

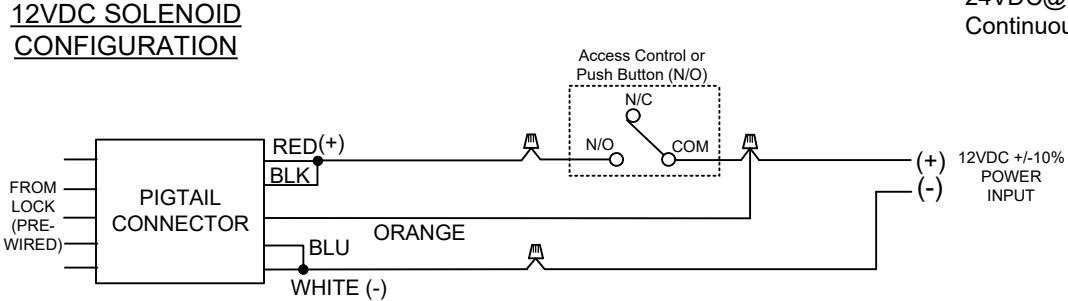

Select 24VDC OR 12VDC Configuration, and use provided pigtail connector:
ELECTRICAL DATA: Dual Voltage Solenoid 12VDC@ .9 mA (max.) 24VDC@ .45 mA (max.) Continuous Duty
| _ | OPTIONAL BOLT POSITION | SENSOR (BPS-MAGNETIC) | |
|---|---|---|---|
| В | Indicates bolt locked or unlocked | 5 Watt | • |
| OPTIONAL DOOR POSITION | SWITCH (DPS-MECHANICAL) | - | |
| D | Indicates door opened or closed | 4A @ 30VDC (Resistive) | • |
| YELLOW / RED WHITE / BLACK ORANGE / RED OPS DPS BPS | YELLOW / BLACK = N/O | loor closed BPS polarity shown with bolt retracted |
* When both options are ordered the Common is shared
