INSTALLATION INSTRUCTIONS 1291ADMR (.865" BACKSET)

BOLT LOCK MECHANICAL RELEASE (DOOR MOUNT - SINGLE CYLINDER)

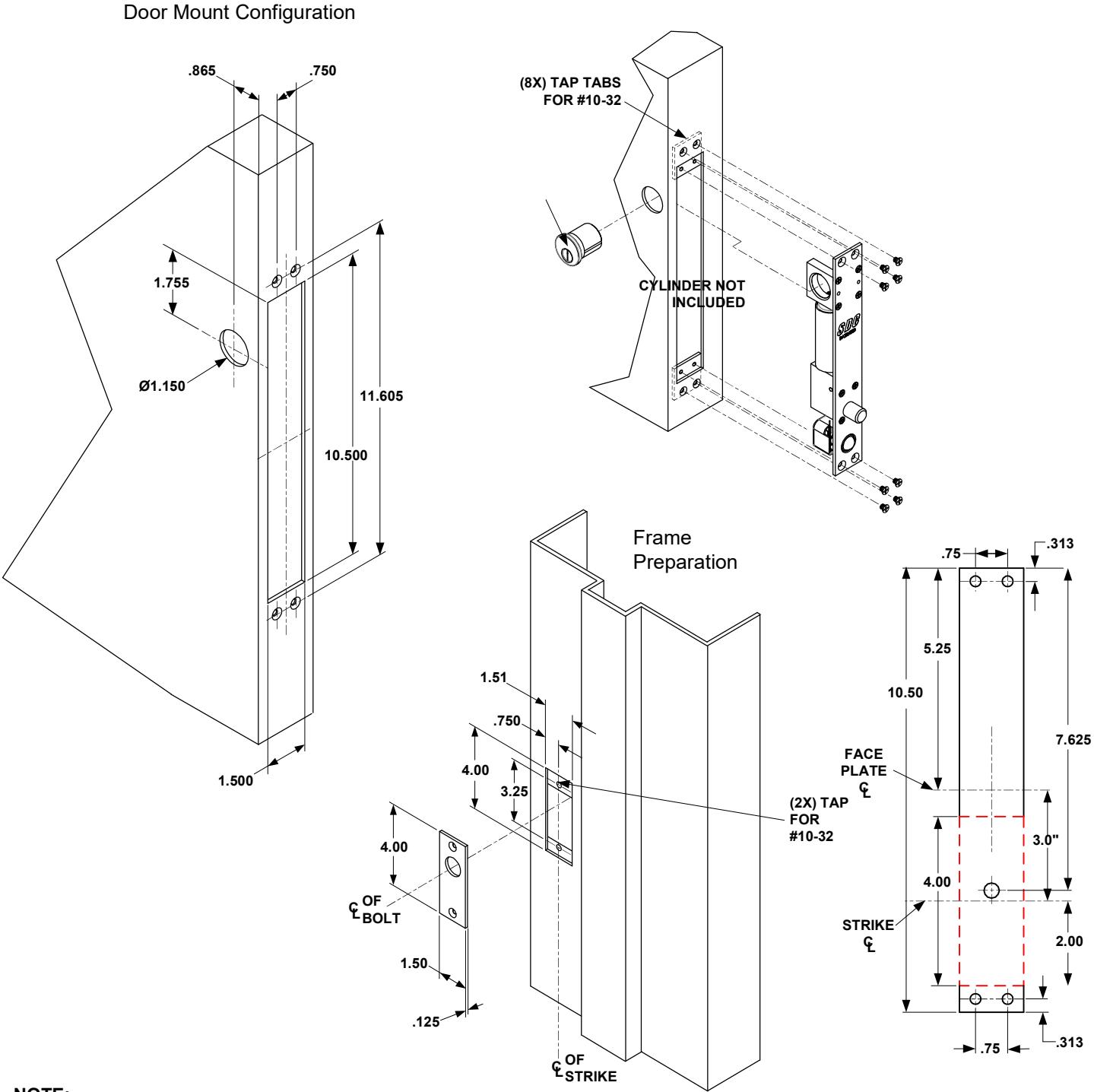

Aluminum Frame Mount Configuration

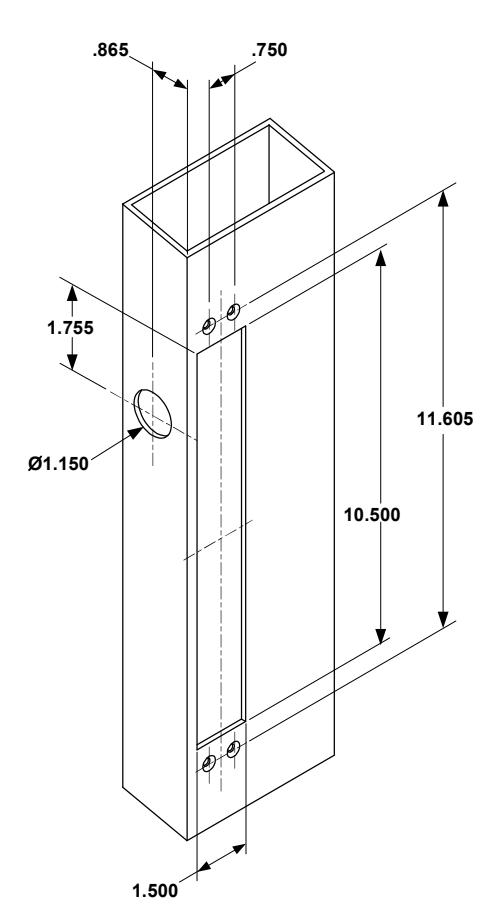

NOTE:

TEMPLATE DIMENSIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

TECHNICAL DATA (FOR STANDARD UNIT)

FACE PLATE: 10-1/2" x 1-1/2" X 1/8" STRIKE: 4" x 1-1/2" x 1/8" ID REQUIREMENTS: 10-1/2" x 1-1/2" x 1-3/4" BOLT: 5/8" DIA. STAINLESS STEEL

BOLT THROW: 3/4" BACK SET: .865"

TECHNICAL DATA (FOR STANDARD UNIT)

FACE PLATE: 10-1/2" x 1-1/2" X 1/8" STRIKE: 4" x 1-1/2" x 1/8" 10-1/2" x 1-1/2" x 1-3/4" ID REQUIREMENTS: BOLT: 5/8" DIA. STAINLESS STEEL

BOLT THROW: 3/4" BACK SET: .865"

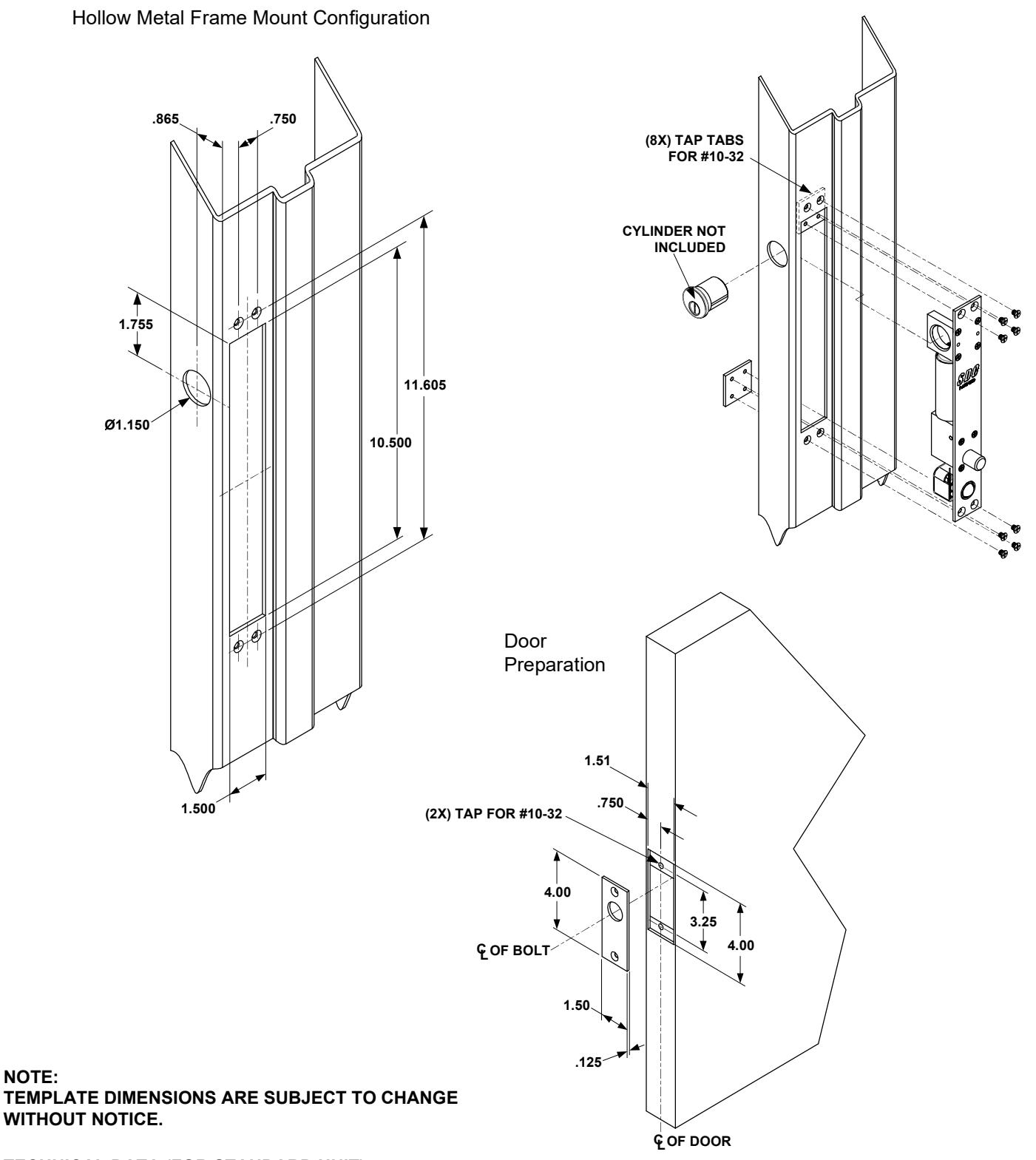

NOTE:

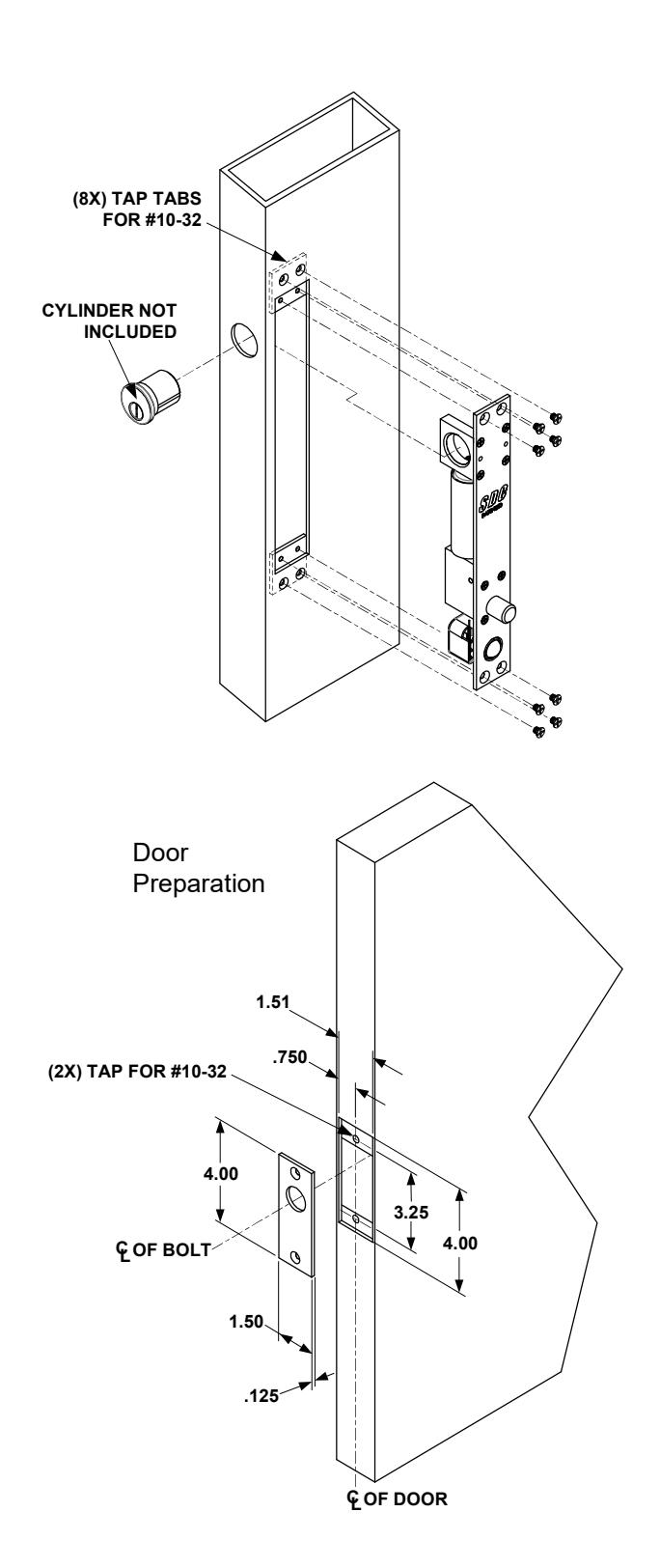

NOTE: TEMPLATE DIMENSIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

TECHNICAL DATA (FOR STANDARD UNIT)

FACE PLATE: 10-1/2" x 1-1/2" X 1/8" STRIKE: 4" x 1-1/2" x 1/8" ID REQUIREMENTS: 10-1/2" x 1-1/2" x 1-3/4" BOLT: 5/8" DIA. STAINLESS STEEL

BOLT THROW: 3/4" BACK SET: .865"

[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011

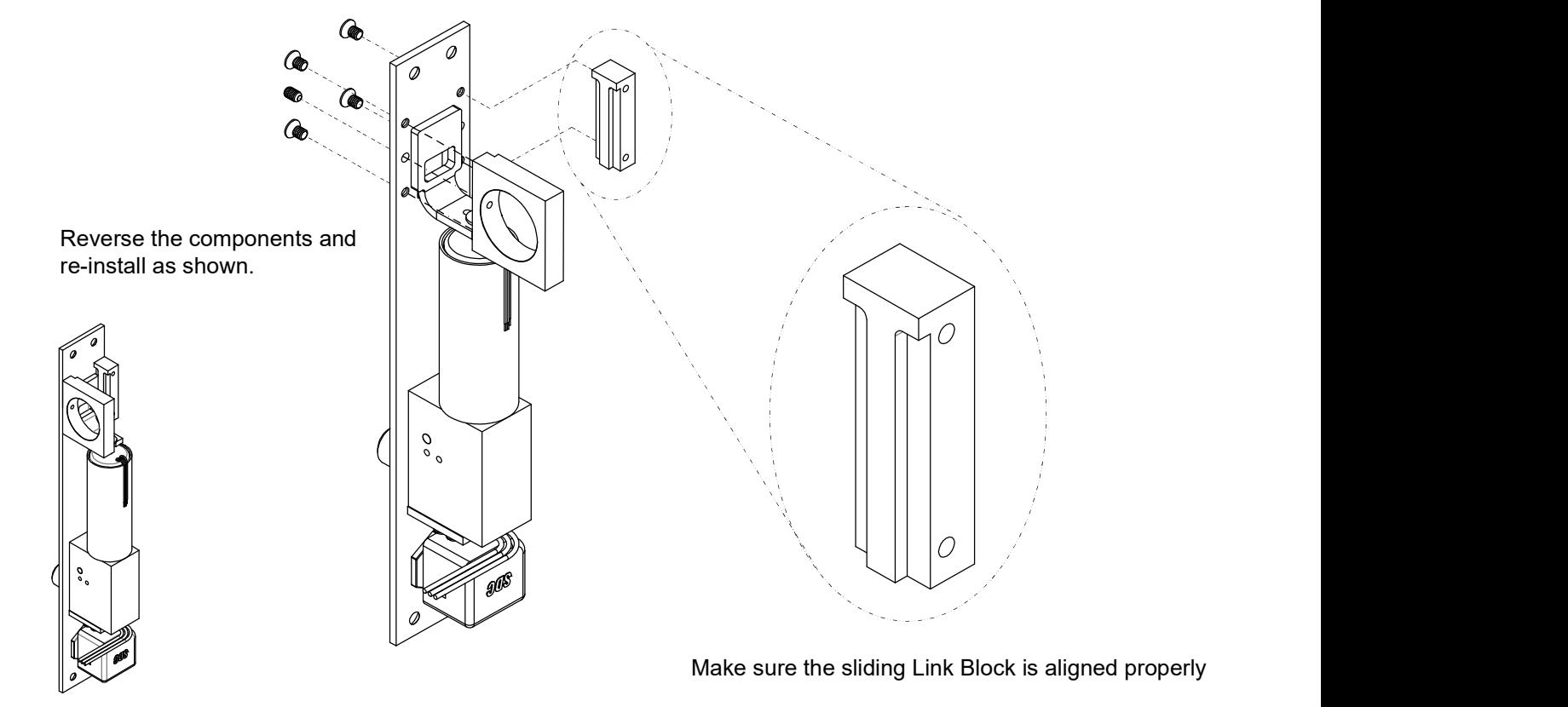

INSTRUCTIONS FOR REVERSING THE CYLINDER

LOCK WIRING

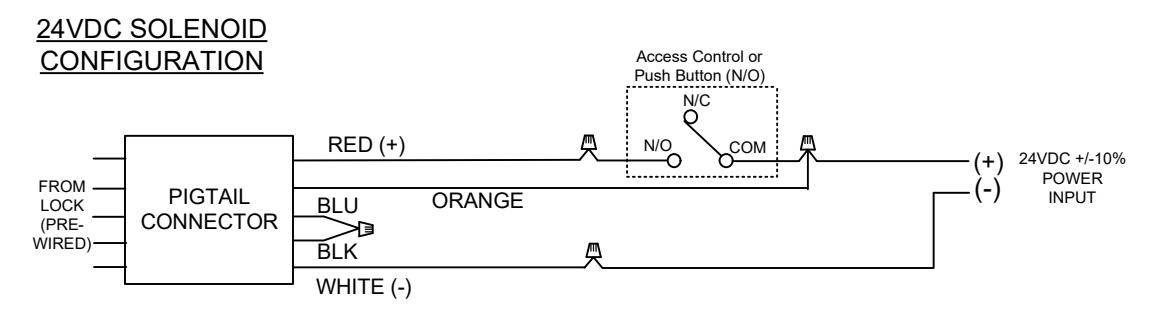

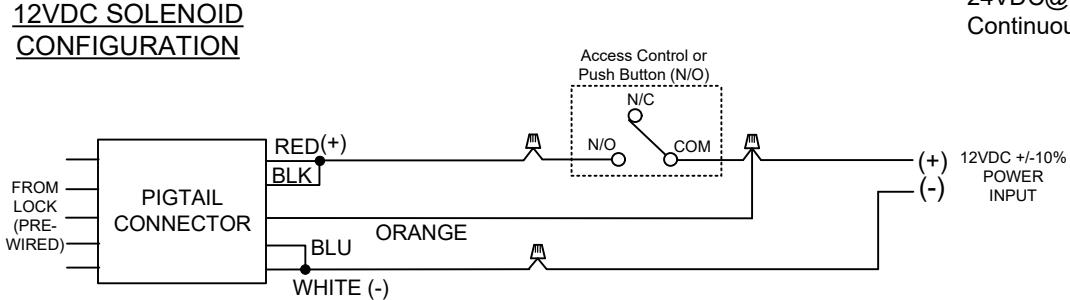

Select 24VDC OR 12VDC Configuration, and use provided pigtail connector:

ELECTRICAL DATA: Dual Voltage Solenoid 12VDC@ .9 mA (max.) 24VDC@ .45 mA (max.) Continuous Duty

	ODTIONAL DOLT DOCITION	CENCOD (DDC MACNETIC)	-
	OPTIONAL BOLT POSITION S Indicates bolt locked or unlocked	5 Watt	•
_	OPTIONAL DOOR POSITION		-
D	Indicates door opened or closed	4A @ 30VDC (Resistive)	•
	YELLOW / RED WHITE / BLACK ORANGE / RED DPS DPS BPS	YELLOW / BLACK = N/O	loor closed BPS polarity shown with bolt retracted

^* When both options are ordered the Common is shared
