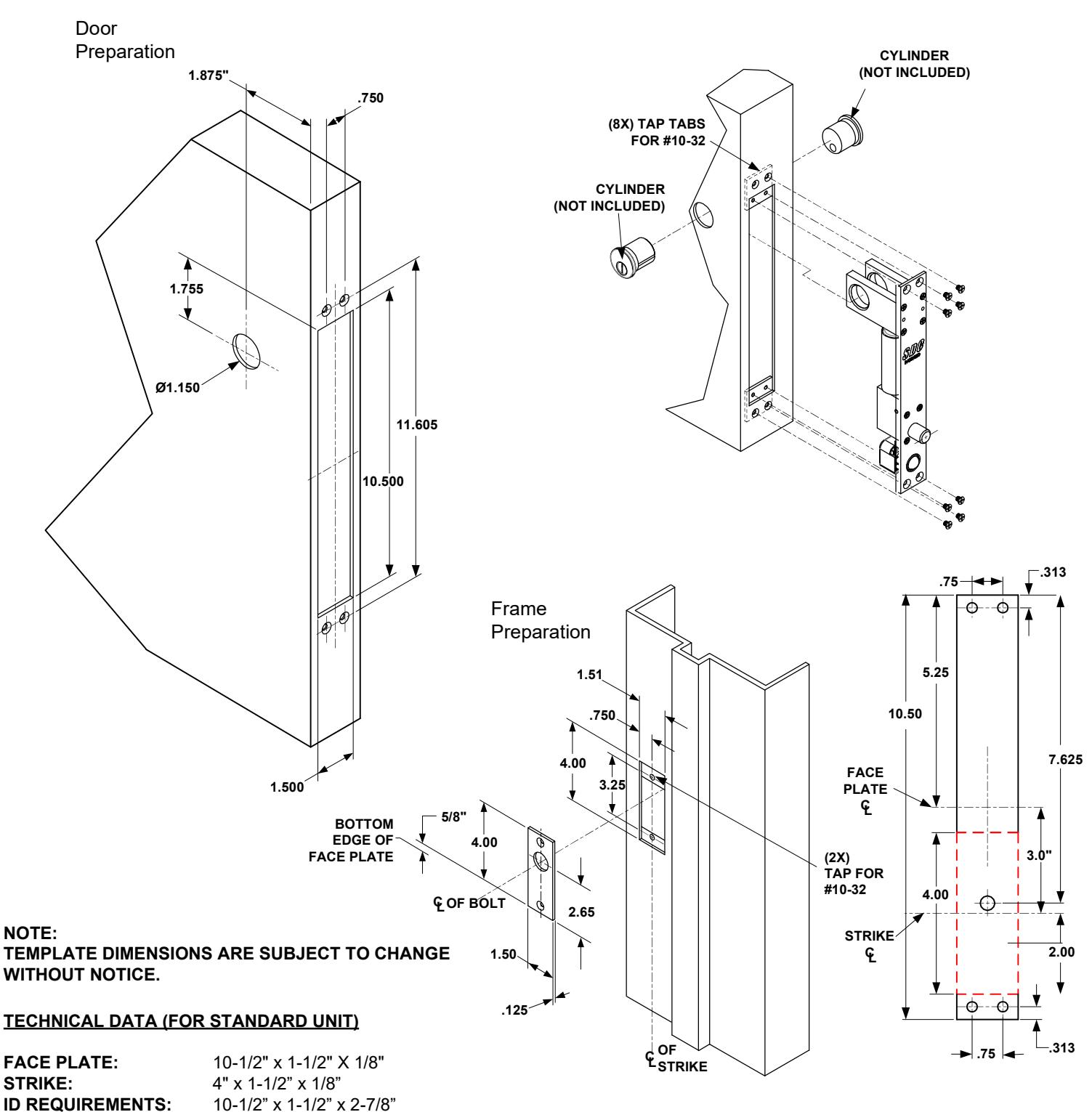

INSTALLATION INSTRUCTIONS 1291ADDMR1

(1.875" BACKSET)

BOLT LOCK MECHANICAL RELEASE (DOOR MOUNT – DOUBLE CYLINDER)

BOLT: 5/8" DIA. STAINLESS STEEL BOLT THROW: 3/4" 1.875"

LOCK WIRING

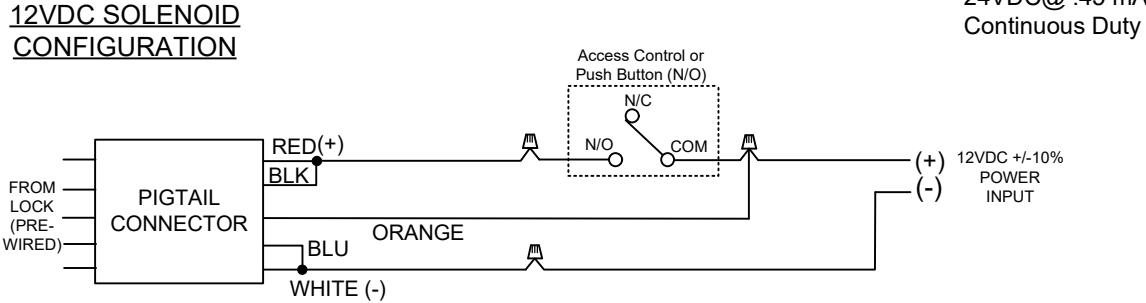

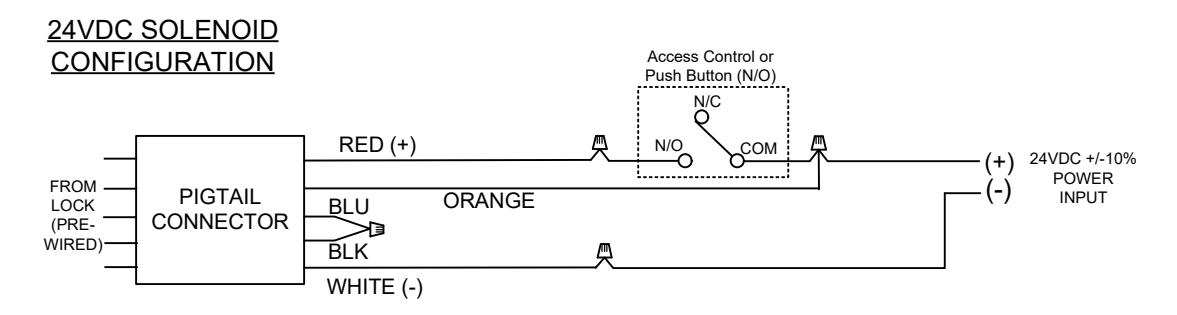

Select 24VDC OR 12VDC Configuration, and use provided pigtail connector:

ELECTRICAL DATA: Dual Voltage Solenoid 12VDC@ .9 mA (max.) 24VDC@ .45 mA (max.)

	OPTIONAL BOLT POSITION SE	:NSOR (BPS-MAGNETIC)	_
В	Indicates bolt locked or unlocked	5 Watt	_
	OPTIONAL DOOR POSITION SV	VITCH (DPS-MECHANICAL)	_
D	Indicates door opened or closed	4A @ 30VDC (Resistive)	_
	WHITE / BLACK ORANGE / RED	= N/O = COM DPS polarity shown with = N/C	door closed BPS polarity shown with bolt retracted

^* When both options are ordered the Common is shared
