INSTALLATION INSTRUCTIONS

110/210 CONVENTIONAL MORTISE BOLT LOCK

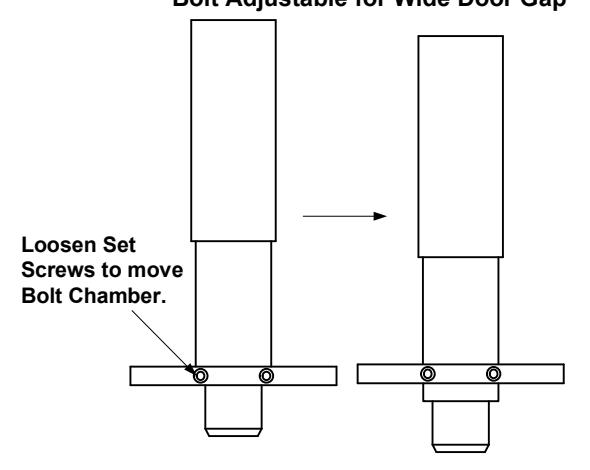

Bolt Adjustable for Wide Door Gap

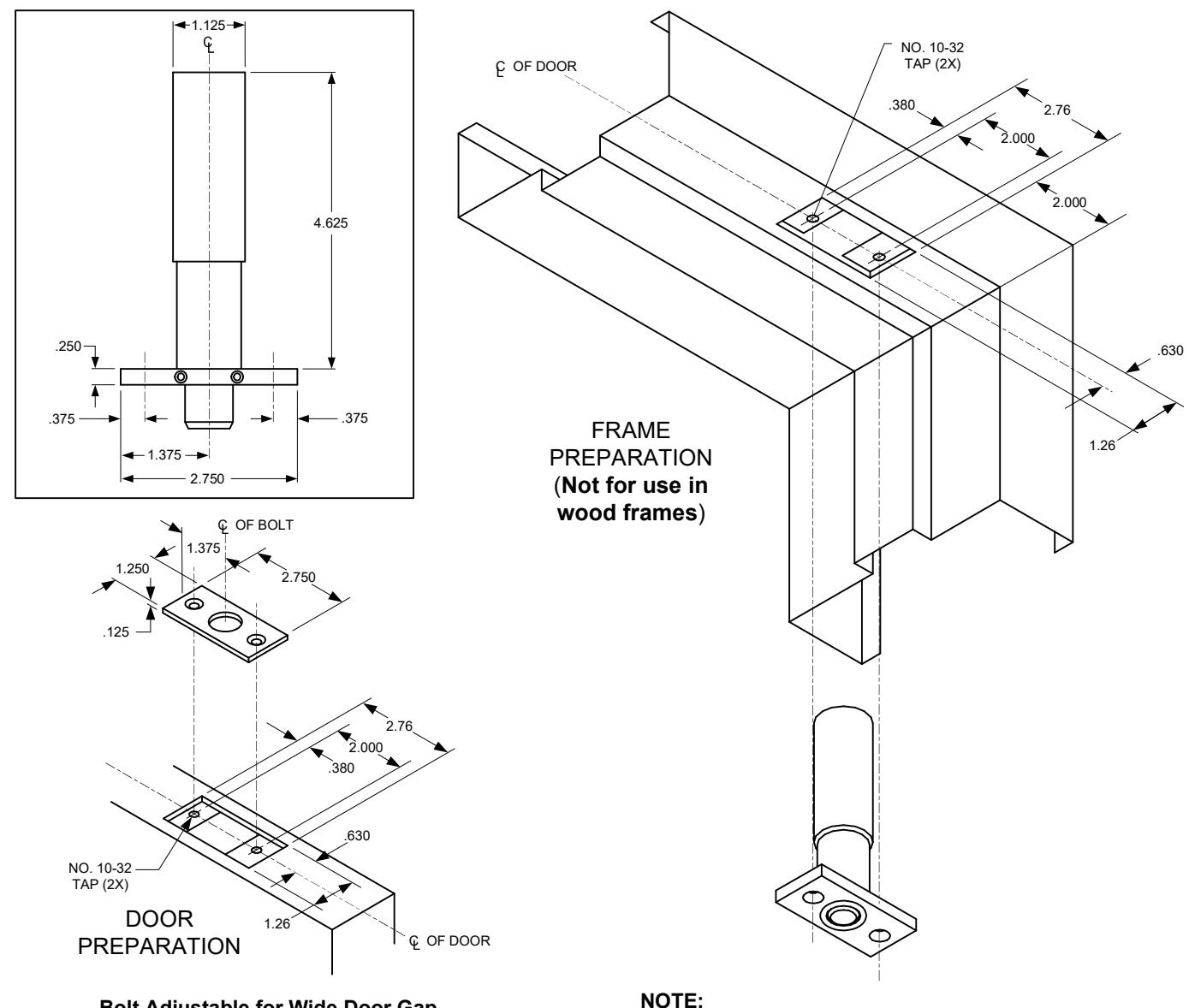

TEMPLATE DIMENSIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE

TECHNICAL DATA

FACE PLATE: 2-3/4" x 1-1/4" x 1/4" (69.85mm x 31.75mm x 6.35mm) STRIKE: 2-3/4" x 1-1/4" x 1/8" (69.85mm x 31.75mm x 3.18mm) 2-3/4" x 1/4" x 4-5/8" (69.85mm x 6.35mm x 117.48mm) ID REQUIREMENTS:

BOLT: 1/2" (12.70mm) DIA. STAINLESS STEEL BOLT THROW: 1/2" (12.70mm) ROTATING, ADJUSTABLE FOR WIDE

GAP

110 FAIL-SAFE: LOCKED WHEN ENERGIZED 210 FAIL-SECURE: UNLOCKED WHEN ENERGIZED SOLENOID:

CONTINUOUS DUTY

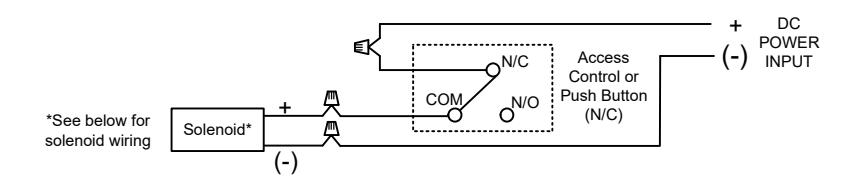

LOCK WIRING

110 (Standard wiring):

210 (Standard wiring): Access Control or Push Button (N/O) N/C N/O Solenoid* Solenoid* Solenoid* Access Control or Push Button (N/O) N/C N/O COM Solenoid* Solenoid*

Solenoid Voltage Configuration:

24VDC SOLENOID CONFIGURATION

12VDC SOLENOID CONFIGURATION

ELECTRICAL DATA: Dual Voltage (110/210) 12VDC@ .9 Amp 24VDC@ .45 Amp Continuous Duty
