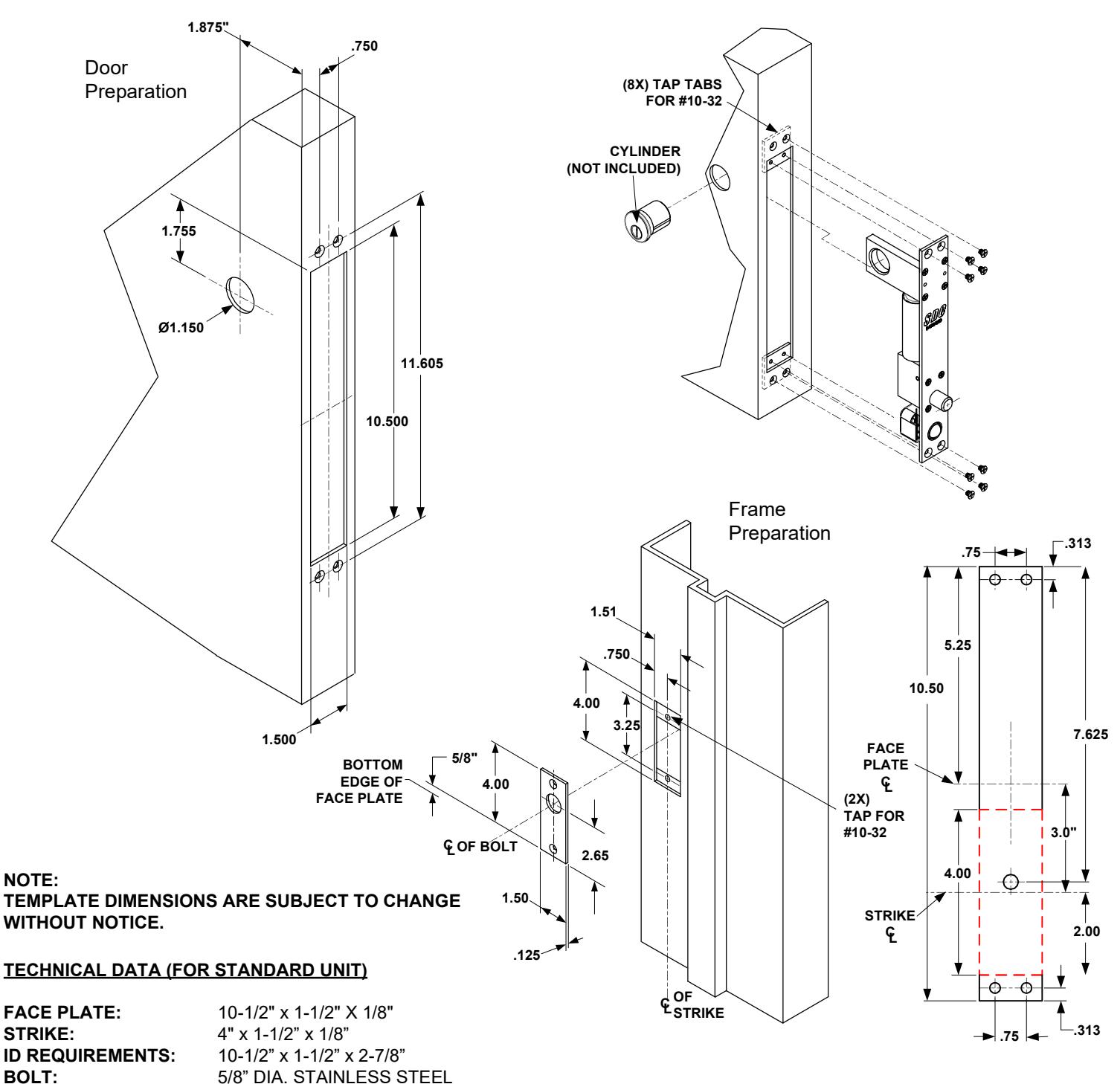

INSTALLATION INSTRUCTIONS 1091ADMR1 (1.875 BACKSET) BOLT LOCK MECHANICAL RELEASE (DOOR MOUNT - SINGLE CYLINDER)
BOLT: 5/8" DIA. STAINLES: 3/4" BACK SET: 1.875"
LOCK WIRING

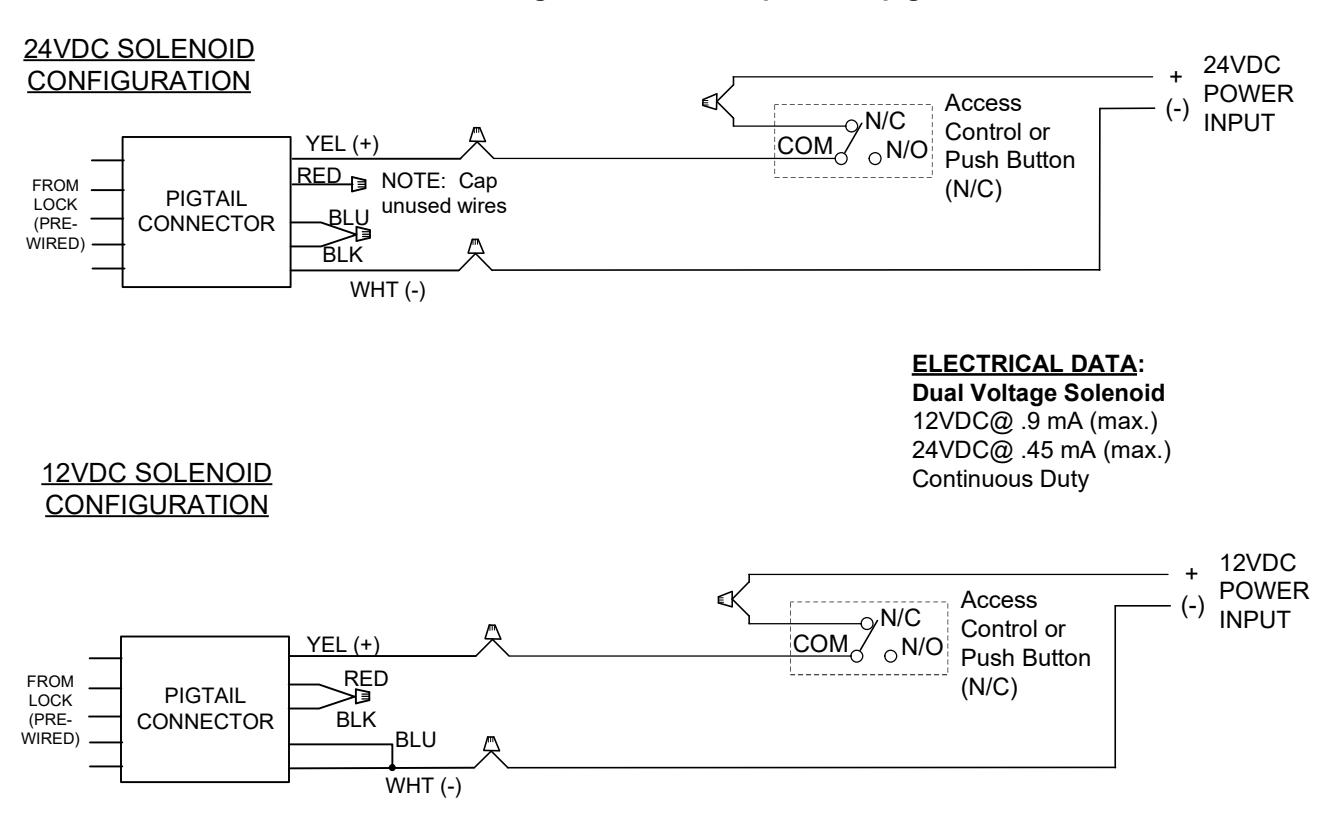

Select 24VDC OR 12VDC Configuration, and use provided pigtail connector:

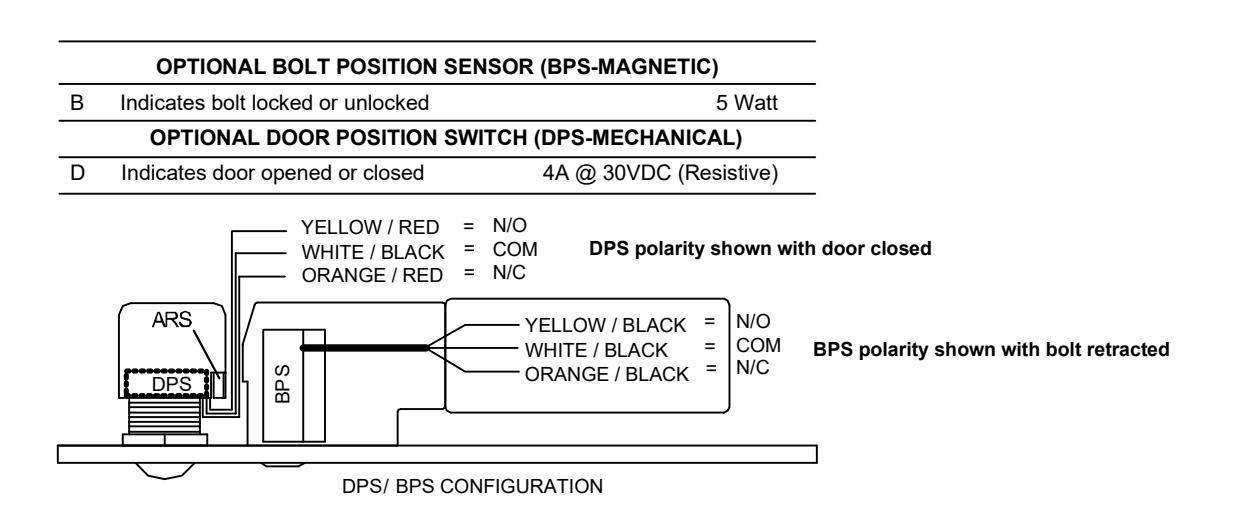

*When both options are ordered the Common is shared
