INSTALLATION INSTRUCTIONS

1091ADMR (.865" BACKSET) BOLT LOCK MECHANICAL RELEASE (DOOR MOUNT – SINGLE CYLINDER)

ALUMINUM FRAME MOUNT CONFIGURATION

1.51 (2X) TAP FOR #10-32 4.00 3.25 4.00 4.00

€ OF DOOR

1.50

.125

NOTE:

TEMPLATE DIMENSIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

TECHNICAL DATA (FOR STANDARD UNIT)

FACE PLATE: 10-1/2" x 1-1/2" X 1/8" STRIKE: 4" x 1-1/2" x 1/8" ID REQUIREMENTS: 10-1/2" x 1-1/2" x 1-3/4" BOLT: 5/8" DIA. STAINLESS STEEL

BOLT THROW: 3/4" BACK SET: .865"

SECURITY DOOR CONTROLS • WWW.SDCSECURITY.COM

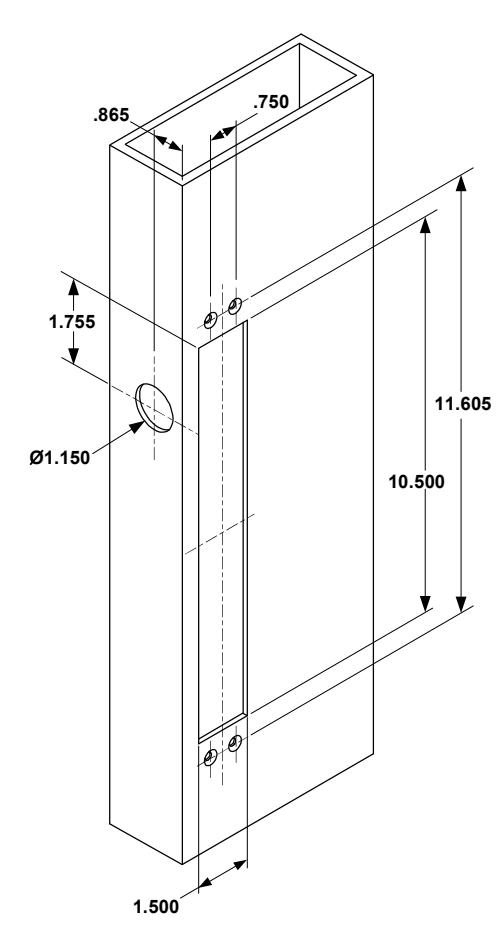

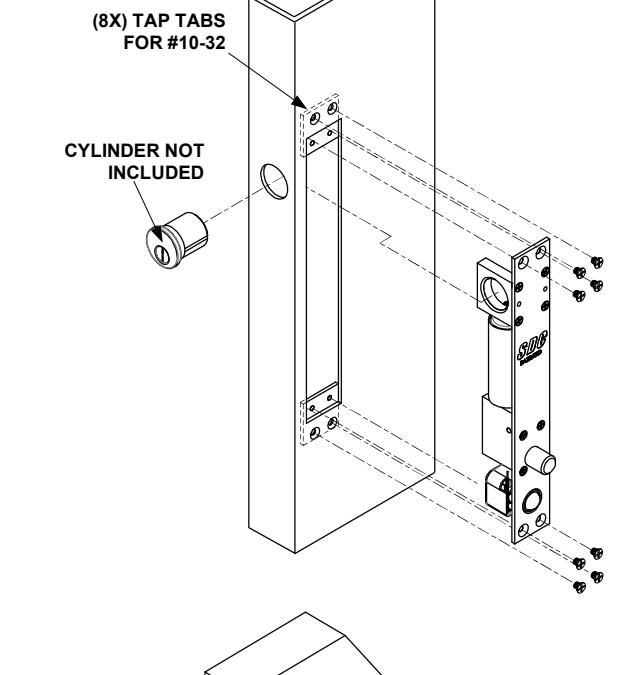

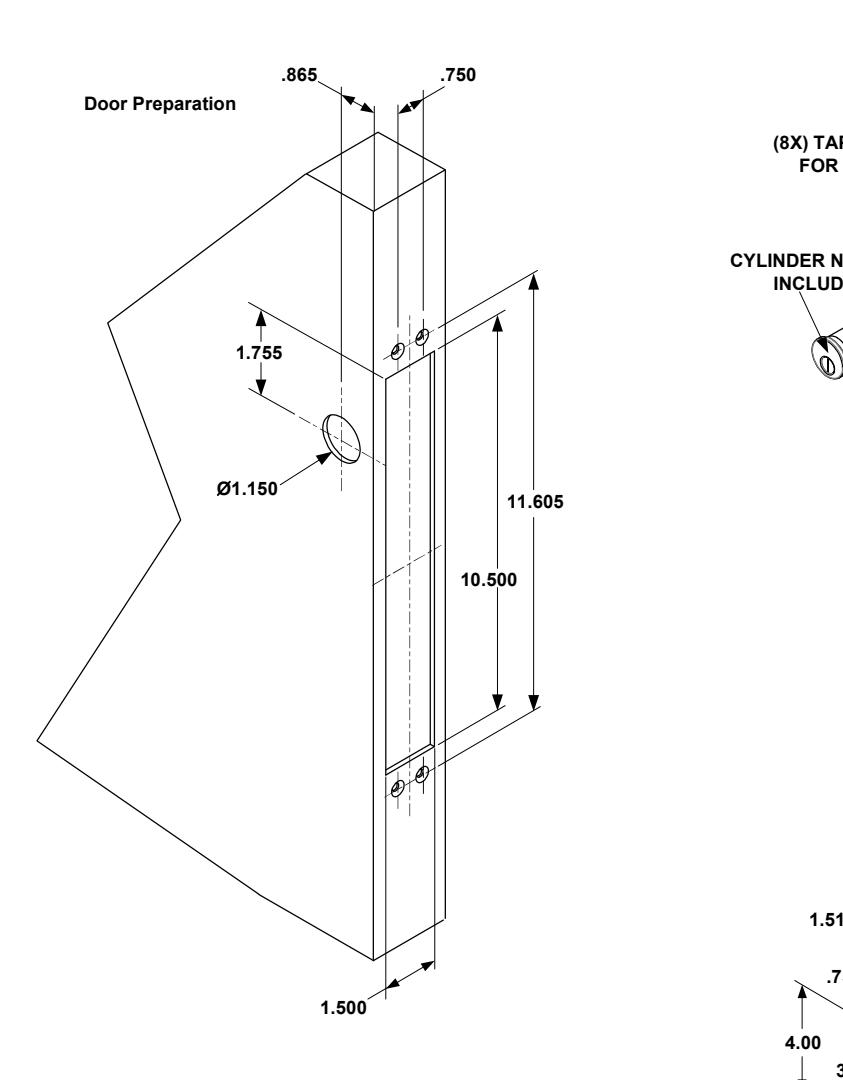

HOLLOW METAL MOUNT CONFIGURATION (8X) TAP TABS .750 .865 FOR #10-32 CYLINDER NOT INCLUDED 1.755 11.605 Ø1.150 10.500 Door Preparation 1.51 5.25 .750 (2X) TAP FOR #10-32 10.50

4.00

1.50

.125

€ OF DOOR

မှ OF BOLT

7.625

2.00

3.0

FACE

PLATE

STRIKE

Æ

4.00

NOTE:

TEMPLATE DIMENSIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

TECHNICAL DATA (FOR STANDARD UNIT)

FACE PLATE: 10-1/2" x 1-1/2" X 1/8" STRIKE: 4" x 1-1/2" x 1/8" ID REQUIREMENTS: 10-1/2" x 1-1/2" x 1-3/4" BOLT: 5/8" DIA. STAINLESS STEEL

BOLT THROW: 3/4" BACK SET: .865"

DOOR MOUNT CONFIGURATION

NOTE: TEMPLATE DIMENSIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

TECHNICAL DATA (FOR STANDARD UNIT)

FACE PLATE: 10-1/2" x 1-1/2" X 1/8" STRIKE: 4" x 1-1/2" x 1/8" ID REQUIREMENTS: 10-1/2" x 1-1/2" x 1-3/4" BOLT: 5/8" DIA. STAINLESS STEEL

BOLT THROW: 3/4" BACK SET: .865"

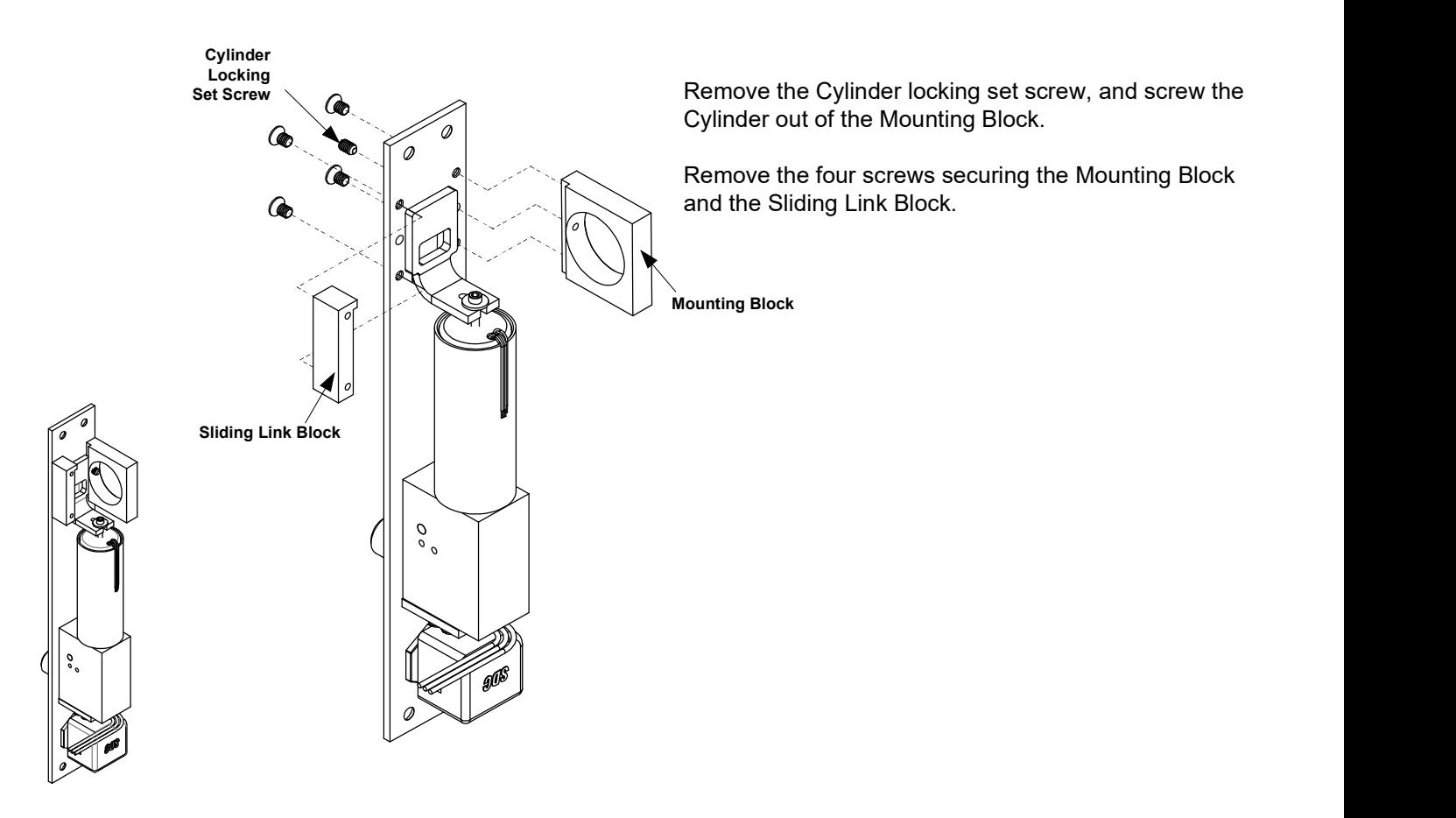

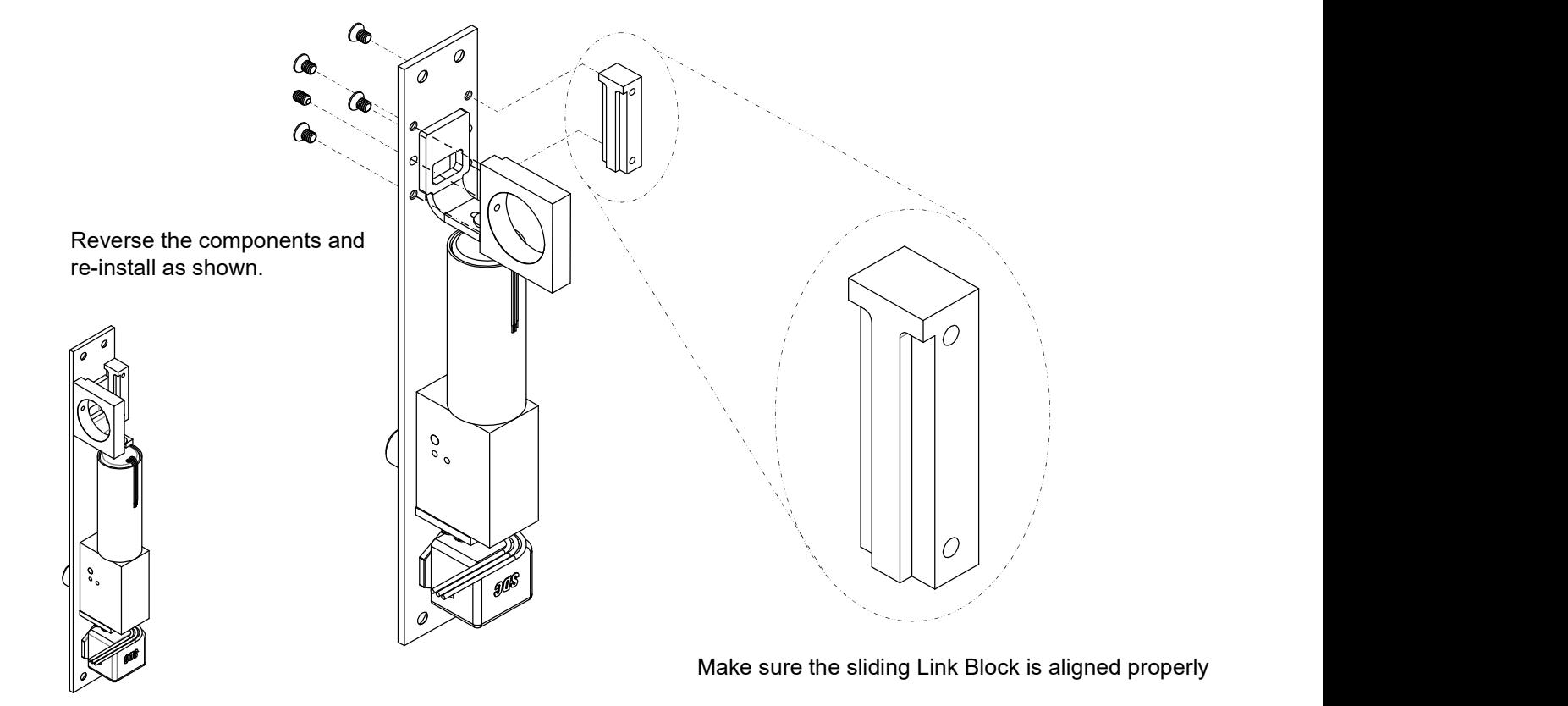

INSTRUCTIONS FOR REVERSING THE CYLINDER

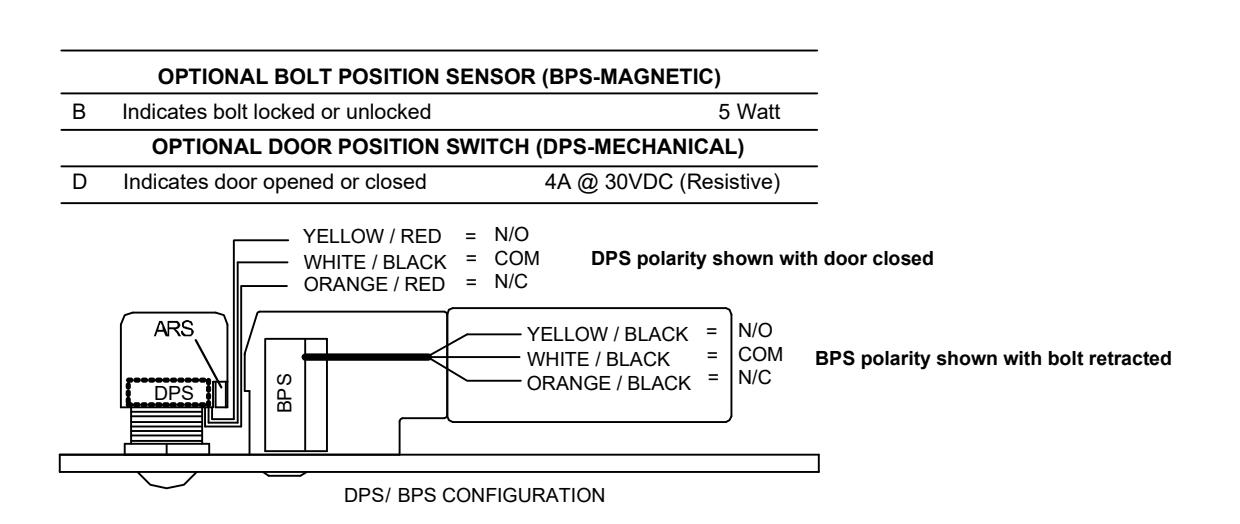

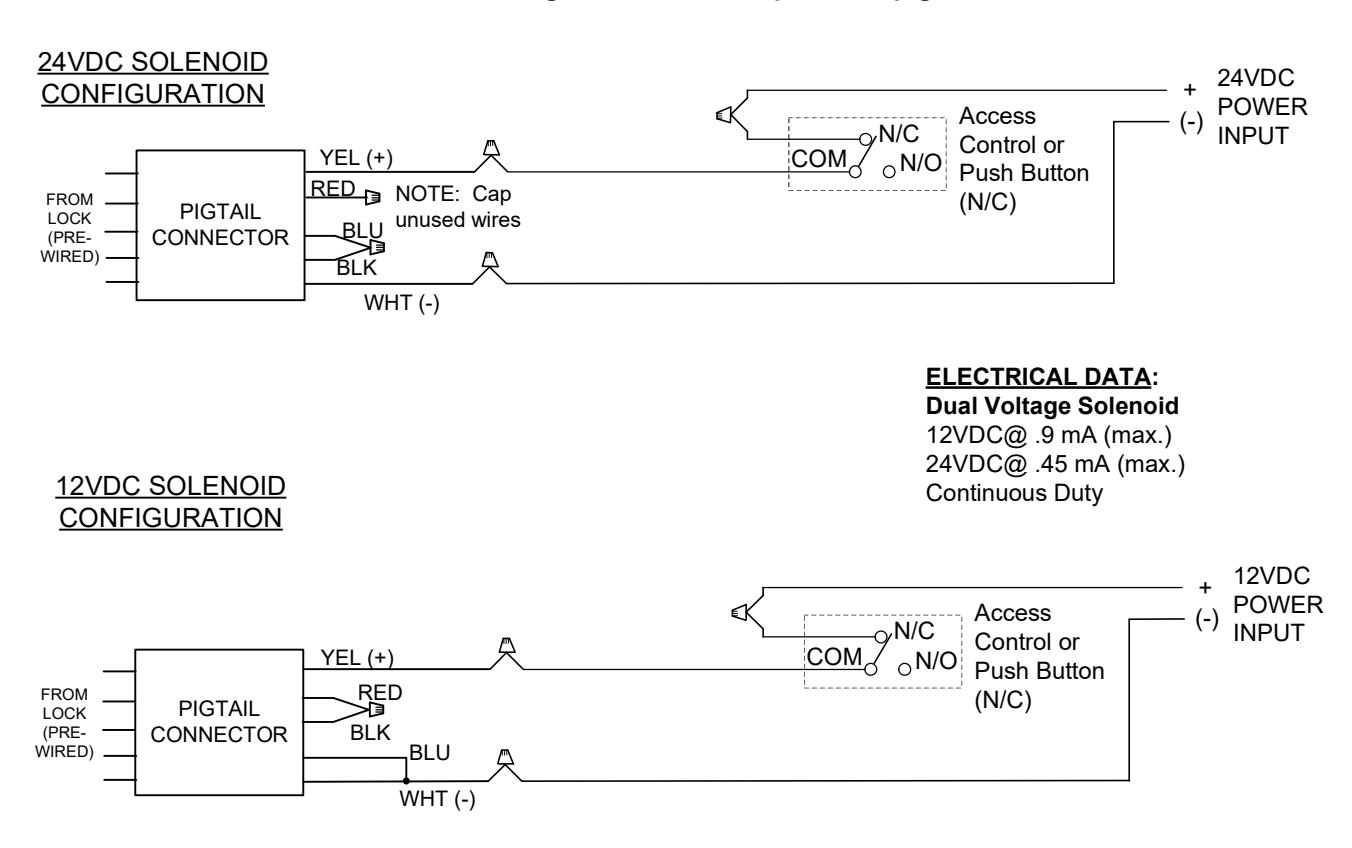

LOCK WIRING

Select 24VDC OR 12VDC Configuration, and use provided pigtail connector:

^* When both options are ordered the Common is shared
