INSTALLATION INSTRUCTIONS 1091ADDMR1 (1.875 BACKSET) BOLT LOCK MECHANICAL RELEASE (DOOR MOUNT - DOUBLE CYLINDER)

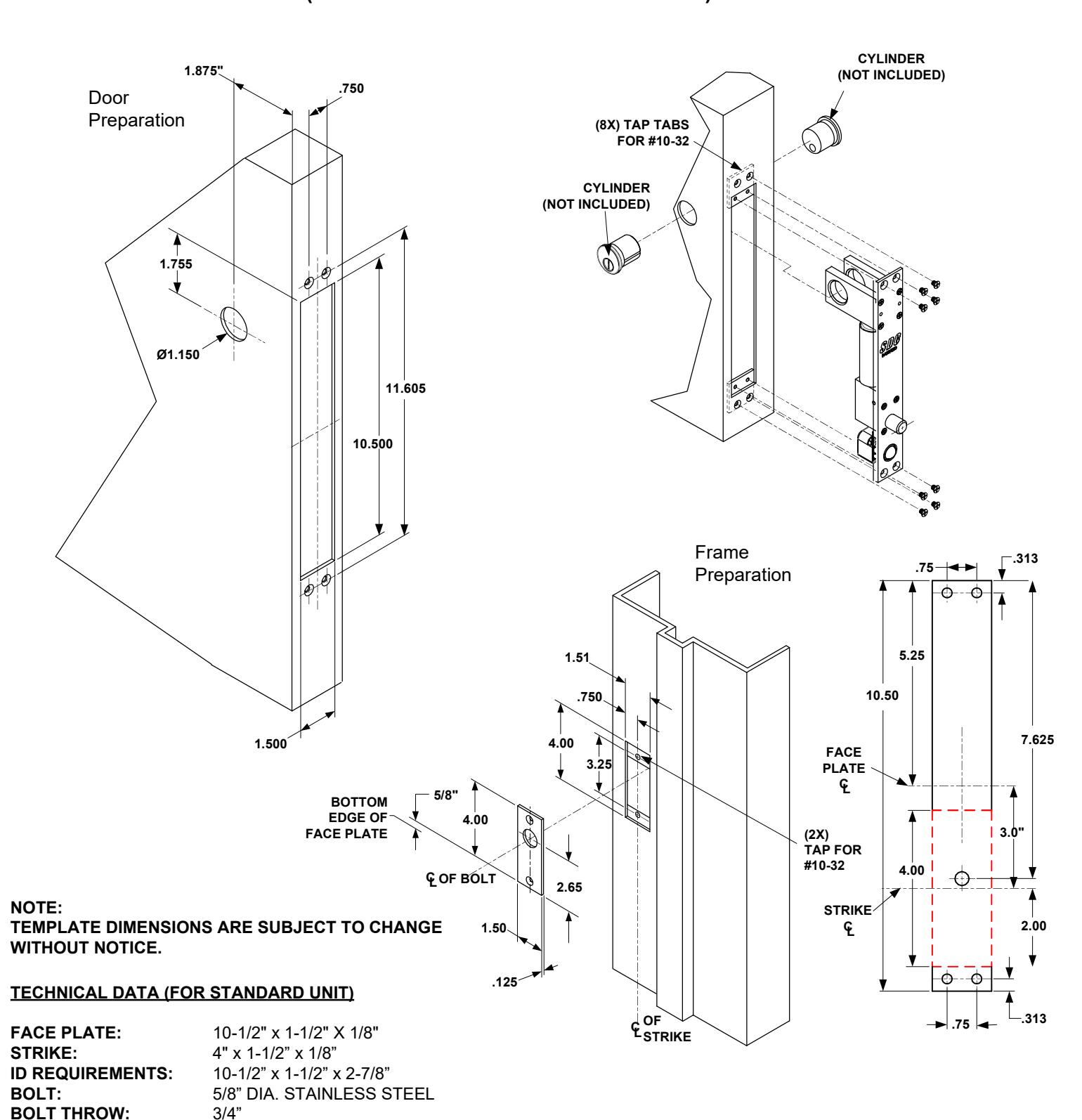

BACK SET: 1.875"

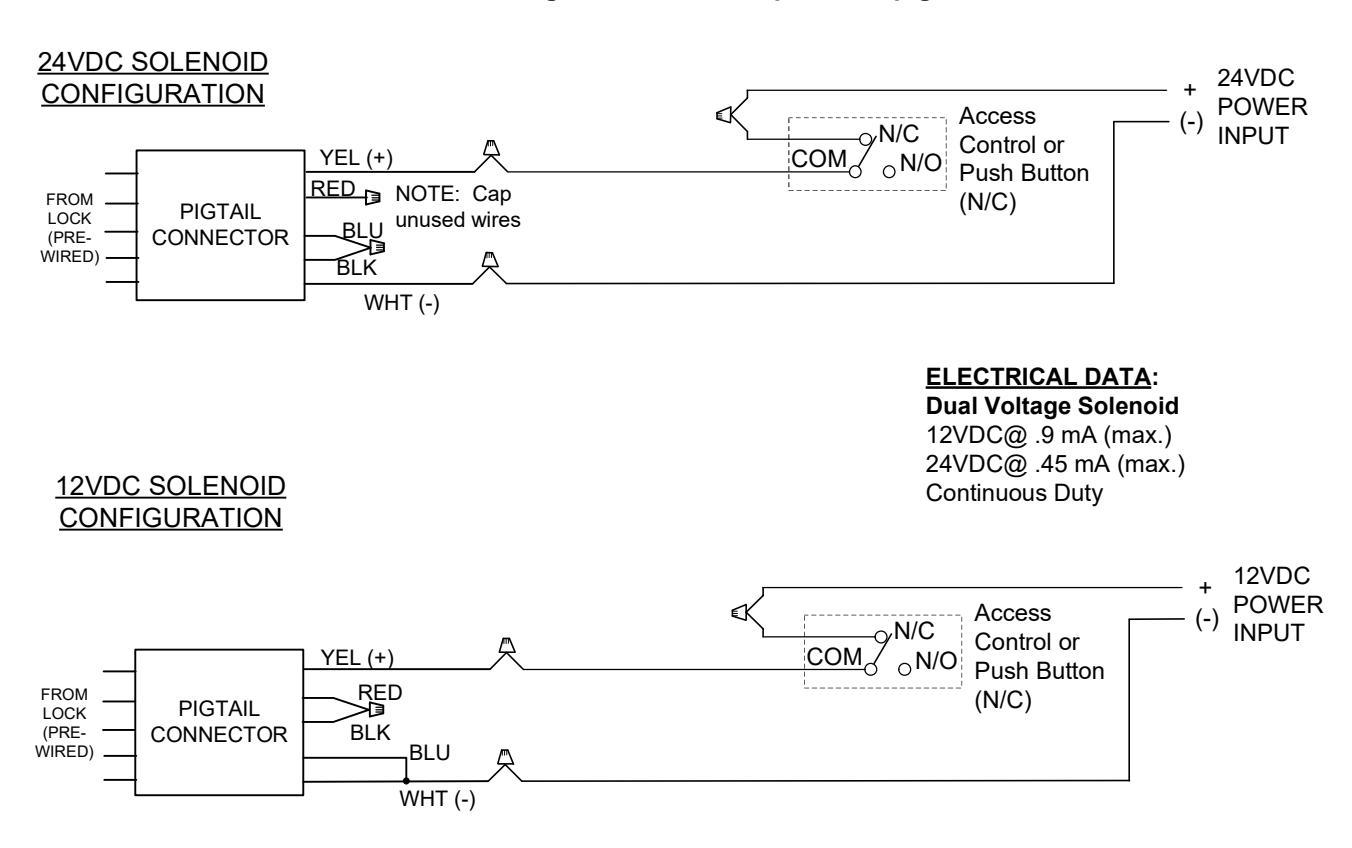

LOCK WIRING
Select 24VDC OR 12VDC Configuration, and use provided pigtail connector:
| ODTIONAL DOLT DOSITION SEA | JEOD (PDS MACNETIC) | _ | |
|---|---|---|---|
| В | Indicates bolt locked or unlocked | 5 Watt | _ |
| OPTIONAL DOOR POSITION SWI | ITCH (DPS-MECHANICAL) | _ | |
| D | Indicates door opened or closed | 4A @ 30VDC (Resistive) | _ |
| WHITE / BLACK = | N/O COM DPS polarity shown with N/C — YELLOW / BLACK = N/O COM N/C — WHITE / BLACK = N/C ORANGE / BLACK = N/C | th door closed BPS polarity shown with bolt retracted |
* When both options are ordered the Common is shared
