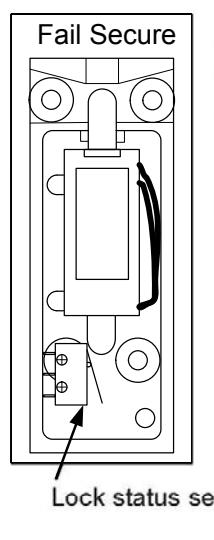

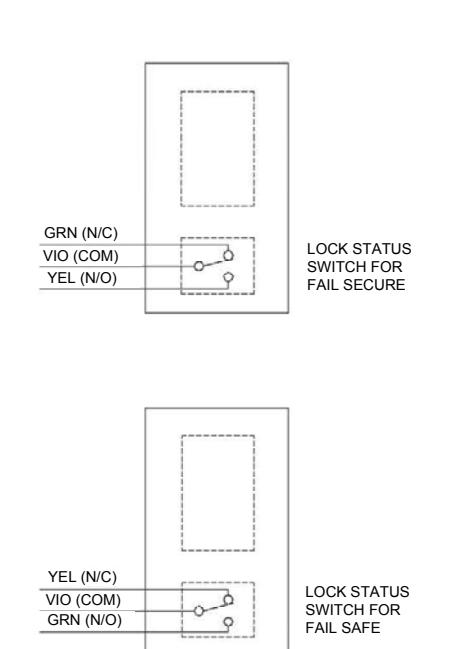

Fail Secure Fail Safe

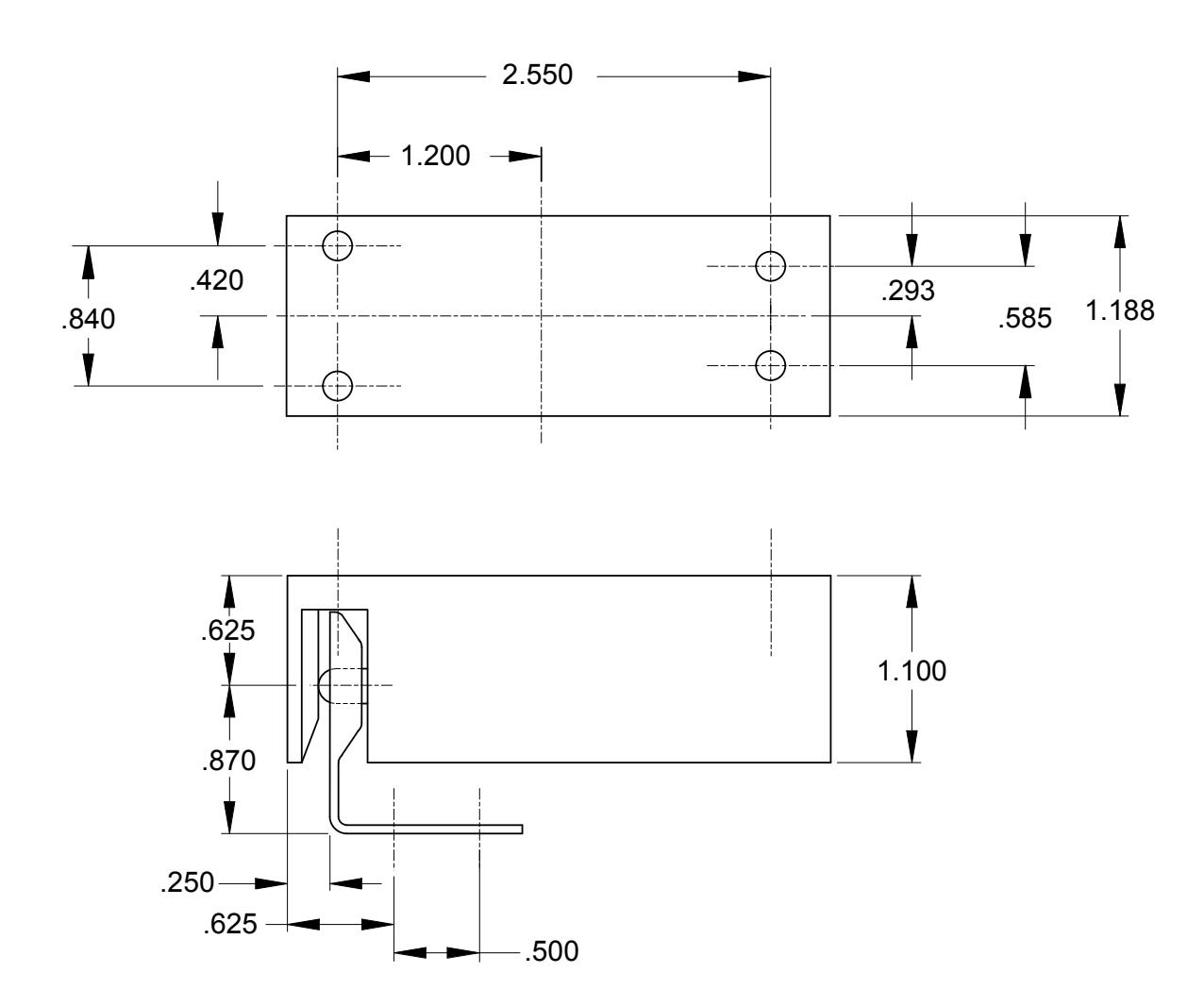

290 CABINET LOCK MOUNTING TEMPLATE

DRAWING MAY NOT BE TO SCALE. USE DIMENSIONAL CALL-OUTS ONLY.
