INSTRUCTIONS FOR

PUSH / PULL Markers for 7800 PT Paddle Trim

(Patent Pending)

FOR INSTALLATION ASSISTANCE CALL SARGENT AT 1-800-727-5477 / www.sargentlock.com

Install markers before mounting paddles to door

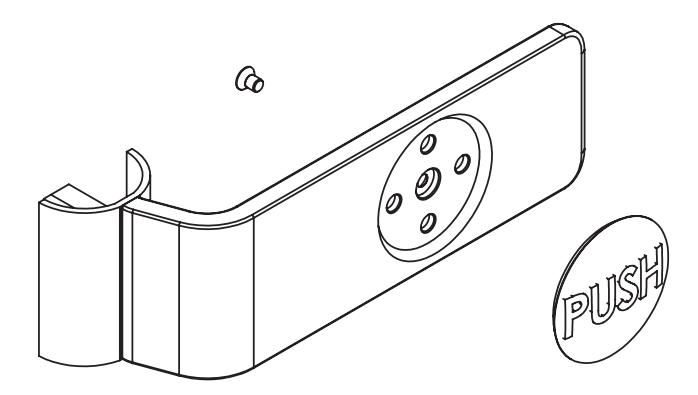

• Secure "PUSH" marker on the push side of the door using screw supplied.
• Secure "PULL" marker on the pull side of the door using screw supplied.

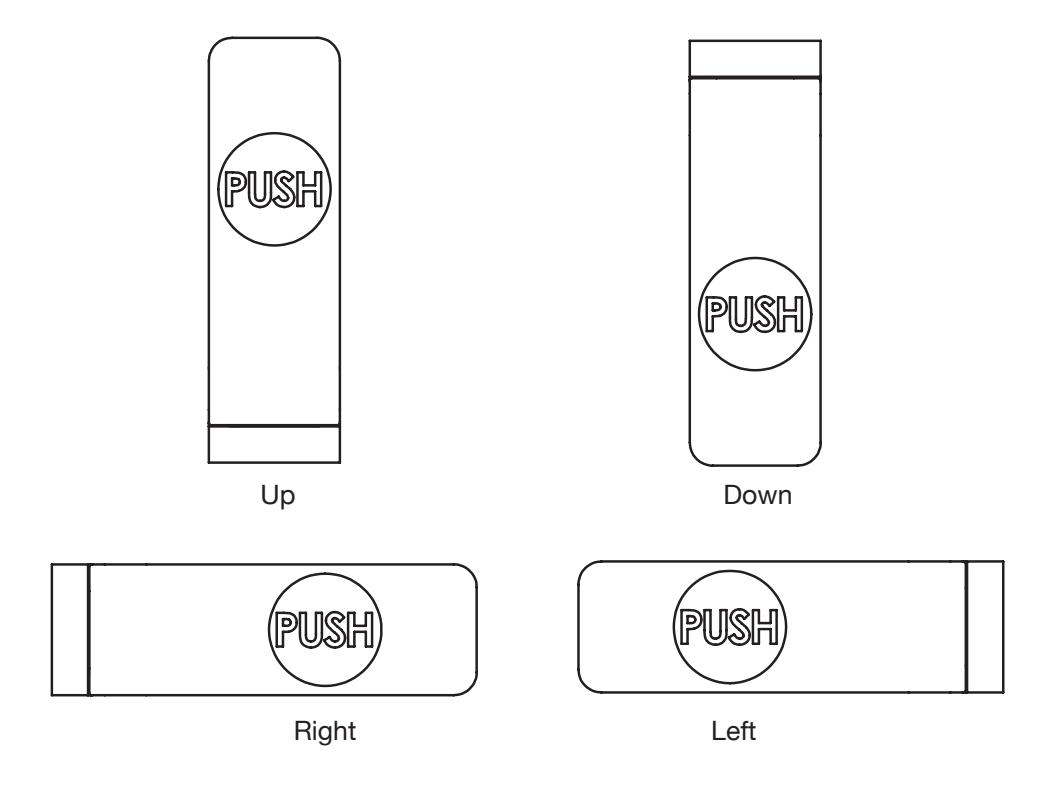

Markers can be installed in any of the four available paddle orientations:
