216TX SERIES INFRARED WIRELESS TOUCHLESS
DOOR ACTIVATOR SWITCHES
PRODUCT DESCRIPTION
The 216TX Series wireless touchless switches are infrared devices designed to activate full and low energy automatic doors. The built-in wireless transmitter offers the added benefit of easy installation, requiring no wiring to the switch.
The hands free operation of the 216TX makes them ideal for ADA applications and locations where hygiene is important such as restrooms, health care facilities or cleanrooms. The 216TX is microprocessor controlled, allowing for superior operation in a smaller unit.
The 216TX has a 4 1/2" stainless steel faceplate and comes installed in the 1020 box complete with a transmitter.
- ADA Compliant Hands-Free, Germ-Free Operation
- Microprocessor-ControlledActive Infrared
- Digital Circuit Design
- Wireless Transmitter Features ClearPath<sup>™</sup> Technology With Three User-selectable Frequency Settings (300 MHz, 390 MHz,HDRC<sup>™</sup>)
- FCC Licenses For All Three Frequency Settings
- SignalLock™ Guarantees Signal Transmission When Presencels Detected
- Integrated Signal Radiating Antenna Boosts Signal Strength
- Compatible With Most 300 MHz, 390 MHz, and ClearPath™ CP/TX Receivers
SPECIFICATIONS
| Detection Method | Amplitude modulated, coded carrier active infrared |
|---|---|
| Avg. Radiated Power | Less than 5 mW/cm 2 |
| Input Voltage |
216: 3.3 Volts DC Coin Cell
Battery (CR2032) TX: 9 Volt DC Battery |
| Response Time | <300m Seconds |
| Operating Distance | ±1 - 5 inches |
| Unit Size | 4 3/4"W x 4 3/4"H x 2 1/4"D |
| Mounting Options | Includes wall mount box |
| Face Plate Sizes | 4 1/2" square |
| Face Plate Finishes |
Standard: Brushed Stainless Steel For Special Finishes &
Legends, Contact Factory |
| Temperature | -4°F to 140°F (-20°C to 60°C) |
216TX-TG
American National Standards Institute (ANSI) - Building Hardware Manufacturers Association (BHMA) - ANSI/BHMA A156.10 & A156.19.
216TX-HT
TOUCH FREE • GERM FREE

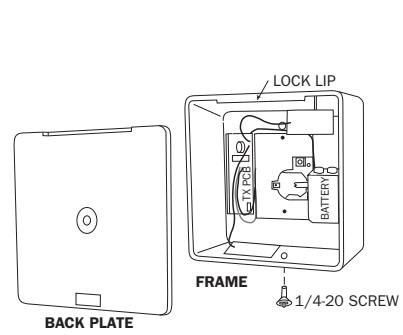

FRAME PRAME 1/4-20 SCREW
