Rescue hardware
Overview
Ives rescue hardware was specifically designed to address a problem often encountered by healthcare professionals—a blocked doorway caused by an incapacitated patient.
Used in conjunction with center hung pivots, rescue hardware allows a bi-directional door swing in emergency situations. When a patient becomes trapped behind an inward swinging door, the center tong depresses allowing the door to swing in the opposite direction without causing damage to the frame.
Rescue hardware is a valuable element in patient room restrooms, utility closets, and small spaces in hospitals, institutions, and convalescent homes. Rescue hardware is composed of either a rescue strike or an emergency stop assembly.

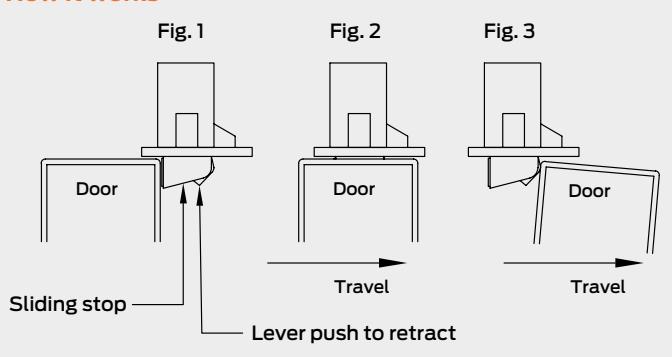

How it works
Features and benefits
- § Meets ANSI/BHMA A1882 standard
- § Stainless finish
- § Center or offset mounting styles
- § Used in conjunction with center hung pivots
- § Fits nominal 7" and 8" wide frames
- § Fits 1 3⁄4" door thickness
Configurations
- § Available as emergency strike in the following sizes: 7" center , 8" center, 7" offset, and 8" offset strikes
- § Available with emergency release and strike in the following sizes: 7" center, 8" center, 7" offset, and 8" offset
- § Must be used with center hung pivot, Ives models: 7253, 7255, 7255J, 7256, and 7259
- § Cannot be used with deadbolt applications
Specifications
| Nominal frame width | Description | Model number | |
|---|---|---|---|
| Rescue strike only | 7" | Center rescue strike (double lip strike - 6.75 x 2.75) | 299RS-7 |
| Offset rescue strike (double lip strike - 6.75 x 2.75) | 299RB-7 | ||
| 8" | Center rescue strike (double lip strike - 7.75 x 2.75) | 299RS-8 | |
| Offset rescue strike (double lip strike - 7.75 x 2.75) | 299RB-8 | ||
|
Emergency stop assemblies
(includes strike and latch assembly) |
7" | Stop assembly and double lip strike - center - 6.75 x 2.75 | 299AS-7 |
| Stop assembly and double lip strike - offset - 6.75 x 2.75 | 299AB-7 | ||
| 8" | Stop assembly and double lip strike - center - 7.75 x 2.75 | 299AS-8 | |
| Stop assembly and double lip strike - offset - 7.75 x 2.75 | 299AB-8 | ||
| Emergency stop mortise latch assembly | N/A | Emergency stop latch assembly | 299AL |
Note: All products in 630 (US32D) finish.
Rescue strike only

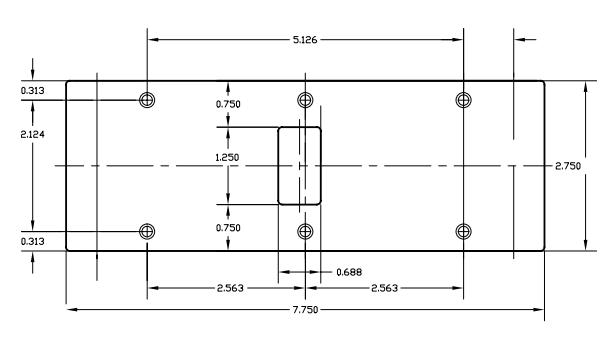

Center

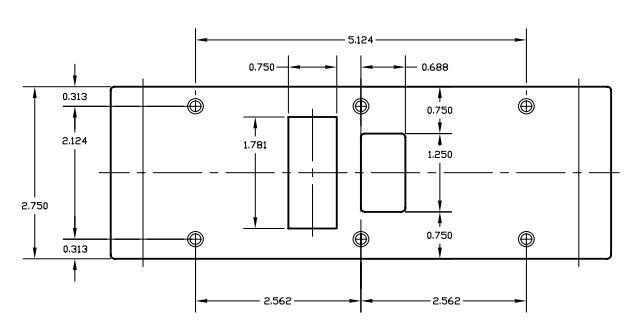

Emergency stop assemblies
Center

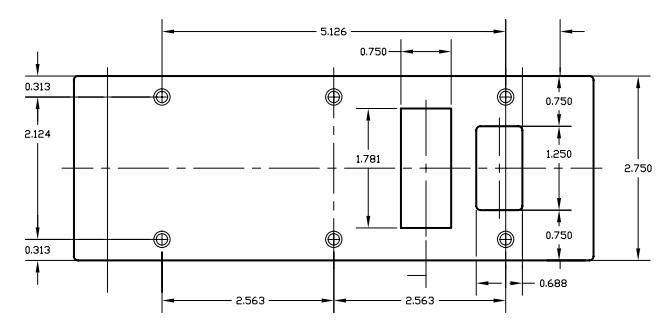

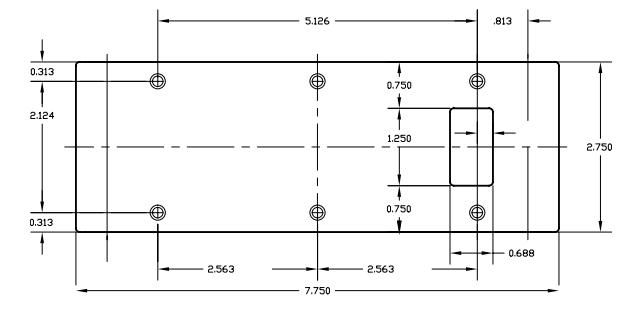

Offset Offset

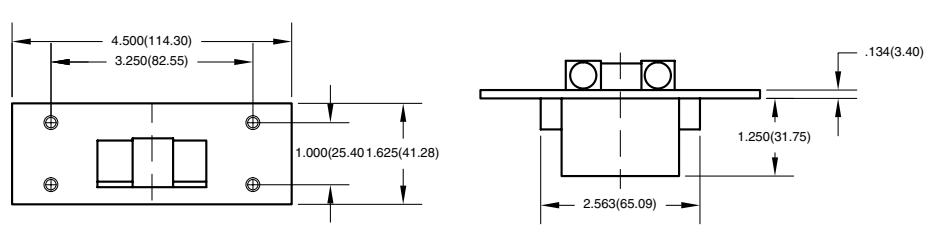

Mortise latch assembly
