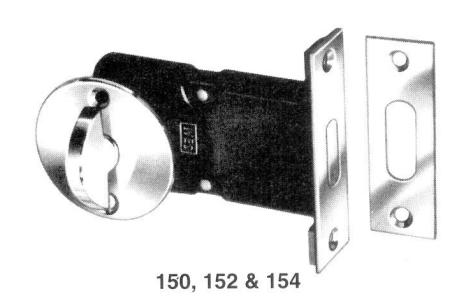

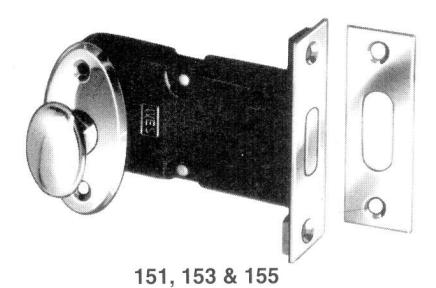

Mortise Door Bolts Nos. 150, 151, 152, 153, 154 & 155
- Polished wrought brass or bronze face, bolt and strike.
- 150, 152 & 154 have a polished solid brass thumbturn and escutcheon.
- 151, 153 & 155 have a polished solid brass oval turn knob and escutcheon.
- Rust proof, precision permanent molded aluminum case, conversion coated and black vinyl finished.
- Heat treated, power metallurgy, copper impregnated alloy steel hub for superior strength, permanently lubricated cam action, fit 3/16" spindle.
- Retains unequaled, smooth positive operation.
- Only 1/4" turn of thumbturn to lock or unlock door.
- · Simplified installation; one step mortise.
- · Slim case.
- Optional emergency release trim available.
- Conforms to design requirements of A.N.S.I. A156.16.
- 150, 152 & 154 are packed with thumbturn, escutcheon, bolt, strike and screws.
- 151, 153 & 155 are packed with oval turn knob, escutcheon, bolt, strike and screws.
| Dund No. | Backset | Case Dimension | Face Plate | Strike | Throw | Finishes |
|---|---|---|---|---|---|---|
| Prod. No. | 1." | B3-B10-B10B-B26-B26D | ||||
| 150 , 151 | 13/4" | 15/8" x 21/4" x 9/16" | 23/4" x 13/16" | 2½" x 13 /16" | 2 | B3-B10-B10B-B20-B20B |
| 152 , 153 | 21/2" | 15/6" × 3" × 9/16" | 23/4" x 13/16" | 21/2" x 13/16" | 12" | B3-B10-B10B-B26-B26D |
| 154 , 155 | 23/4" | 15/6" x 31/4" x 9/16" | 23/4" x 13/16" | 2½" x 13/16" | 12" | B3-B10-B10B-B26-B26D |
Trim Components
Nos. 145, 146, 145 x 146, 147, 148, 147 x 148
For Use With IVES Mortise Bolts: Nos. 150, 151, 152, 153, 154, 155
Emergency Key No. 5
Thumbturn
No. 145
- Solid brass
- · For use with IVES Nos. 150, 152,
Escutcheon
No. 146
- Solid brass
- · For use with IVES Nos. 150, 152,

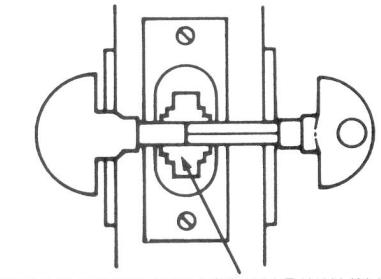

SPINDLE CUT TO ENGAGE HALF-WAY IN HUB
Thumbturn and Escutcheon
No. 145 x 146
- Solid brass
- · For use with IVES Nos. 150, 152,
Oval Turn Knob & Escutcheon No. 147 x 148
- Solid brass
- · For use with IVES Nos. 151, 153,
Oval Turn Knob
No. 147
- Solid brass
- · For use with IVES Nos. 151, 153,
| Prod. No. | Finish | |
|---|---|---|
| 5 | F14 | |
Escutcheon No. 148
Solid brass
• For use with IVES Nos. 151, 153,
| Prod. No. | Finishes | |
|---|---|---|
| 145, 146, 145 x 146, 147, 148, 147 x 148 | B3-B10-B10B-B26-B26D | |
