Flush pulls

Overview

For more than 120 years Ives has produced a full line of premium building hardware and accessories that delivers application flexibility and superior value. Introducing a new line of Ives decorative flush pulls, offering a high quality, upscale appearance that is sure to improve the look and feel of your interior sliding door or pocket door design. The five new decorative flush pull designs are available in a variety of finishes, shapes, and sizes and are ready to complement your unique sliding door application.

Features and benefits

• § Solid brass construction
• § Five different sizes and shapes
• § Available in three finishes, with engineered special finishes available upon request

Decorative flush pulls

Ives offers five different decorative flush pull designs to fit any style or function. Made to complement various sliding and pocket door applications, Ives flush pulls help maximize the space-saving benefits derived from installing sliding and pocket doors.

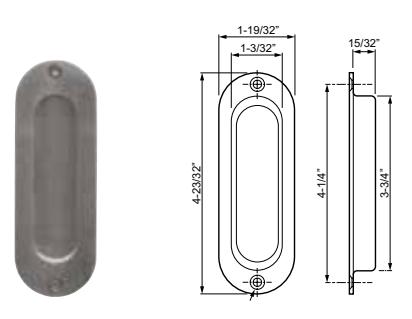

919 Oval flush pull

Size: 1 19⁄32" W x 4 23⁄32" H

Depth: 15⁄32" Substrate: Brass

Fasteners: Exposed #6 x 5⁄8" FH PH ANSI: Designed to A156.9 and A156.14 specifications and standards

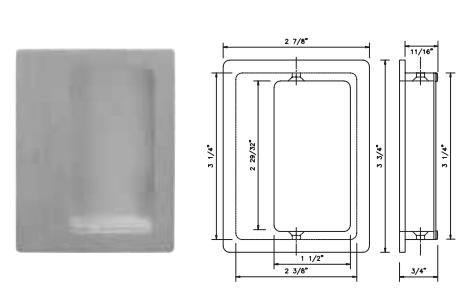

950 Rectangle flush pull

Size: 2 7 ⁄8" W x 3 3⁄4" H

Depth: 11⁄16" Substrate: Brass

Fasteners: Concealed #6 x 3⁄4" OH PH ANSI: Designed to A156.9 and A156.14 specifications and standards

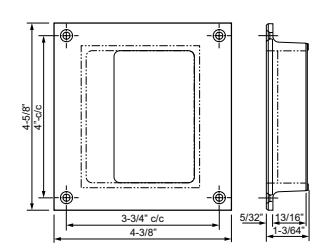

955

Rectangle flush pull

Size: 4 3⁄8" W x 4 5⁄8" H

Depth: 1 3⁄16" Substrate: Brass

Fasteners: Exposed #6 x 3⁄4" FH PH ANSI: Designed to A156.9 and A156.14

specifications and standards

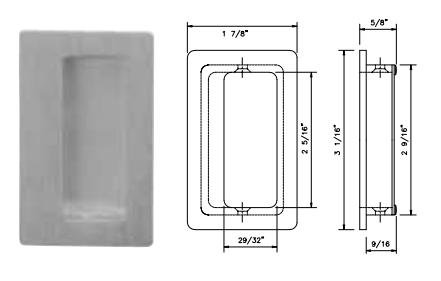

960 Rectangle flush pull

962

Rectangle flush pull with black inset

Standard available finishes

605 Bright brass

613 Oil rubbed bronze

626 Satin chrome

Size: 1 7 ⁄8" W x 3 1 ⁄16" H

Depth: 9⁄16" Substrate: Brass

Fasteners: Concealed #6 x 3⁄4" OH PH ANSI: Designed to A156.9 and A156.14

specifications and standards

Size: 2.438" W x 3.938" H

Depth: .601" Substrate: Brass

Fasteners: Concealed #8 x 3⁄4" OH PH ANSI: Designed to A156.9 and A156.14 specifications and standards
