View PDFITL 9700A

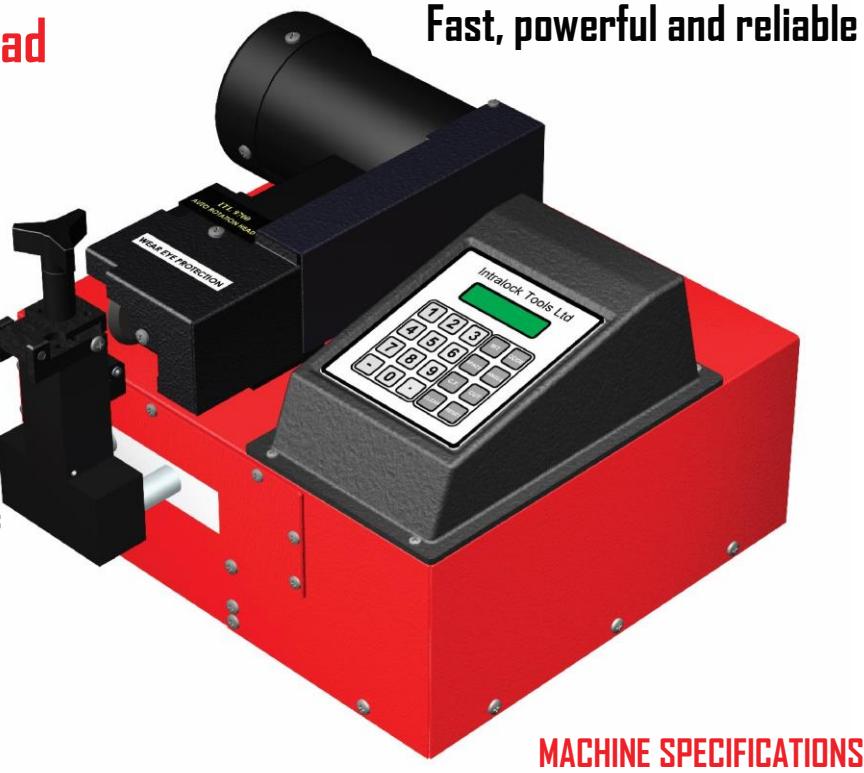

Industrial Code Machine
Medeco ™ Auto Rotation Head
Superior rigidity & repeatable accuracy
Recirculating bearings
Typical cut rates:
- Standard ... 15 seconds
- High-Speed ... 9 seconds
- Laser ... 8 seconds Bi-Axial 6 pin ... 16 seconds
600+ spaces & depths
99 custom tables for new spaces & depths
Communication port One cutter does it all with minor exceptions
Supplied with carbide cutter
Compatible with majority of commercially available software
Warranty: One year parts and labor (cutter not included).
Distributed by:
Repeatable accuracy: +/-.00075"
.02 [mm]
Power: 120 volt AC (standard) 240 volt AC (special order)
Keypad: Sealed Membrane
Display: 2 lines 16 characters per line
Dimensions (LxWxH): 16" x 15" x 12"
406 x 381 x 305 [mm]
Net Weight: 78lbs
35kg
Gross Weight: 86lbs
39kg
Building superior key machines since 1985
