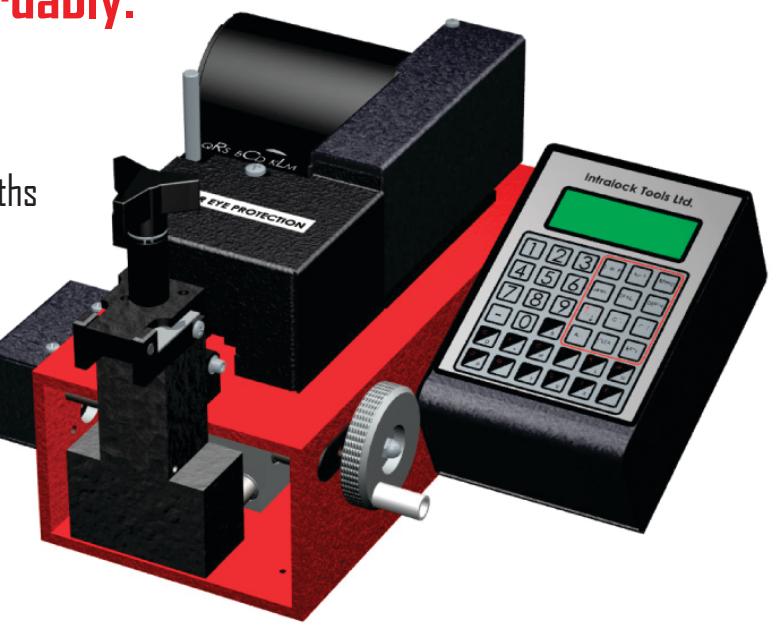

ITL 950C

Computerized Code Machine

Do more. Have More. Affordably.

600+ spaces & depths

99 custom tables for new spaces & depths

Built-in automotive codes

Normal (cut by cut) mode

Laser cut mode

Half-cut mode for progression

Communication port

HSS M42 offset cutter (standard)

One cutter does it all (except Medeco/Emhart™)

Optional carbide cutter

Medeco/Emhart™ head and program included

Optional Medeco/Emhart™ cutter

Inserts for double-sided automotive keys

Magnetic Insert Caddy

For mobile and shop use

Warranty: One year parts and labor (cutter not included).

Distributed by:

Repeatable accuracy +/-.002" of X-Y axis: .05mm

Power: 120 volt AC & 12 volt DC (standard) 240 volt & 12 volt DC (special order)

Keypad: Alpha-numeric

Display: 4 lines 20 characters per line

Dimensions (LxWxH): 14" x 11" x 9"

350x 275 x 225mm

Net Weight: 36lbs

16.5kg

Gross Weight: 40lbs

19kg
