ITL9000 Brochure

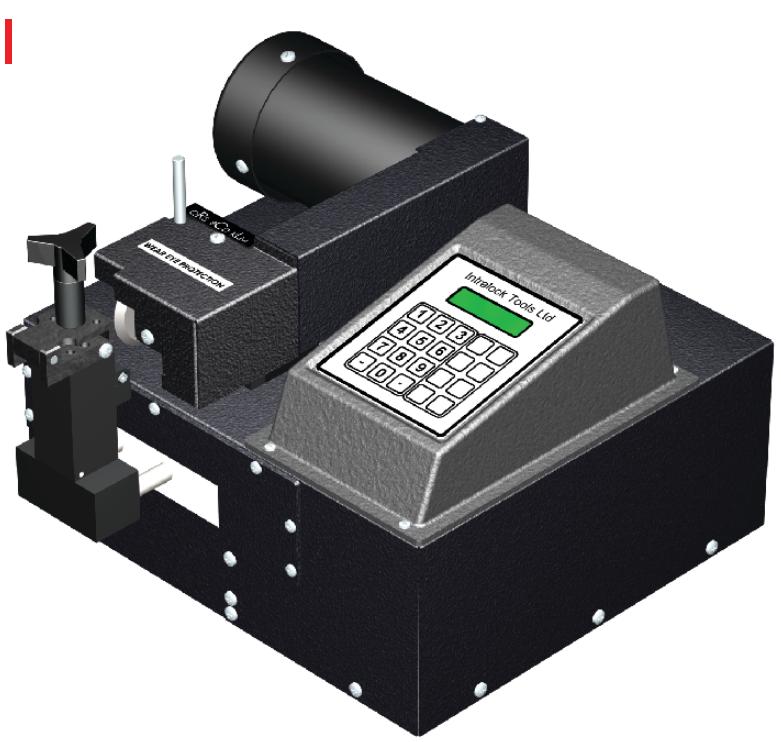

ITL 9000

Precision Code Machine The one that started it all

Cuts standard and Bi-Axial Medeco ™ keys

600+ spaces & depths

99 custom tables for new spaces & depths

Communication port

One cutter does it all with minor exceptions

Compatible with majority of commercially available software

Warranty: One year parts and labor (cutter not included)

ALSO AVAILABLE WITH CARBIDE CUTTER

Distributed by:

MACHINE SPECIFICATIONS

Repeatable accuracy: +/-.001"

.025 mm

Power: 120 volt AC (standard) 240 volt AC (special order)

Keypad: Sealed membrane

Display: 2 lines 16 characters per line

Dimensions (LxWxH): 16" x 15" x 12" 406 x 381 x 305mm

Net Weight: 64lbs

29kg

Gross Weight: 72lbs

33kg
