ACTIVE INFRARED PRESENCE DETECTION

IS40/IS40XL

MOTION SENSOR

PROVEN TECHNOLOGY

• Active infrared and microwave technologies work together to provide precise presence and accurate motion detection in front of the door.

SUPERIOR COVERAGE

• With up to 40 spots of infrared detection, the standard IS40 can be mounted from 8 ft – 16 ft.
• The IS40xl should be used for applications with mounting heights from 6.5 ft – 11.5 ft where a wider microwave pattern is desired.

DURABILITY UNDER HARSH CONDITIONS

• The IS40 and IS40xl are immune to subtle door vibrations, light, sun and environmental changes, including rain and snow.
• The IS40 and IS40xl are designed with NEMA 4 and IP65 rated enclosures.

MINIMAL INSTRUCTION AND MAINTENENCE

Labor-intensive induction loops are replaced with an easy to mount overhead installation. Most adjustments can be performed using the IDC remote control.

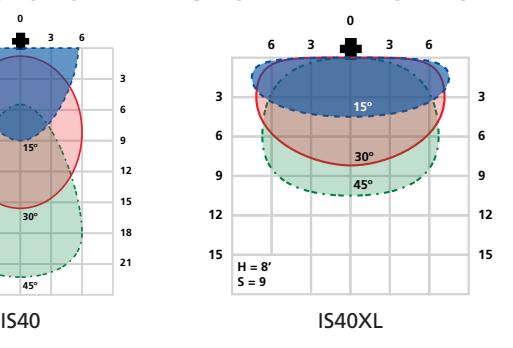

IS4 0 / IS40XL MICROWAVE ZONES

RELATED PRODUCTS

Falcon Iris-I

24 VAC Transformer

Spotfinder IDC Remote HD Bracket

The proven technology of the Falcon plus active infrared presence detection

International Door Closers, Inc.

COPYRIGHT 2018 INTERNATIONAL DOOR CLOSERS, INC www.intldoorclosers.com

West: 800-544-4422 • East: 800-225-6737

TECHNOLOGY MICROWAVE INFRARED

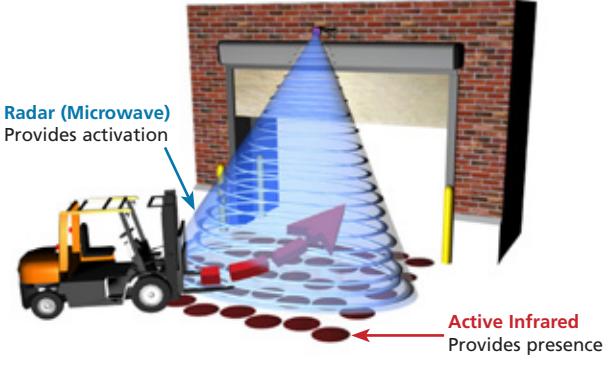

DETECTION MODE

MOTION PRESENCE

OUTPUT HOLD TIME

0.5 – 9 seconds 0.5 seconds

REACTION TIME

100 ms 250 ms

TILT ANGLE

-8° to 22° 15° to 45° (relative to front face of sensor)

LED INDICATOR

Green (motion) Red (presence)

RADIATED FREQUENCY

24.175 GHz 875 nm

RADIATED POWER DENSITY

< 5 mW/cm² < 250 mW/m²

MINIMUM TARGET SPEED 2 in/s (5 cm/s) 0 in/s (0 cm/s)

(in sensor axis)

MOUNTING HEIGHT

IS40: 8' – 16' / IS40XL: 6.5' – 11.5'

LEARN TIME

30 seconds to infinity (no learn)

MICROWAVE DETECTION FIELD (W × D) IS40: 13' × 16' / IS40XL: 13' × 6.5'

INFRARED DETECTION FIELD

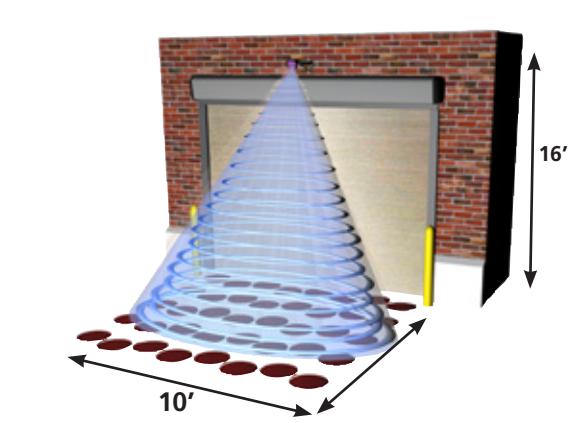

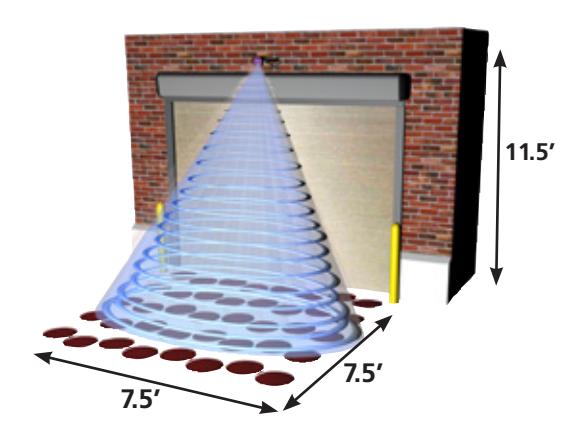

IS40: Up to 10' × 10' IS40XL: Up to 7.5' × 7.5'

SUPPLY VOLTAGE

12 to 24 VAC ± 10% 12 to 24 VDC +30% / -5%

MAIN FREQUENCY

50 to 60 Hz

POWER CONSUMPTION

< 3.5 W

RELAY OUTPUT

2 Relays with switch-over contact (voltage free)

MAX. VOLTAGE 60 VDC / 125 VAC

MAX. CURRENT

1 A (resistive)

MAX. SWITCHING POWER 30 W (DC) / 60 VA (AC)

TEMPERATURE RANGE

-22°F to 140°F (-30°C to 60ºC)

PROTECTION DEGREE NEMA 4 & IP65

NORM CONFORMITY

Electromagnetic compatibility

(EMC) according to 2004/108/EEC, R&TTE: 1999/5/EC

DIMENSIONS (D×W×H)

5 in × 4 in × 3.75 in

ENCLOSURE MATERIAL / COLOR ABS / Black

FACE MATERIAL / COLOR

Polycarbonate / Purple

CABLE LENGTH 32 ft (10 m)

International Door Closers, Inc.

SPECIFICATIONS DIMENSIONAL DRAWINGS

3D Perspective Top View

Front View

Side View

APPLICATIONS

IS40 DUAL TECHNOLOGY Detects both objects in motion and objects at rest

IS40 ADJUSTABLE MOUNTING HEIGHTS FROM 11.5 ft – 16 ft

IS40XL ADJUSTABLE MOUNTING HEIGHTS FROM 6.5 ft – 11.5 ft

West: 800-544-4422 • East: 800-225-6737 COPYRIGHT 2018 INTERNATIONAL DOOR CLOSERS, INC www.intldoorclosers.com
