IPRW300 Reader Installation Instructions

801 Avenida Acaso, Camarillo, Ca. 93041 • (805) 494-0622 • Fax: (805) 494-8861 www.sdcsecurity.com • E-mail: service@sdcsecurity.com

INSTALLATION INSTRUCTIONS IPRW300 Proximity Reader

SDC P/N : IPRW300

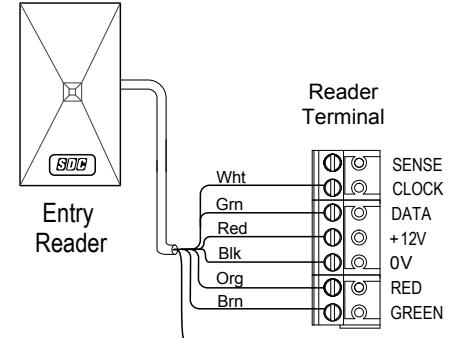

IPRW300 Wiring - ENTRY READER TO IPPRO
Wire Color	Terminal
White	CLOCK (Data 1)
Green	DATA (Data 0)
Red	+12V
Black	0V
Orange	RED
Brown	GREEN
Blue	NOT USED (Beeper)
Violet	NOT USED (Low Power Mode)
Yellow	NOT USED (Card Present)

IP Pro™ Single Door Controller Or Remote Door Station

SDC P/N : IPDCE or IPDSE

Drain must be connected to an earth ground

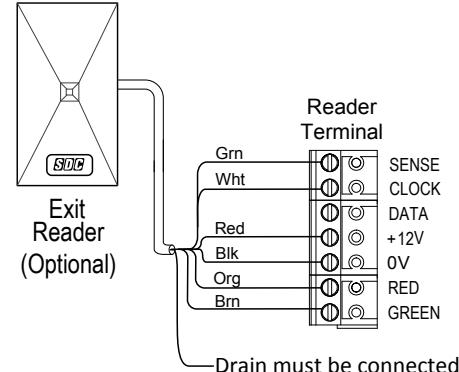

IPRW300 Wiring - EXIT READER TO IPPRO
Wire Color	Terminal
White	CLOCK (Data 1)
Green	SENSE
Red	+12V
Black	0V
Orange	RED
Brown	GREEN
Blue	NOT USED (Beeper)
Violet	NOT USED (Low Power Mode)
Yellow	NOT USED (Card Present)

IP Pro™ Single Door Controller Or Remote Door Station

SDC P/N : IPDCE or IPDSE

Drain must be connected to an earth ground

IPRW300 Wiring To 3rd Party Access Control System
Wire Color	Wire Designation
Green	DATA 1
Blue	DATA 0
Red	+12V
Black	0V
Brown	GREEN LED (Single LED Control)
Orange	RED LED (Dual LED Control only)
Blue	NOT USED (Beeper)
Violet	NOT USED (Low Power Mode)
Yellow	NOT USED (Card Present)

IPRW300 Specifications:

Operating Voltage: +5 - 16 Volts DC (12VDC recommended) Current Consumption: 30 mA typ., 75 mA peak @ 12 VDC Operating Temperature: –40° F to 149° F (–40° C to +65° C)

Dimensions (H x W x D): 3.2" x 1.7" x 0.7"

Housing: Indoor/Outdoor (IP67) w/ potted electronics

Cabling: 20" Pigtail lead

Output: Industry standard 26-bit Wiegand

Max. Cable Distance to Host: 328ft (100m) @12VDC, 100ft (30m) @ 5VDC Recommended Cable (min. 6 conductors): Belden 5504FE or 5506FE or equal

HID-compatible (125Khz RFID)
