INSTALLATION INSTRUCTIONS IPRW Proximity Reader
SDC P/N : IPRW

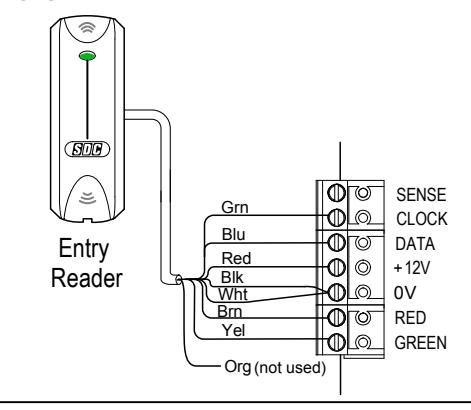

| IPRW Wiring - ENTRY READER TO IPPro Controller | ||
| Wire Color | Terminal | |
| Green | CLOCK (Data 1) | |
| Blue | DATA (Data 0) | |
| Red | +12V | |
| Black | 0V | |
| White | 0V (tied together w/ Black) | |
| Brown | RED LED | |
| Yellow | GREEN LED | |
| Orange | NOT USED (Buzzer) | |
IP Pro™ Single Door Controller SDC P/N : IPDC or IPDCE
Reader Terminal

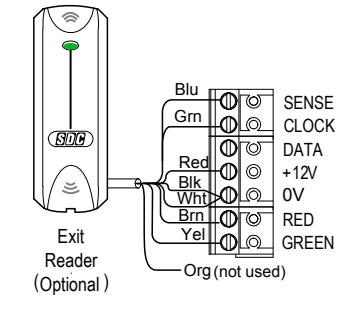

| IPRW Wiring - EXIT READER TO IPPro Controller | ||
| Wire Color | Terminal | |
| Green | CLOCK (Data 1) | |
| Blue | SENSE (Data 0) | |
| Red | +12V | |
| Black | 0V | |
| White | 0V (tied together w/ Black) | |
| Brown | RED LED | |
| Yellow | GREEN LED | |
| Orange | NOT USED (Buzzer) | |
IP Pro™ Single Door Controller SDC P/N : IPDC or IPDCE
Reader Terminal
| IPRW Wiring To 3rd Party Access Control System | ||
|---|---|---|
| Wire Color Wire Designation | ||
| Green | DATA 1 | |
| Blue | DATA 0 | |
| Red | +12V | |
| Black | 0V | |
| White | 0V (tied together w/ Black) | |
| Brown | RED LED Control | |
| Yellow | GREEN LED Control | |
| Orange | Buzzer Control | |
IPRW Specifications:
Operating Voltage: 5 - 12 Volts DC Current Consumption: 40 mA (max)
Operating Temperature: -4 to 122 F (-20 to +50 C) Dimensions (H x W x D): 4.75" x 1.5" x 0.625" Housing: Indoor/Outdoor (IP67) w/ potted electronics
Cabling: 3m Pigtail lead
Output: 26-bit Wiegand Max. Cable Distance to Host: 328ft (100m) @12VDC, 100ft (30m) @ 5VDC
Recommended Cable: Belden 5504FE or 5506FE or equal
HID-compatible (125Khz RFID)
