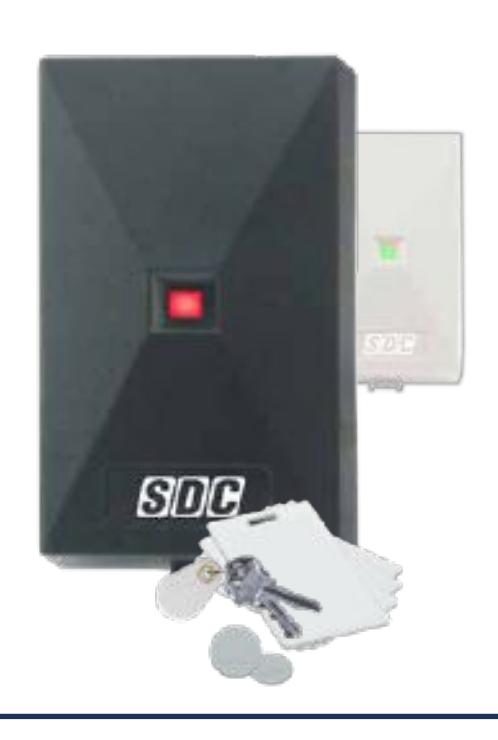

IP Pro IPRW Wiegand Reader Series

The SDC IPRW Series is the perfect companion for our IP Pro Controller. It provides 26-bit Wiegand output while being HID proximity compatible. Use as Entry or Exit Reader with the IP Pro System

MODELS

IPRW300 IP Pro Mini Wiegand Reader, Mullion Mount, includes black and white snap-on cover - supports HID Proximity (125 kHz)

IPRW500 IP Pro Wiegand Reader, U.S. Single Gang mount, includes black and white snap-on cover - supports HID Proximity (125 kHz)

PROX CARDS AND KEY FOBS

Proximity Card, 25 Cards

HID1326-100 Proximity Card, 100 Cards

Proximity Key Fob, 10 Key Fobs

HID1346-100 Proximity Key Fob, 100 Key Fobs

1

PTAG-10 PTAG-25

Adhesive Proximity Disc Tag, 10 Tags

Adhesive Proximity Disc Tag, 25 Tags

SPECIFICATIONS IPRW300

Operating Voltage	5-16 VDC
Current Consumption	30mA typical, 75mA peak
Housing	Indoor/Outdoor (IP67) w/potted electronics
Temperature	-40°F to + 149°F
Dimensions	3.2"H x 1.7"W x .7"D
Output	26-bit Wiegand
HID-compatible	125Khz RFID
	Max. Cable Distance to Host 328ft @ 12VDC, 100ft @ 5VDC
Read Range	up to 5" (126 mm)

SPECIFICATIONS IPRW500

Operating Voltage	5-16 VDC
Current Consumption	35mA typical, 75mA peak
Housing	Indoor/Outdoor (IP67) w/potted electronics
Temperature	-40°F to + 149°F
Dimensions	4.6"H x 3"W x .4"D
Output	26-bit Wiegand
HID-compatible	125Khz RFID
	Max. Cable Distance to Host 328ft @ 12VDC, 100ft @ 5VDC
Read Range	up to 8" (202 mm)
