FEATURES
- Controls one door directly, with multi-door expansion capabilities
- Password protected built-in web server or FREE downloadable 'Grid' software
- Two Ethernet Ports allow for interfacing with additional IP devices like cameras additional door controllers, etc.
- Entry & exit reader capability
- Supports industry standard proximity, smart card, and multi-technology readers (Wiegand output)
- Compliant with PoE+ standard
- Internet Explorer, Firefox and Google Chrome browser support
- Manage up to 15,000 users with free software or up to 1,000 via web browser
- Batch card enrollment
- 250 User groups/Time Zones/Door Groups
- Audit Trail Up to 5,000 events may be exported as a .csv file from web server, unlimited events from PC software interface
- Anti-tailgating
- Door Status Monitoring Input
- Request-to-Exit (REX) Input
- Lock Relay Output
| Voltage |
IP Pro Controller/Door Station
12 VDC Input |
|
|---|---|---|
| Current Consumption | 250mA (max) | |
| Operating Temperature | 14°F – 122°F (Indoor use only) | |
| Dimensions |
5.375" x 3.5" x 0.875" board only
9.25" x 6.5" x 2.1875" w/ ABS plastic enclosure |
|
|
Weight
1lb |
||
|
Relay Output Type
Form C (SPDT) x 2 |
||
| IP Pro Splitter | ||
| Input Voltage | 44 - 57 VDC | |
| Input Power | 30W max | |
|
Output Power
24W max |
||
|
Output Current
2A @ 12V |
||
| Relay Output Type | Form C (SPDT) x 2 | |
| Relay Contact Rating | Main (Lock) – 5A @ 30VDC | |
| Connections |
Digital Inputs: 4 dry contact inputs
Ethernet: RJ45 RS-485 Terminal Bus Reader Power – 12VDC Reader Data – Wiegand (26bit to 37bit) Reader LED Control – Red & Green |
|
|---|---|---|
| Two Solid State outputs (100mA max) | ||
| IP Pro Injector | ||
|
PoE+ Output Pin Assignment
and Polarity |
4/5 (+), 7/8 (–) | |
| Output Power Voltage | 55VDC | |
| User Port Power | 30Watts (Guaranteed) | |
Input Power 0.8A @ 100-240VAC

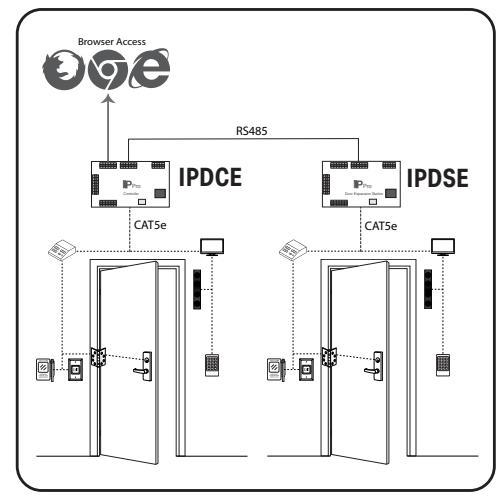

The IP Pro Line of IP-based Access Controllers allows expansion from one Standalone door up to a 100-door "Grid." The Choice is yours! It's like having a local area network for your doors without all the headaches of an enterprise system.

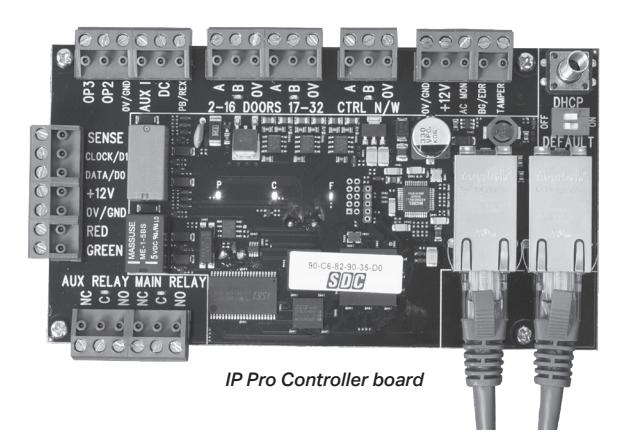

IP Pro Controller board
| IP Pro™ Com | ponents | LIST |
|---|---|---|
| IPDCE | IP Pro Controller, board plus enclosure | 924.00 |
| IPI-30 | IP Pro Injector, 30W PoE+ | 275.00 |
| IPS-12 | IP Pro Splitter, 12VDC PoE+ | 242.00 |
IP Pro Door Station Expansion board
| IP Pro™ Door S | station | LIST | |
|---|---|---|---|
| IPDSE | IP Pro Door Station Expansion, board plus enclosure | 699.00 |
IP Pro Controller enclosure
IP Pro Injector IP Pro Splitter
| IP Pro™ Kit | LIST | |
|---|---|---|
| IPPRO-SKE | IP Pro Starter Kit, including Controller board, Splitter, Injector plus Controller enclosure | 1,416.00 |
| 602RFx12VRxIPDC | 1 Amp , class 2 output power, 12/24 VDC dual output, IPDC Controller board, 12" W x 12" H x 3.75" D box | 1,210.00 |
| 602RFx12VRxIPDS |
1 Amp, class 2 output power, 12/24 VDC dual output, IPDS Door
Station board, 12" W x 12" H x 3.75" D box |
1,037.00 |
602RFx12VRxIPDC shown with optional batteries
Install - Expand - Control
- Embedded software
- Browser Accessible

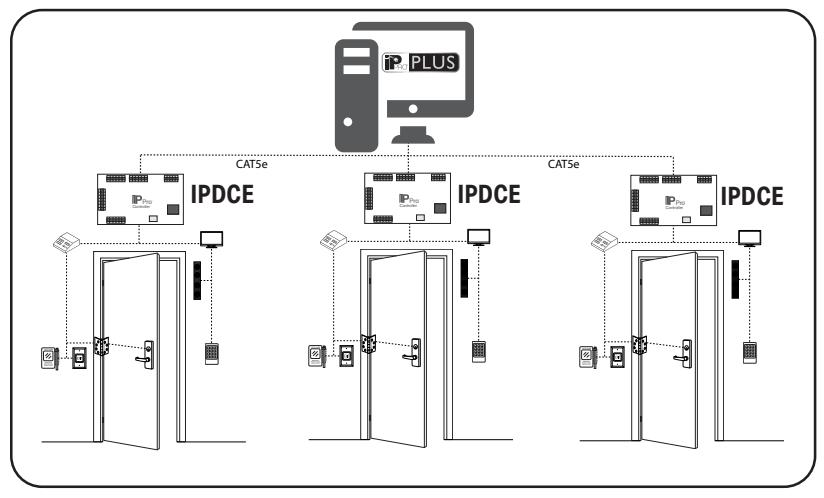

- 1 to 32 doors
- FREE Access Control Software
- Single PC Accessible
- 1 to 100 doors
Discount Code
PLUS features include:
- Intuitive & easy to use software; similar look & feel to the IP Pro™ web browser interface
- Free, single PC software for up to 100 doors
- Configure & manage all your IP ProTM controllers from a single interface – No enterprise headaches
- Wizard & quick start buttons for common tasks
- Automated management reporting
- E-mail alert notifications
- Utilizes the scalability of Microsoft SQL server
- Save more energy the more doors you add

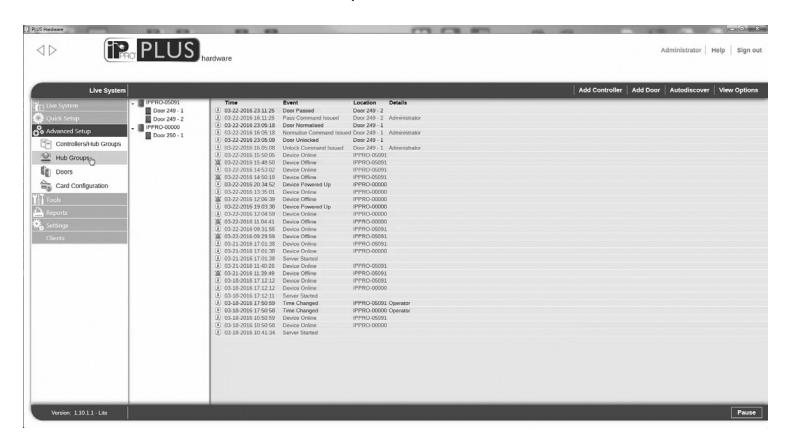

PLUS Hardware is used by the installer to set up controllers, doors and user profiles
- Enable & edit IPPro controllers
- Enable & edit door settings
- Create event filters
- Enable e-mail notifications

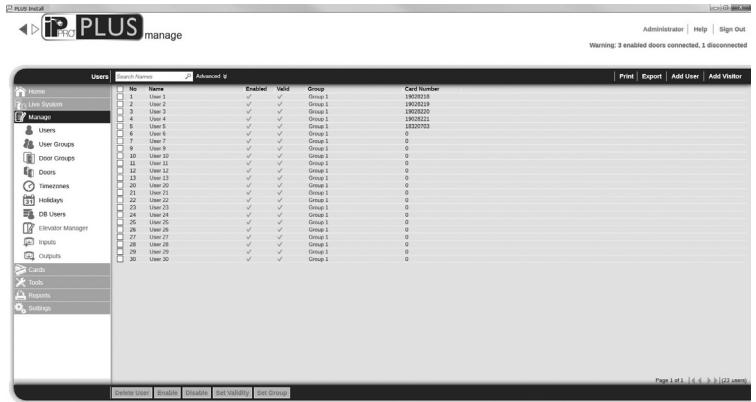

PLUS Manage is used by system administrators to facilitate database changes required on a day-to-day basis, and offers various reporting tools
- Create, view, & edit users
- Add access & holiday schedules
- Generate user & event reports

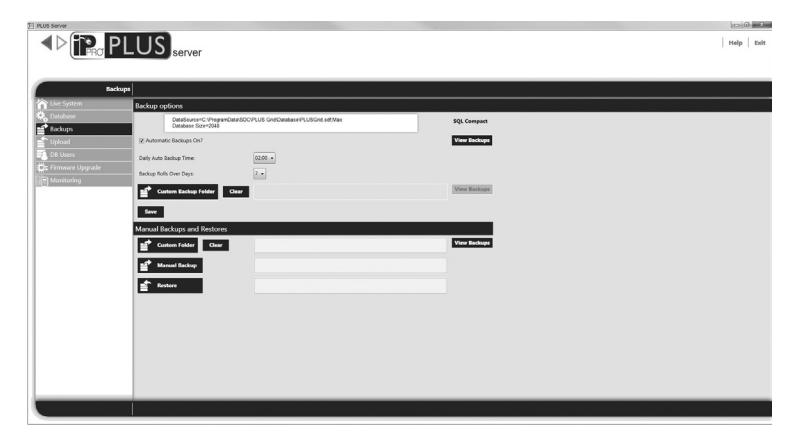

PLUS Server is used by system administrators to perform specialized tasks, such as database backups, firmware updates, importing/exporting users
- Perform manual or schedule automatic backups
- Import/Export Users
- Perform IPPro firmware updates
| Prox Reader | LIST | |
|---|---|---|
| IPRW300 |
Wiegand Reader - PROX, Mullion Mount, HID compatible (125 kHz)
includes Black and White Cover |
210.00 |
| IPRW500 |
Wiegand Reader - PROX, Single Gang Box or Surface Mount, HID compatible
(125 kHz) includes Black and White Cover |
241.00 |
IPRW500
| Wiegand Reader | LIST | |
|---|---|---|

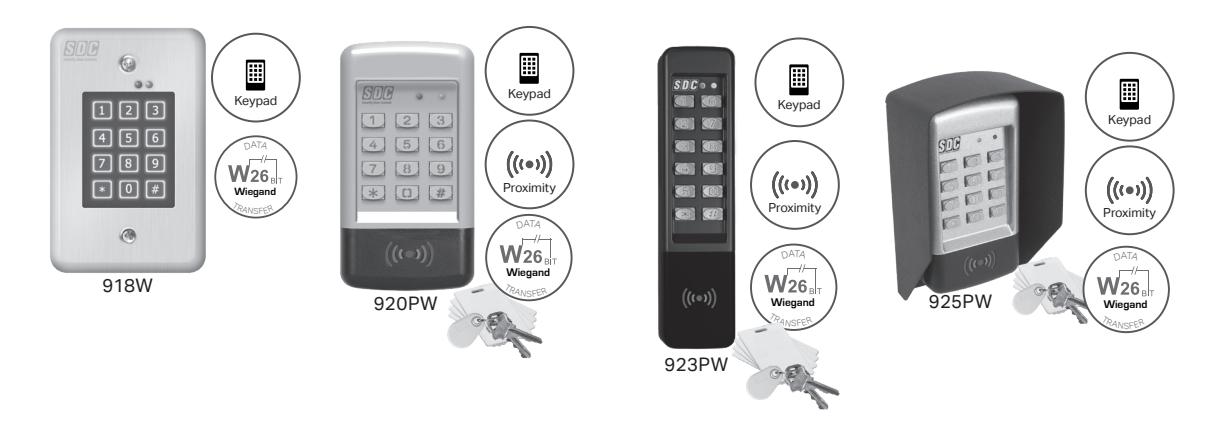

| 918W | Indoor digital keypad, Wiegand output | 174.00 |
| 920PW | Digital keypad with Prox Reader, Wiegand output | 433.00 |
| 923PW | Digital keypad, narrow, with Prox Reader, Wiegand output | 527.00 |
| 925PW | Digital keypad with Prox Reader, Wiegand output, and privacy shroud | 540.00 |
| Cards, Key FOBS and Tags |
Distributor
MV LIST Discount Code |
|
|---|---|---|
| HID1326-10 | Proximity Card, HID compatible, 10 cards | 75.00 |
| HID1326-25 | Proximity Card, HID compatible, 25 cards | 177.00 |
| HID1326-100 | Proximity Card, HID compatible, 100 cards | 710.00 |
| HID1346-10 | Proximity Key Fob, HID compatible, 10 key fobs | 145.00 |
| HID1346-100 | Proximity Key Fob, HID compatible, 100 key fobs | 1,419.00 |
| PTAG-10 | Proximity Disc Tag, HID compadible, 10 tags | 81.00 |
| PTAG-25 | Proximity Disc Tag, HID compadible, 25 tags | 193.00 |
