IP-based Access Control

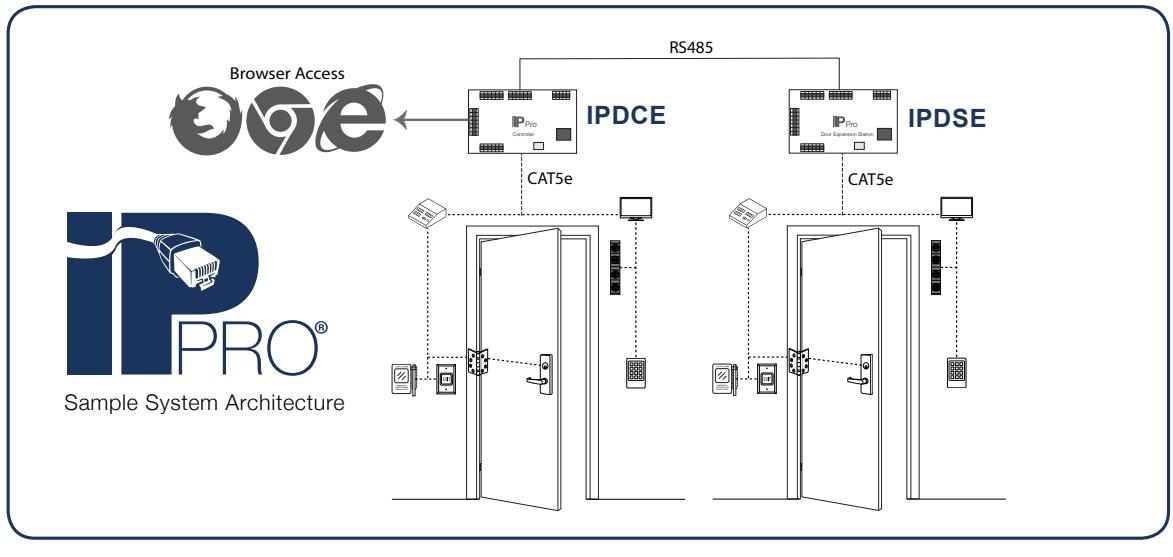

SDC's IP Pro Line of IP-based Access Controllers allows expansion from one Standalone door up to a 100-door "Grid." It's like having a local area network for your doors without all the headaches of an enterprise system.

FEATURES

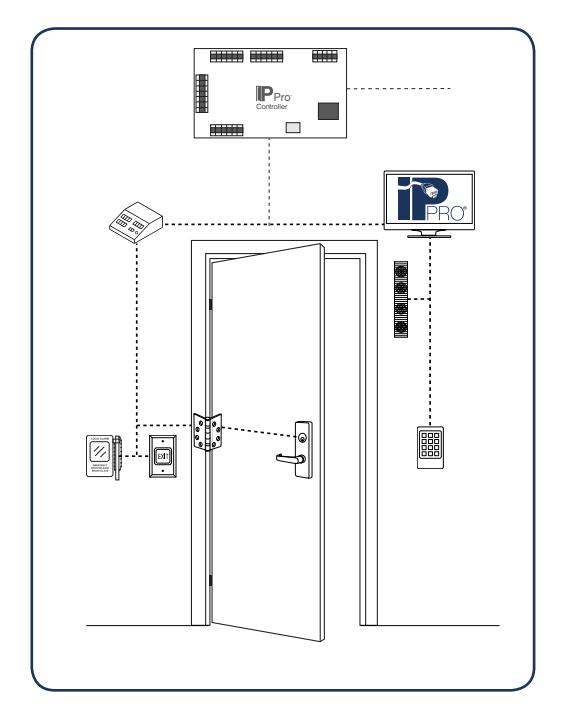

• Controls one door directly, with unlimited expansion capabilities
• TCP/IP communications (100/10Mbps)
• DHCP or Static IP addresses
• Password protected built-in web server or FREE downloadable 'Grid' software
• Two Ethernet Ports allow for interfacing with additional IP devices like cameras additional door controllers, etc.
• · Live transaction monitoring
• · Entry & exit reader capability
• Supports industry standard proximity, smart card, and multi-technology readers (Wiegand output)

Reader short circuit protection

LOCK/

+12V OV/GNE

AUX RELAY MAIN RELA

• · Compliant with PoE+ standard
• 60,000 users (up to 2 credentials per user)
• Batch card enrollment
• 250 Time Zones and 1,000 User/ Door Groups
• Holiday support
• Scheduled Events
• Temporary Users
• Audit Trail Up to 5,000 events from on-board storage, unlimited events with PLUS software (limited only by your alocated server space)
• Status LED's Power, Communications, & Fault on-board diagnostic indicators

• Anti-tailgating
• Anti-passback (global or localized)

* Now with two

Ethernet Ports

• Supported browsers: Microsoft Internet Explorer, Firefox, Google Chrome
• Multiple credential modes: Card only, PIN only, Pin or Card, Pin & Card
• Door Status Monitoring Input
• Request-to-Exit (REX) Input
• Programmable Auxiliary Input
• · Lock Relay Output
• · Auxiliary Relay Output
• (2) Programmable Solid-state Outputs
• Tamper Input
• Database backup support

IPDCE IP Pro Controller board plus enclosure

IPDSE IP Pro Door Station Expansion board plus enclosure

IPPRO-SKE IP Pro Starter Kit, including Controller board, Splitter and Injector

components plus Controller enclosure

IPI-30 IP Pro Injector 30W PoE+ IPS-12 IP Pro Splitter 12VDC PoE+

IPRW IP Pro Wiegand Reader - PROX, HID compatible (125 kHz)

IPRW300 IP Pro Wiegand Reader, Mullion Mount, includes black and white

snap-on cover - PROX, HID compatible

IPRW500 IP Pro Wiegand Reader, U.S. Single Gang Mount, includes black

and white snap-on cover - PROX, HID compatible

Designed for ease of use, the IP Pro embedded software allows for real-time monitoring and user

and user management via a web browser.

Or download the free PLUS software

and run your system through a single PC.

SPECIFICATIONS

IP Pro Controller / Door Station Expansion

Voltage	12 VDC Input
Current Consumption (max)	450mA - Controller 120mA - Door Station Expansion
Operating Temperature	14°F – 122°F (Indoor use only)
Dimensions	6" x 3.5" x 0.875" board only 9.25" x 6.5" x 2.1875" w/ ABS plastic enclosure
Weight	1lb
Relay Output Type	Form C (SPDT) x 2
Relay Contact Rating	Main (Lock) – 5A @ 30VDC Auxiliary – 1A @30VDC
Connections	Digital Inputs: 4 dry contact inputs Ethernet: RJ45 (Controller only) RS-485 Terminal Bus Reader Power – 12VDC Reader Data – Wiegand (26bit to 37bit) Reader LED Control – Red & Green Two Solid State outputs (100mA max)

IP Pro Splitter

Input voltage	44 - 57 VDC
Input power	30W max
Output power	24W max
Output Current	2A @ 12V
IP Pro Injector
PoE+ Output Pin Assignment and Polarity	4/5 (+), 7/8 (–)
Output Power Voltage	55Vdc
User Port Power	30Watts (Guaranteed)

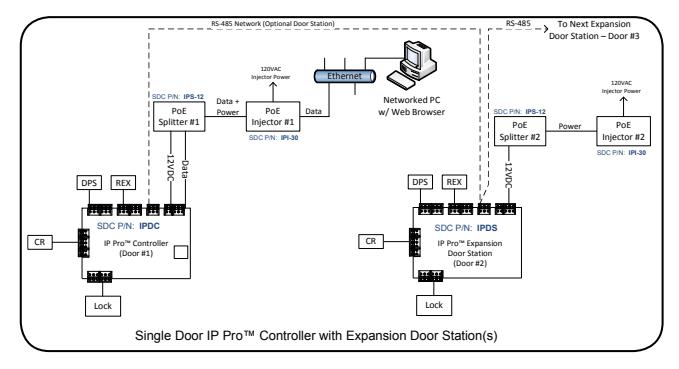

The addition of a second Ethernet port allows the IT department to save a port when connecting an additional door at the server. Installers have the potential to eliminate a long cable run to connect an additional IP device.

It's like having a local area network for your doors without all the headaches of an enterprise system.

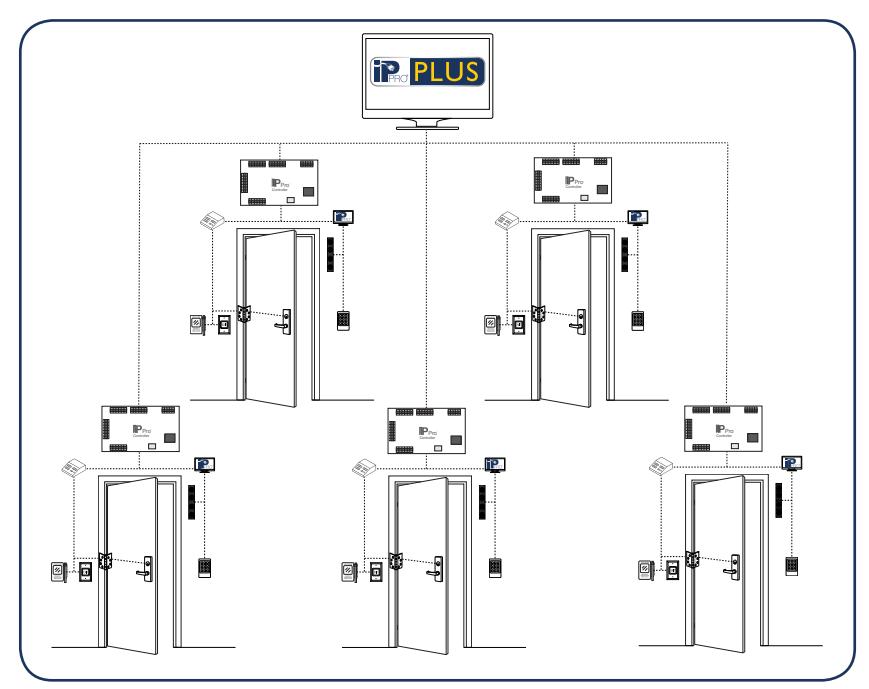

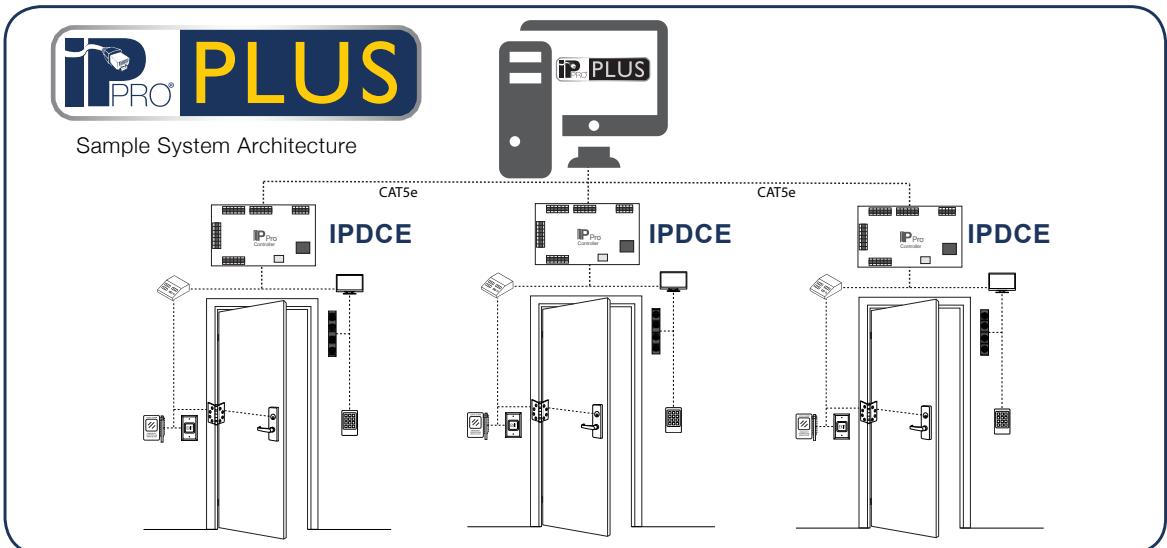

Our new PLUS PC-Client software is available as a free download to provide door access control for up to 100 doors from a single PC. PLUS is a role-based access control software suite with different interface modules, depending on user type.

PLUS Hardware is used by the installer to set up controllers, doors and user profiles

• Enable & edit IPPro controllers
• Enable & edit door settings
• Create event filters
• Enable e-mail notifications

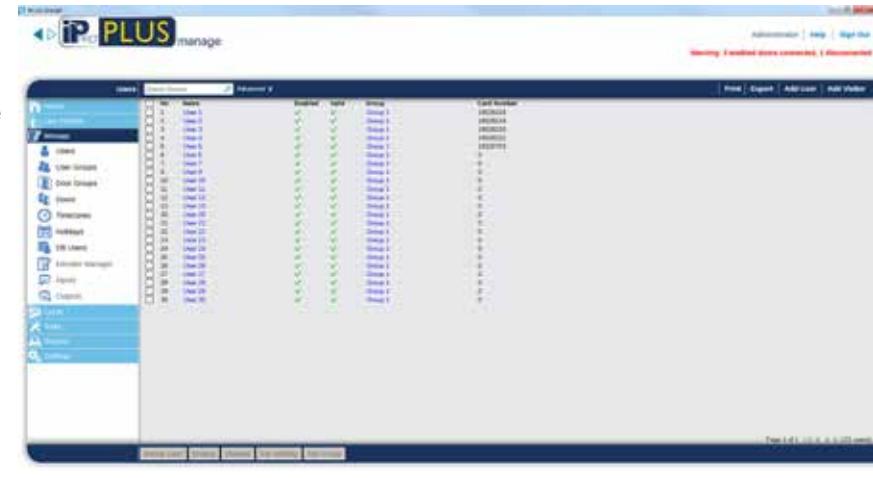

PLUS Manage is used by system administrators to facilitate database changes required on a day-to-day basis, and offers various reporting tools

• · Create, view, & edit users
• · Add access & holiday schedules
• · Generate user & event reports

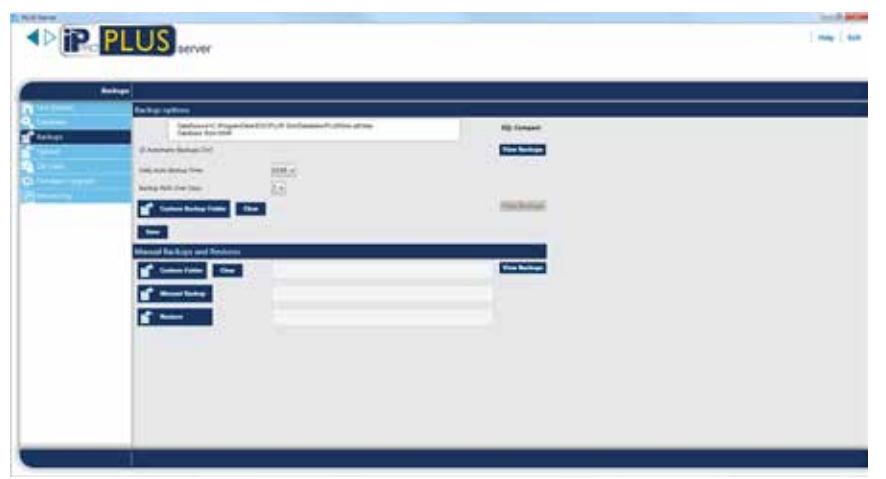

PLUS Server is used by system administrators to perform specialized tasks, such as database backups, firmware updates, importing/exporting users

• Perform manual or schedule automatic backups
• · Import/Export Users
• Perform IPPro firmware updates

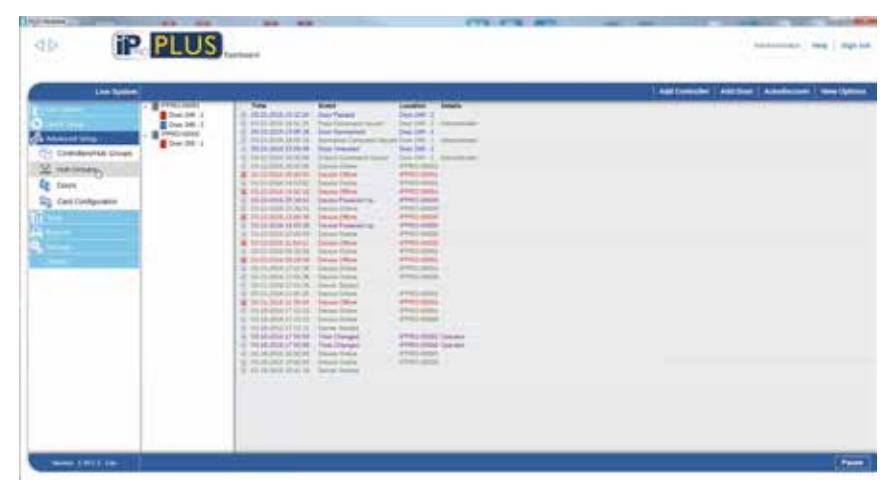

Live System events can be monitored from either module!

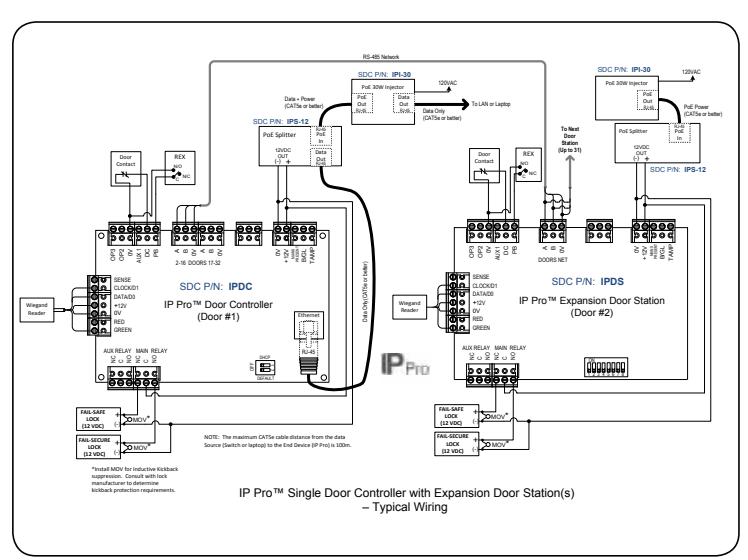

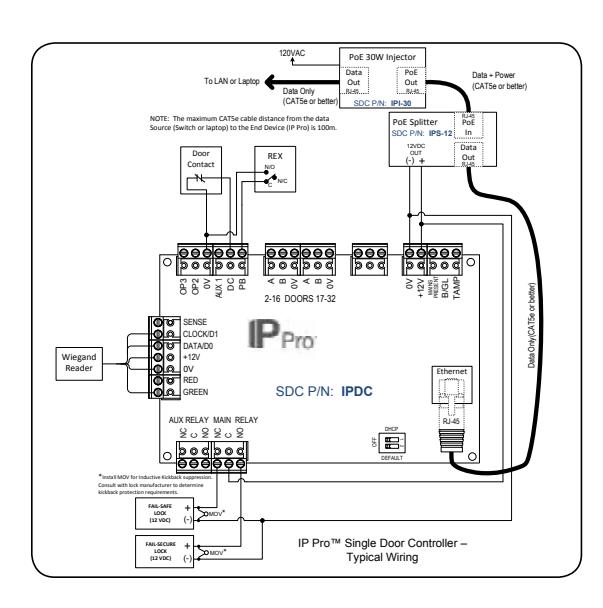

Visit http://sdcsecurity.com/ippro.htm to download Systems Operation and Point-to-Point Wire Diagram for common single door low energy applications.
