IP100 Latch Duo Pricesheet
Open the original PDF document
View PDF

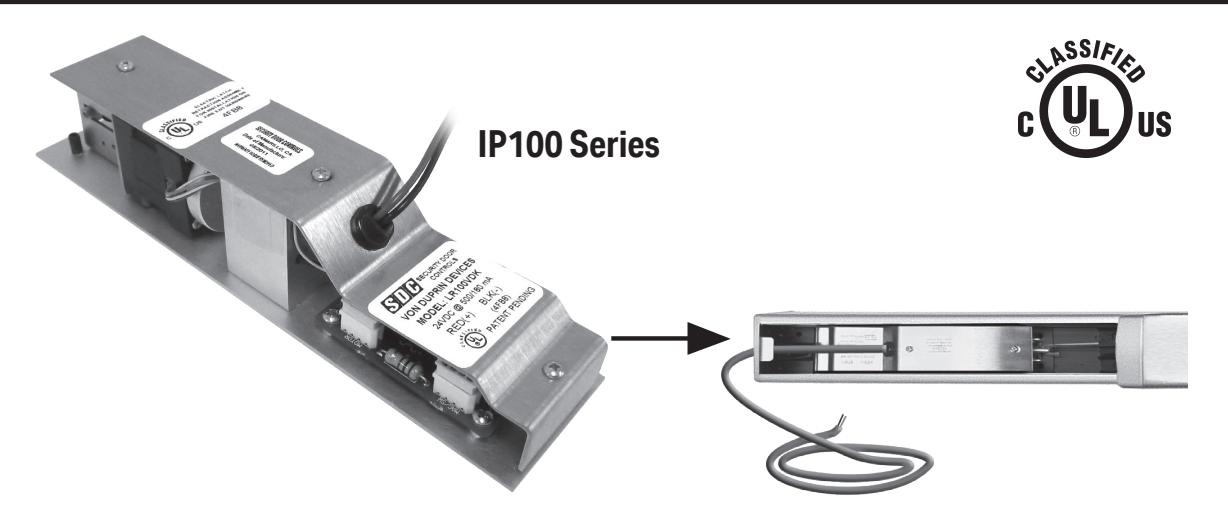

SDCs IP100 Power over Ethernet Capable Electric Latch Retraction Kit enables electric access control and dogging of mechanical exit devices. When energized the motor retracts the exit device latch and pulls the pushpad into the dogged (depressed)* position enabling momentary or sustained push and pull operation of the door. 12VDC @ 700/110 mA The latch retraction mechanism may be activated by an access control, remote control device or building automation system. The exit device always provides uninhibited egress.
* Except where noted for latch retraction only
| Adams Rite Exit Device | ||||
|---|---|---|---|---|
| Opening for |
Field
Retrofit Kit |
LIST | Factory Installed | LIST |
| 36" | IP100ARK | 676.00 | IP100AR | 730.00 |
| Models | , | |||
| Rim Moun | Rim Mount 8700 / 8800 / 3700 | |||
| Options | ||||
| LRAR1R | REX Status | s Kit | 112.00 | |
* Note: Retracts only the latch
| Falcon 24/25 Series Exit Devices | ||||
|---|---|---|---|---|
| Opening for |
Field
Retrofit Kit |
LIST | Factory Installed | LIST |
| 36" | IP100FRK | 676.00 | IP100FR | 730.00 |
| Models | |
|---|---|
| Rim Mount | 25-R / F-25-R / 24-R / F-24-R |
| Corbin Russwin ED Series Exit Devices | ||||
|---|---|---|---|---|
| Opening for |
Field
Retrofit Kit |
LIST | Factory Installed | LIST |
| 36" | IP100CRK | 676.00 | IP100CR | 730.00 |
| Models | ||||
|---|---|---|---|---|
| Rim Moun | t | ED5200 | ) / ED4200 | |
| Options | ||
|---|---|---|
| LRCR1L | Latch Status Kit | 112.00 |
| LRCR1R | REX Status Kit | 112.00 |
* Note: Retracts only the latch
| Hager 4500 Series Exit Devices | ||||
|---|---|---|---|---|
| Opening for |
Field
Retrofit Kit |
LIST | Factory Installed | LIST |
| 36"- 48" | IP100HK | 676.00 | IP100H | 730.00 |
| Models | |
|---|---|
| Rim Mount | 4501 - Rim |
| Surface Vertical Rod | 4501 - SVR |
| Options | ||
|---|---|---|
| LRH1L | Latch Status Kit | 112.00 |
| LRH1R | Pushpad/Dogging Status or REX Status Kit | 112.00 |
| SDC | 6000 Series Exit Devices | ||||
|---|---|---|---|---|---|
|
Opening
for |
Field
Retrofit Kit |
LIST | Factory Installed | LIST | |
| 36"-48" | IP100SDCK | 676.00 | IP100SDC | 730.00 | |
| Models | |
|---|---|
| Rim Mount | S6100 |
| Surface Vertical Rod | S6200 |
| Options | ||
|---|---|---|
| LRSDC1L | Latch Status Kit | 112.00 |
| LRSDC1R | Pushpad/Dogging Status or REX Status Kit | 112.00 |
|
Von Duprin
98/99 and 33/35 Series Exit Devices |
||||
|---|---|---|---|---|
| Opening for |
Field
Retrofit Kit |
LIST | Factory Installed | LIST |
| 36" IP100VDK | 676.00 | IP100VD | 730.00 | |
| 42" - 48" IP100VDK-42/48 | 676.00 | IP100VD-42/48 | 730.00 | |
| Models | ||
|---|---|---|
| Rim Mount | 98 / 99 | 33A / 35A |
| Surface Vertical Rod | 9827 / 9927 | 3327A / 3527A |
| Options | ||
|---|---|---|
| LRVD1L | Latch Status Kit for Von Duprin 98/99 Series | 112.00 |
| LRVD2L | Latch Status Kit for Von Duprin 33A/35A Rim | 112.00 |
| LRVD1R |
REX Status or Pushpad/Dogging Status Kit for Von
Duprin 98/99 and 33/35 Series |
112.00 |
* Note: Retracts only the latch
|
Sargent
Exit Devices |
||||
|---|---|---|---|---|
|
Opening
for |
Field
Retrofit Kit |
LIST | Factory Installed | LIST |
| 36"- 48" IP100SGK | 676.00 | IP100SG | 730.00 | |
| 32" IP100SGK-EM | 730.00 | IP100SG-EM | 784.00 | |
| Models | |
|---|---|
| Rim Mount | 8800 |
| Surface Vertical Rod | 8700 |
| Options | ||
|---|---|---|
| LRSG1R | REX Status Kit | 112.00 |
* Note: Retracts only the latch
|
Yale
7000 Series Exit Devices |
||||
|---|---|---|---|---|
| Opening for |
Field
Retrofit Kit |
LIST | Factory Installed | LIST |
| 36" | IP100YDK | 676.00 | IP100YD | 730.00 |
| Models | |||
|---|---|---|---|
| Rim Mount | 7100 / 7102 / 7200 | ||
| Options | |||
| LRY1L | Latch Status Kit | ||
| LRY1R | REX Status Kit | ||
* Note: Retracts only the latch
