Quiet Duo™ Series IP100 12V Latch Retraction / Dogging Kit

SDC DESIGNED AND MANUFACTURED

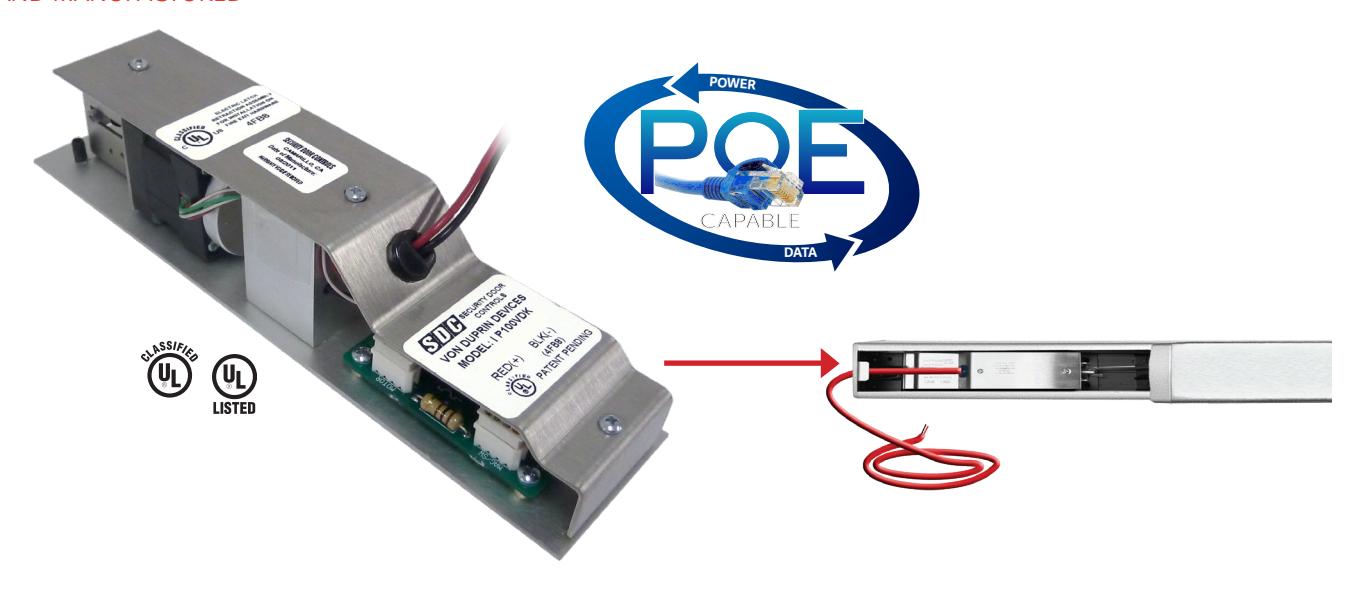

The SDC IP100 Series 12V PoE-Capable Electric Latch Retraction Kit enables electric access control and dogging of mechanical exit devices. When energized the motor retracts the exit device latch and pulls the pushpad* into the dogged (depressed) position enabling momentary or sustained push and pull operation of the door.

The latch retraction mechanism may be activated by an access control, remote control device or building automation system. The exit device always provides uninhibited egress.

QUIET DUO™ IP100 Series available for these brands:

• Von Duprin • SDC • Corbin Russwin • Hager • Sargent • Yale • Adams Rite • Falcon

Refer to page 2 to confirm compatibility of Rim, Mortise, Surface Vertical Rod for each brand.

FEATURES

• 700 mA Inrush, 110 mA Continuous @ 12VDC
• Power Over Ethernet (PoE) Capable
• For access control and sustained dogging applications
• Simultaneous latch retraction and dogging (pushpad depressed) for most exit devices*
• Pushpad is depressed* electrically for quieter push / pull operation
• Automatic re-trigger if device does not pull on first try
• Eliminates need for costly replacement of existing exit device
• Significantly less labor and costs compared to competitive retrofit kits
• Low current enables longer wire runs with smaller gauge wire
• No door sequencers required for pairs of manual doors

^* on designated models

MODELS

Adams Rite Exit Device
Opening Field for Retrofit Kit		Factory Installed
36" IP100ARK		IP100AR

Models
Rim Mount	8700 / 8800 / 3700

^* Note: Retracts only the latch

Field Retrofit Kit		Factory Installed
IP100CRK		IP100CR
Models
	ED5200 / ED4200
Options
LRCR1L Latch Status Kit
	REX Status Kit
	Corbin Russwin	ED Series Exit Devices

^* Note: Retracts only the latch

Falcon	24/25 Series Exit Devices
Opening for	Field Retrofit Kit		Factory Installed
36"	IP100FRK		IP100FR
Models
Rim Mount			25-R / F-25-R / 24-R / F-24-R

Hager		4500 Series Exit Devices
Opening for	Field	Retrofit Kit		Factory Installed
36"- 48"	IP100HK			IP100H
Models
Rim Mount		4501 - Rim
Surface Vertical Rod		4501 - SVR
Options
LRH1L		Latch Status Kit
LRH1R		Pushpad/Dogging Status or REX Status Kit

Sargent Exit Devices
Opening for	Field Retrofit Kit		Factory Installed
36"- 48"	IP100SGK		IP100SG
30"	IP100SGK-EM		IP100SG-EM
Models

Models
Rim Mount		8800
Surface Vertical Rod		8700
Options LRSG1R REX Status Kit

^* Note: Retracts only the latch

SDC	6000 Series Exit Devices
Opening for	Field Retrofit Kit			Factory Installed
36"-48"	IP100SDCK			IP100SDC
Models
Rim Mount				S6100
Surface Vertical Rod			S6200
Options
LRSDC1L		Latch Status Kit
LRSDC1R		Pushpad/Dogging Status or REX Status Kit

Von Duprin			98/99 and 33/35 Series Exit Devices
Opening for	Field Retrofit Kit		Factory Installed
36""	IP100VDK		IP100VD
42" - 48"	IP100VDK-42/48		IP100VD-42/48
Models
Rim Mount		98 / 99		33A / 35A
Surface Vertical Rod		9827 / 9927		3327A / 3527A

^* Note: Retracts only the latch

Yale 7000 Series Exit Devices
Opening for	Field	Retrofit Kit		Factory Installed
36"	IP100YDK			IP100YD
Models
Rim Mount				7100 / 7102 / 7200
Options
LRY1L		Latch Status Kit
LRY1R		REX Status Kit

^* Note: Retracts only the latch

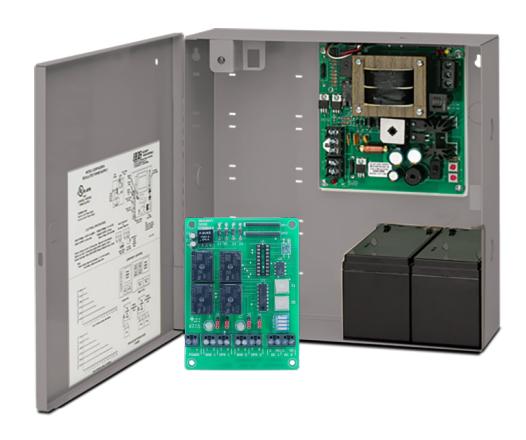

POWER SUPPLIES

602RF 1 Amp, 12/24VDC Power Supply, UL 294 Listed for use with up to two 24VDC devices. Add one EMC sequencer for 2 single or 1 pair of automatic doors

632RF 2 Amp, 12/24VDC Power Supply, UL 294 Listed for use with up to four 24VDC devices. Add two EMC sequencers for 4 single or 2 pairs of automatic doors

TWO DOOR SEQUENCER

EMC 2 Station Door Sequencer

Each EMC provides interface and sequencing for two single or one double automatic door. Not required for manual doors.

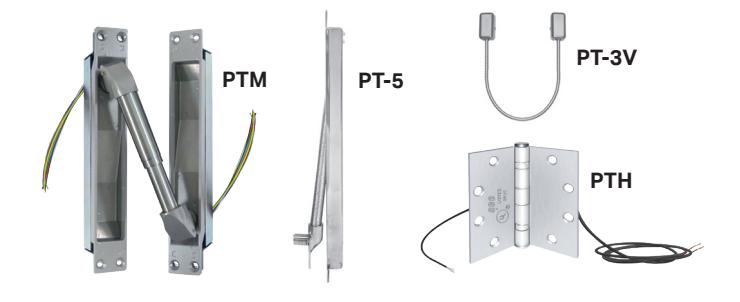

POWER TRANSFER DEVICES

PTH-4Q Power Transfer Hinge, 4 Wire, UL Listed, Fire Rated

PTH-10Q Power Transfer Hinge, 10 Wire, UL Listed, Fire Rated

PT-5 Mortise Power Transfer Device, UL 294 Listed, Fire Rated

PT-3V Stainless Steel Door Loop with Surface Wire Junction

PTM-2 Electric Power Transfer Device, (2) 18 GA Wires, 5 Amp Max., UL Listed, Fire Rated

PTM-10 Electric Power Transfer Device, (10) 24 Ga. Wires, 1 Amp Max., UL Listed, Fire Rated
