INSTRUCTIONS FOR INSTALLING 8888, 12-8888, 8800, 12-8800, WS8800, 12-WS8800, HC-8800 and 12-HC8800 SERIES RIM EXIT DEVICES WITH ALL STANDARD TRIM

FOR ASSISTANCE, CONTACT SARGENT AT 800-727-5477 or www.sargentlock.com

Copyright © 2006, 2008, 2009, 2012 Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the

express written permission of Sargent Manufacturing Company is prohibited. A6770P

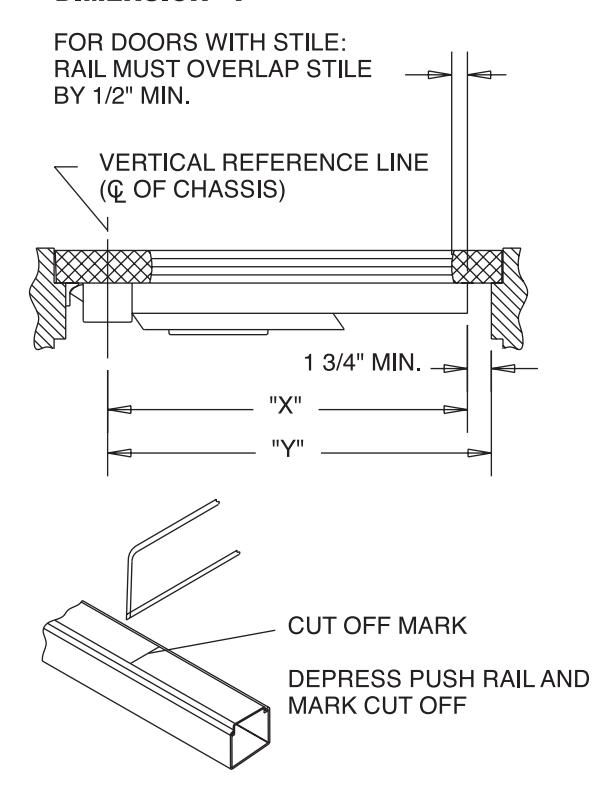

US PATENT No 268003 • CANADIAN PATENT No RD1981 WS8800 & 12-WS8800 Rim Exit Device (Shown Below) - Requires 3 shims under the chassis and end bracket HC8800 & 12-HC8800 Rim Exit Device (Not Shown ) - Requires 2 shims under the chassis and end bracket 16- Cylinder Lockdown (Exploded View for clarity) AVAILABLE STOCK LENGTHS Length "E": 32" door, no cut off required. Can be cut to fit doors down to 24" wide. Length "F": 36" door, no cut off required. Can be cut to fit doors down to 33" wide. Length "J": 42" door, no cut off required. Can be cut to fit doors down to 37" wide. Length "G": 48" door, no cut off required. Can be cut to fit doors down to 43" wide.

SCREWS USED FOR EXIT DEVICE INSTALLATION

SARGENT

ASSA ABLOY

ATTENTION:

ALL SCREWS ARE SHOWN IN ACTUAL SIZE SOME SCREWS WILL BE LONGER FOR DOORS OVER 1 3/4" THICK

CHASSIS MOUNTING SCREW (#10-24 X 3/4" PH. FL. HD. MACH. SCREWS, 4 PCS)

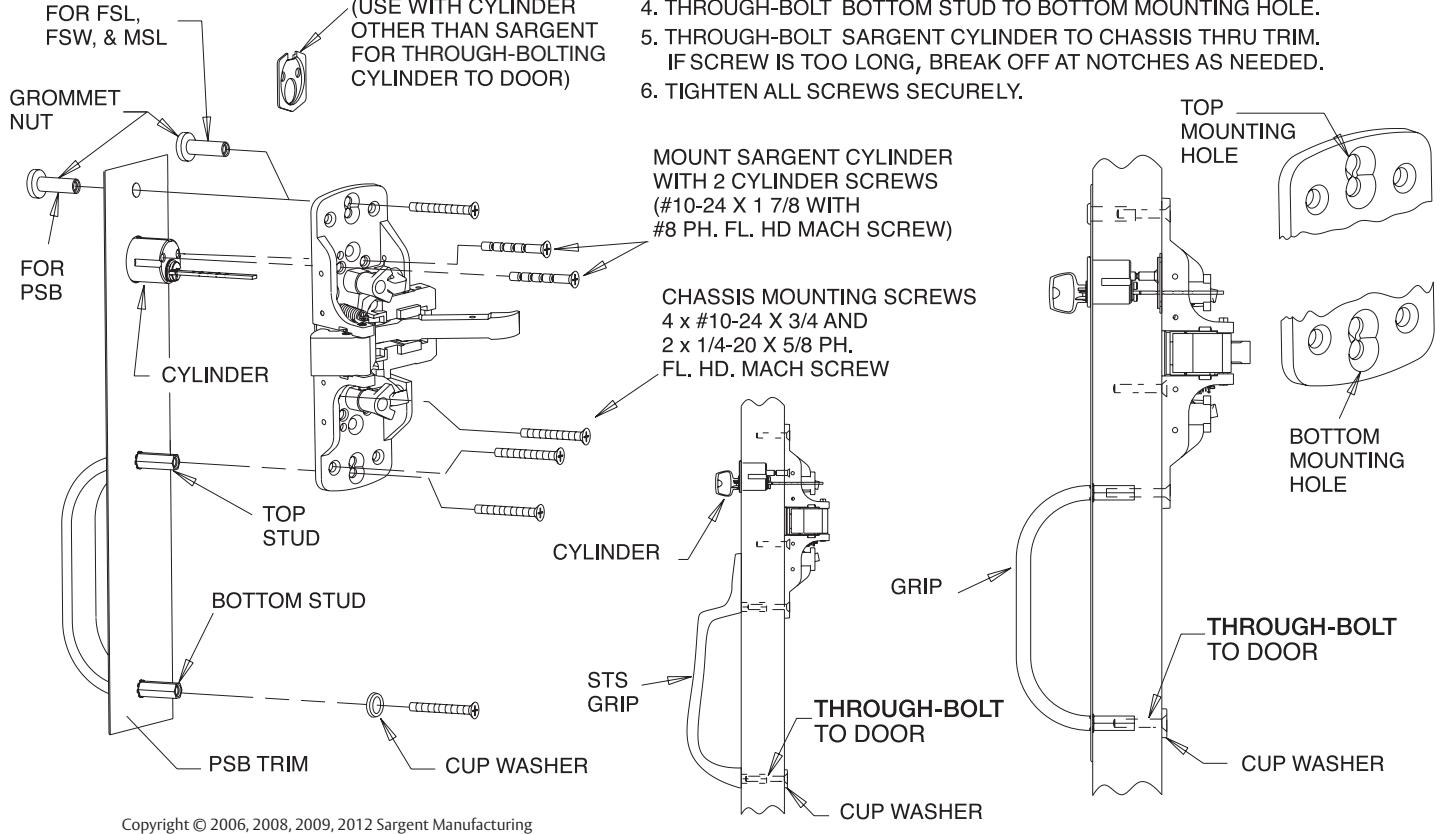

CYLINDER MOUNTING SCREW (STD) (#10-24 X 1-7/8" WITH #8 PH. FL. HD. MACH. SCREW)

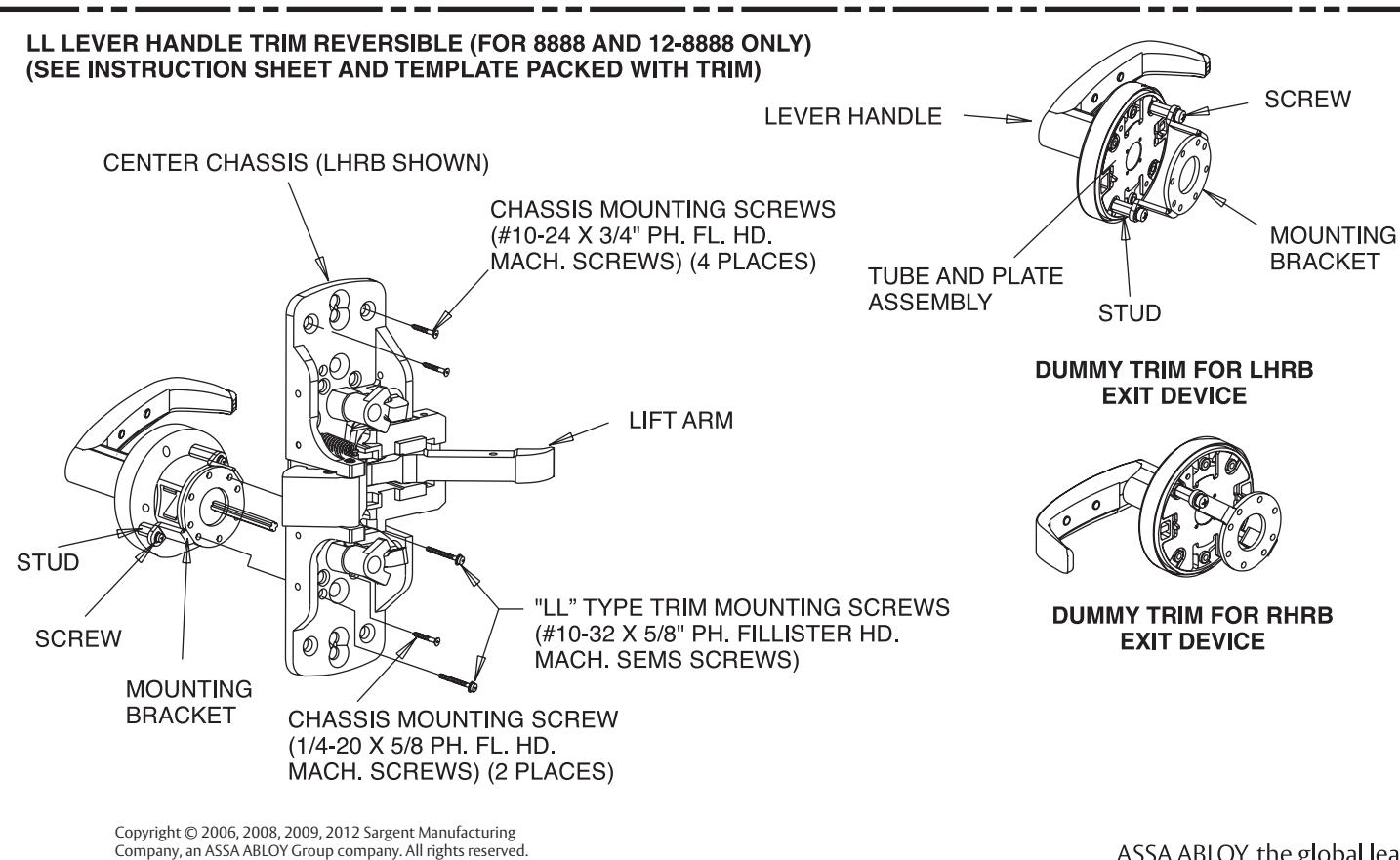

"LL" TYPE TRIM MOUNTING SCREW (#10-32 X 5/8" PH. FILLISTER HD. SEMS MACH. SCREW)

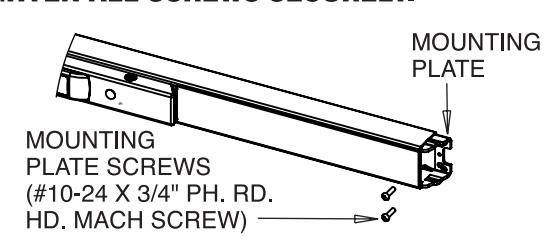

MOUNTING PLATE OR 649 STRIKE MOUNTING SCREW, INNER (#10-24 X 3/4" PH. RD. HD. MACH. SCREW)

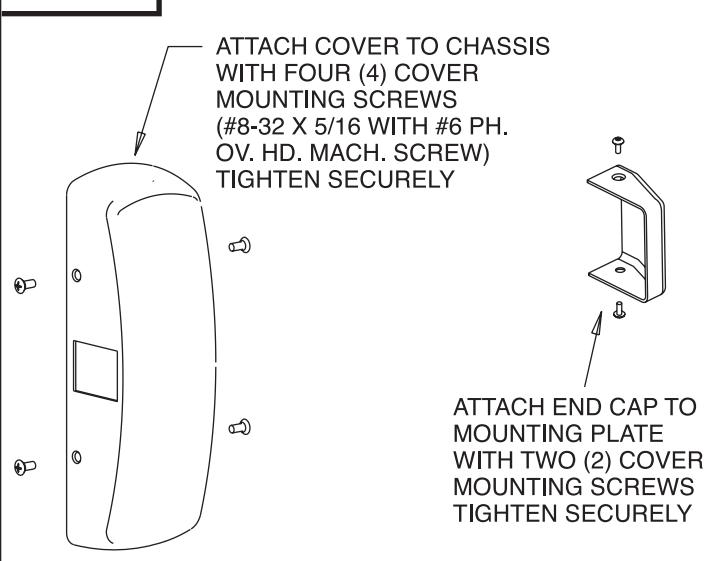

COVERS MOUNTING SCREW (#8-32 X 5/16" WITH #6 PH. OV. U'CUT HD. MACH. SCREW, 6 PCS)

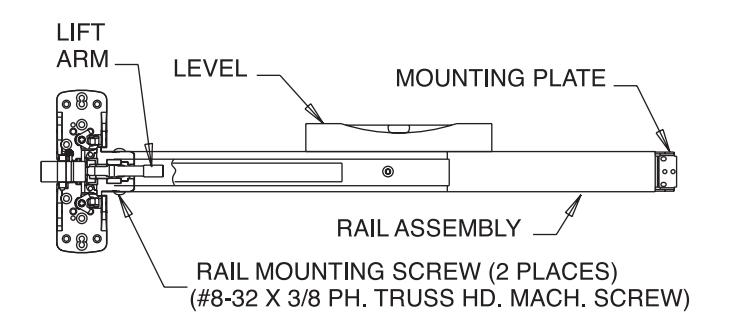

RAIL MOUNTING SCREW (#8-32 X 3/8" PH. TRUSS HEAD MACH. SCREW., 2 PCS)

CHASSIS MOUNTING SCREW (1/4"-20 X 5/8" PH. FL. HD. MACH. SCREWS., 2 PCS)

ET MOUNTING SCREW (1-3/4" DOOR)

PULL TRIM MOUNTING SCREW

(1-3/4" DOOR)(1/4"-20 X 1-3/8"

PH. FL. HD. MACH. SCREW)

(1/4"-20 X 2-3/8" PH. FL. HD.

MACH. SCREW)

STRIKE MOUNTING SCREW, OUTER (#10-24 X 3/4" PH. OV. HD. MACH. SCREW) (STEEL FRAME)

GROMMET NUT

STAR WASHER

CUP WASHER

THESE SCREWS PROVIDED FOR WOOD DOOR OR FRAME APPLICATIONS.

641 STRIKE MOUNTING SCREW (#10 X 1-1/4" PH. OV. HD. WOOD SCREW) (WOOD FRAME)

MOUNTING PLATE MOUNTING SCREW (WOOD DOOR) (#10 X 1-3/8" PH. RD. HD. WOOD SCREW, 3 PCS)

CHASSIS MOUNTING SCREW

(#10 X 1-1/4" PH. FL. HD. WOOD SCREW, 4 PCS)

FOR WOOD DOOR APPLICATION

CHASSIS MOUNTING SCREW FOR WOOD DOOR APPLICATION (#14 X 1-1/2" PH. FL. HD. WOOD SCREW, 2 PCS)

SCREW PACKS AND MISCELLANEOUS PARTS

PART No.	DESCRIPTION	PART No.	DESCRIPTION
68-3367	MOUNTING PACK (END CAP)	68-3922	MOUNTING PACK (CHASSIS)
68-3905	COVER SCREW PACK	809	TOUCH BAR REPLACEMENT KIT
68-2279	MOUNTING PACK (THRU BOLTING, 1-3/4" DOOR)	68-0879	END CAP
68-2280	MOUNTING PACK (THRU BOLTING, 2-1/4" DOOR)	68-0406	CHASSIS COVER
97-2953	STS SCREW PACK (1-3/4" DOOR)	97-2954	STS SCREW PACK (2-1/4" DOOR)
97-2955	PTB SCREW PACK (1-3/4" DOOR)	97-2966	PTB SCREW PACK (2-1/4" DOOR)
68-2596	HEX KEY DOGGING KIT	816	CYLINDER DOGGING KIT
01-4451	THRU BOLT 1/4"-20 X 2-3/8"	01-4372	THRU BOLT 1/4"-20 X 2 5/8"
01-4373	THRU BOLT 1/4"-20 X 2-7/8"	98-0028	LATCH BOLT SPRING

Copyright © 2006, 2008, 2009, 2012 Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

FOR ADDITIONAL INFORMATION CALL SARGENT CUSTOMER SERVICE AT: 1-800-727-5477

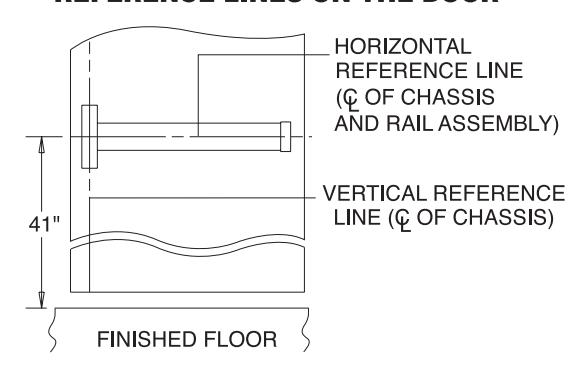

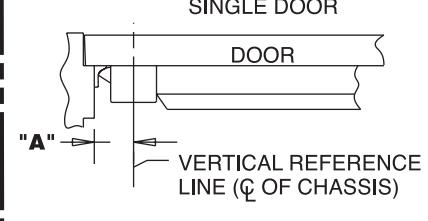

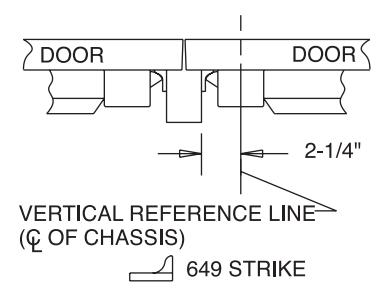

IDENTIFY TYPE OF INSTALLATION TO DETERMINE LOCATION OF VERTICAL REFERENCE LINE

PANIC EXIT DEVICE AND

FIRE EXIT DEVICE (12- PREFIX)

649

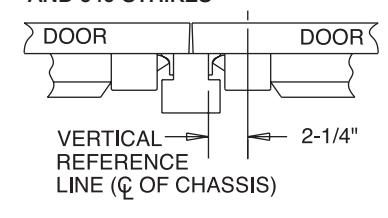

DOUBLE DOOR WITH 980 MULLION AND 649 STRIKES

PREPARE DOOR

PLASTIC TEMPLATE (RECOMMENDED METHOD): INSTALL STRIKE FIRST, THEN EXIT DEVICE

1. APPLY PLASTIC TEMPLATE ON DOOR USING REFERENCE LINES AND 649 STRIKE

2. MARK THEN SPOT AND DRILL HOLES

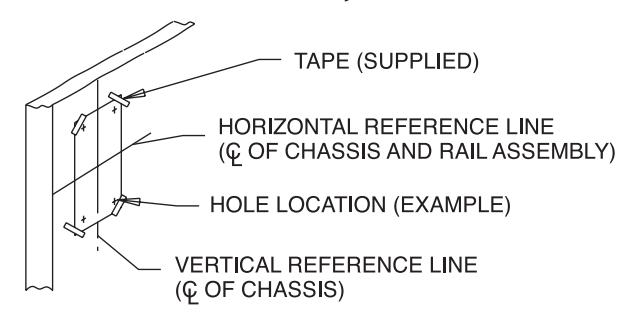

PAPER TEMPLATE: INSTALL EXIT DEVICE FIRST, THEN STRIKE

• 1. APPLY PROPER TEMPLATE ON DOOR USING REFERENCE LINES. ATTACH IT WITH SUPPLIED TAPE
• 2. SPOT AND DRILL HOLES

Copyright © 2006, 2008, 2009, 2012 Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

A6770P

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

(PREP DOOR FOR TRIM TO BE USED)

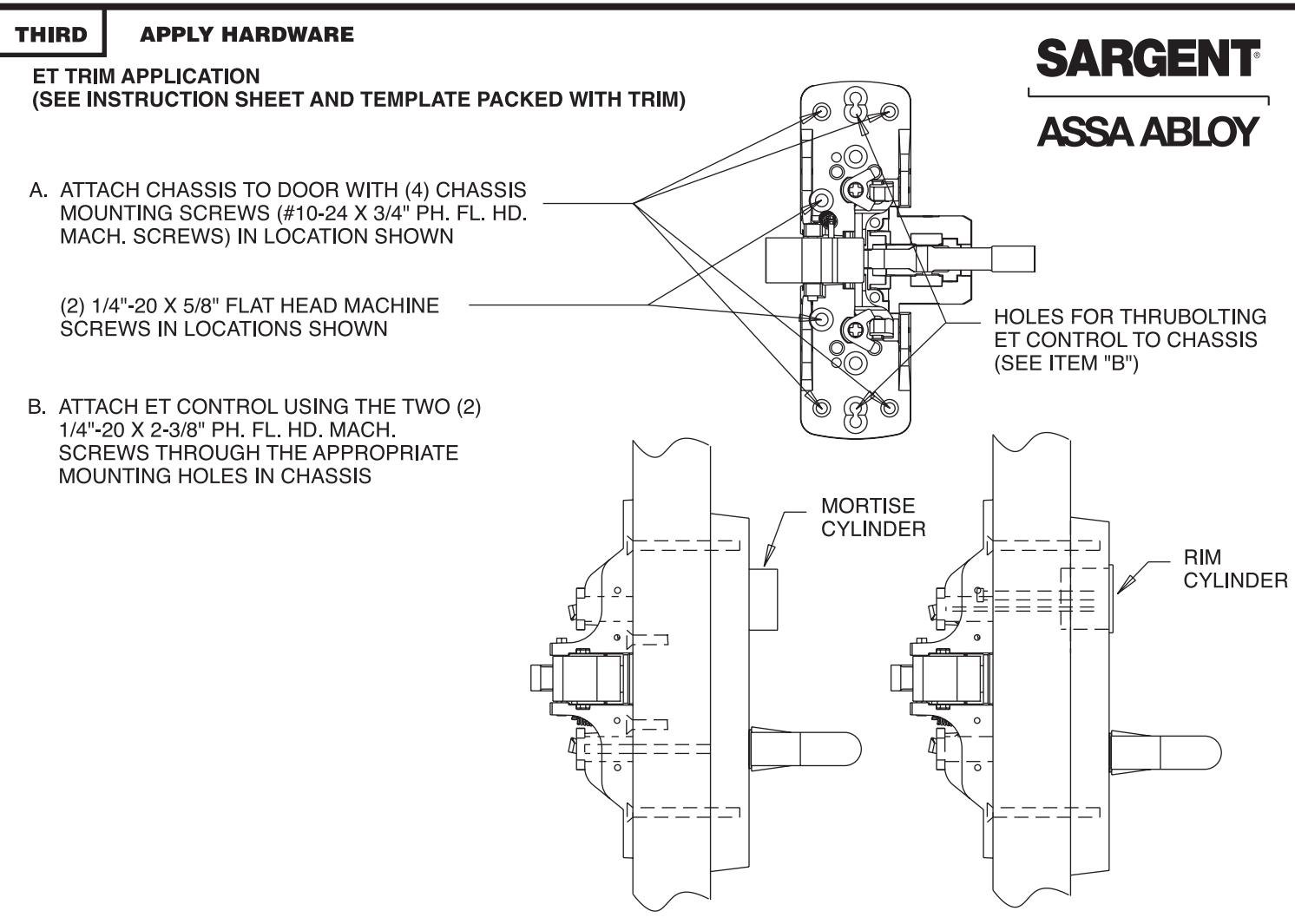

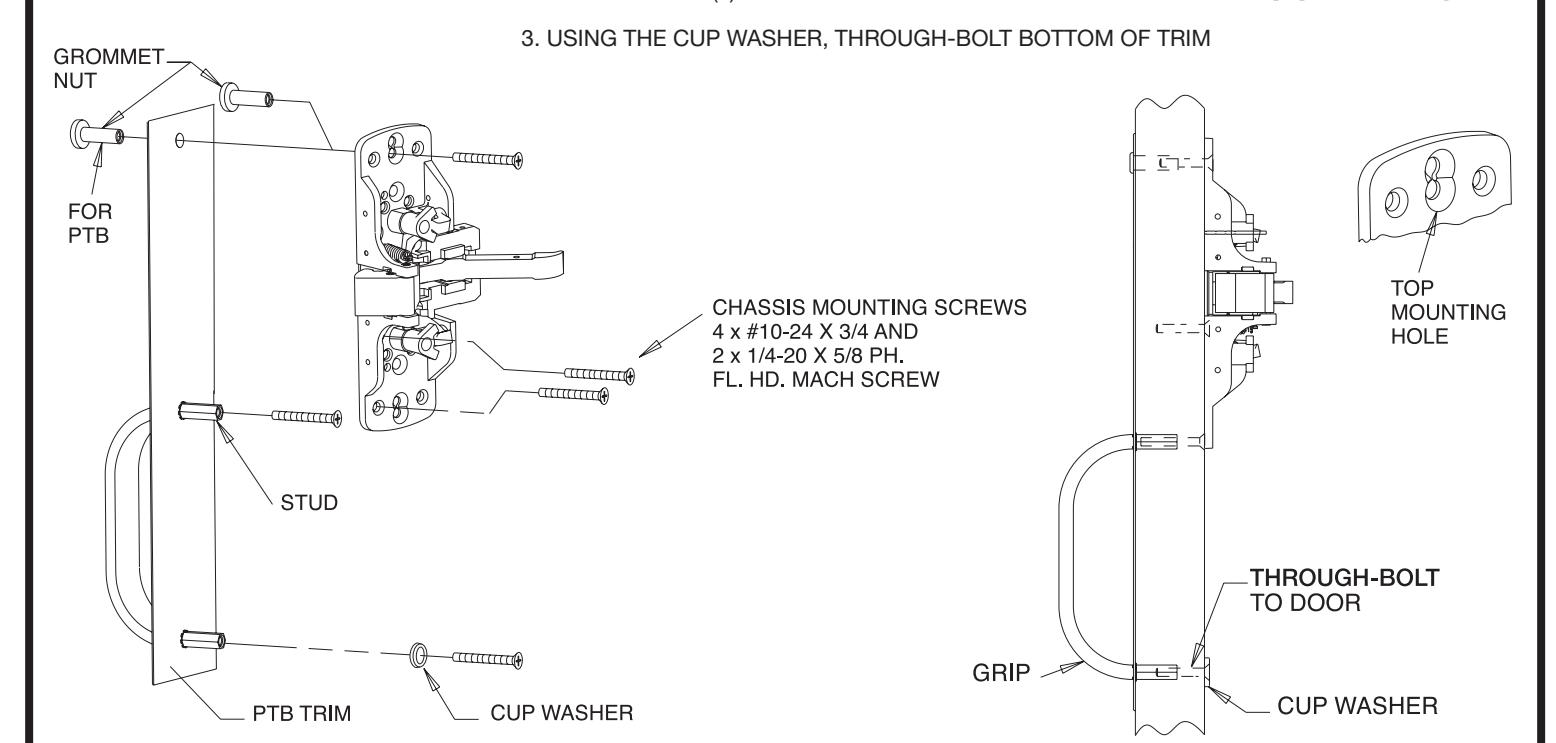

• 1. ATTACH CHASSIS TO THE SURFACE OF DOOR WITH (4) #10-24 x 3/4" SCREWS
• 2. POSITION TRIM ON DOOR AND THROUGH-BOLT TRIM TO CHASSIS WITH (2) 1/4-20 x 5/8" LONG SCREWS

Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

A6770P

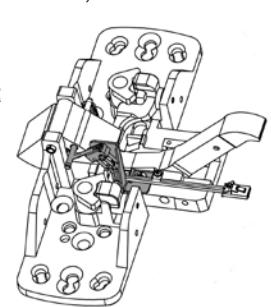

(-53) LATCH BOLT MONITERING ADJUSTMENT SIXTH

NOTE: THE LATCH BOLT SWITCH WILL COME PRE-SET FOR THE MOST COMMON APPLICATIONS. IF THE SENSITIVITY NEEDS TO BE ADJUSTED, FOLLOW THE STEPS BELOW.

• 1. LOOSEN SCREW AND NUT
• 2. ROTATE SWITCH (UP FOR QUICKER REACTION OR DOWN FOR SLOWER REACTION).
• 3. TIGHTEN SCREW AND NUT
• 4. CHECK OPERATION

NOTE: MAKE SURE SWITCH IS LOCATED ON THE MOUNTING POST AND THE SCREW AND NUT ARE SECURELY FASTENED
