801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • www.sdcsecurity.com • E-mail: service@sdcsecurity.com
INSTALLATION INSTRUCTIONS LRSG2R REQUEST-TO-EXIT ELR SWITCH KIT SARGENT MODELS: LR100SGK, LR100SGK-EM, LR100AWK, LR100CAK & LR100CAK-EM

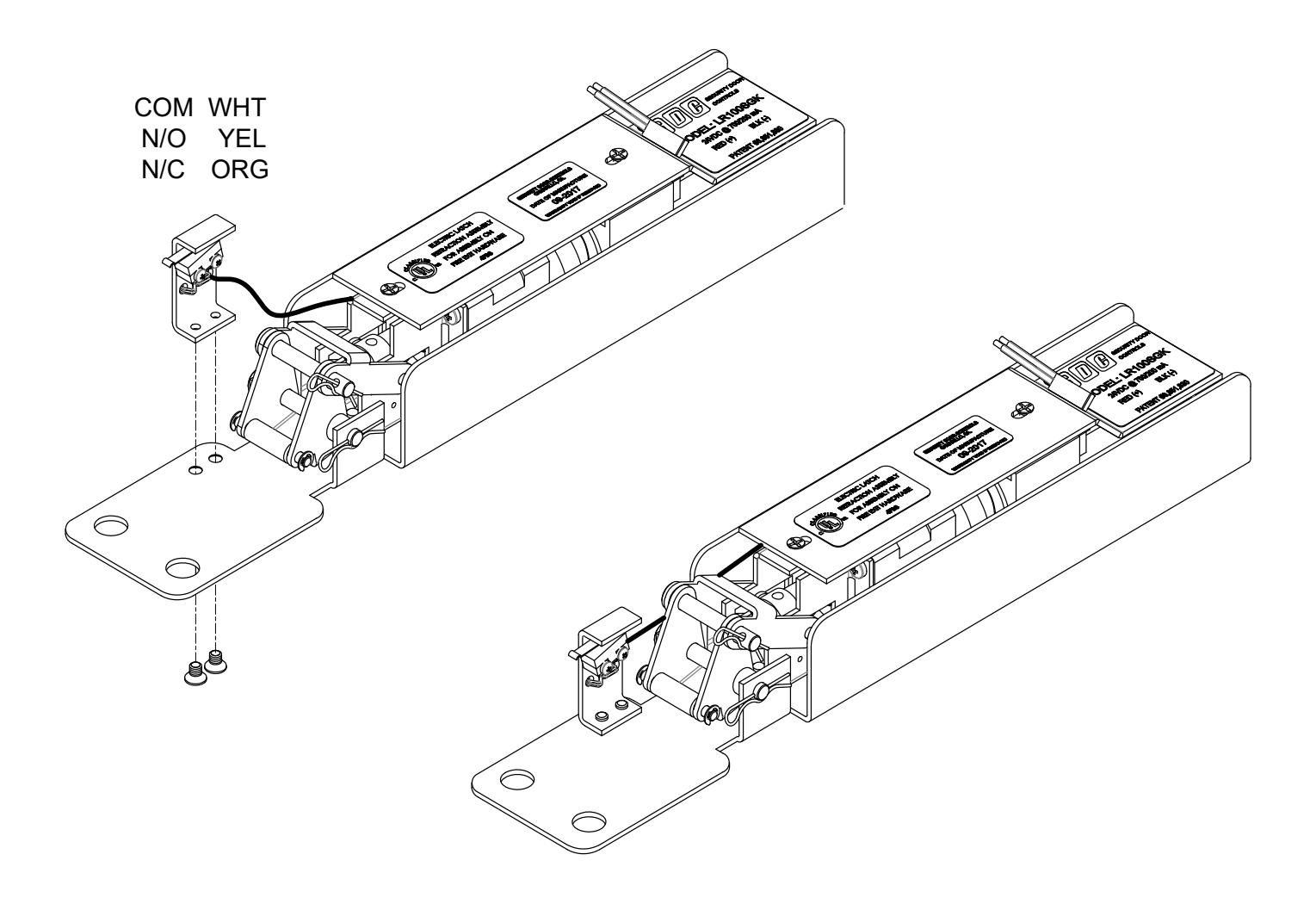

Attach the switch mounting bracket where shown. Run switch wires along the side of the housing.
