INSTALLATION INSTRUCTIONS LRSG1R REQUEST-TO-EXIT ELR SWITCH KIT SARGENT MODEL IP100SGK

801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • www.sdcsecurity.com • E-mail: service@sdcsecurity.com

INSTALLATION INSTRUCTIONS LRSG1R REQUEST-TO-EXIT ELR SWITCH KIT SARGENT MODEL IP100SGK

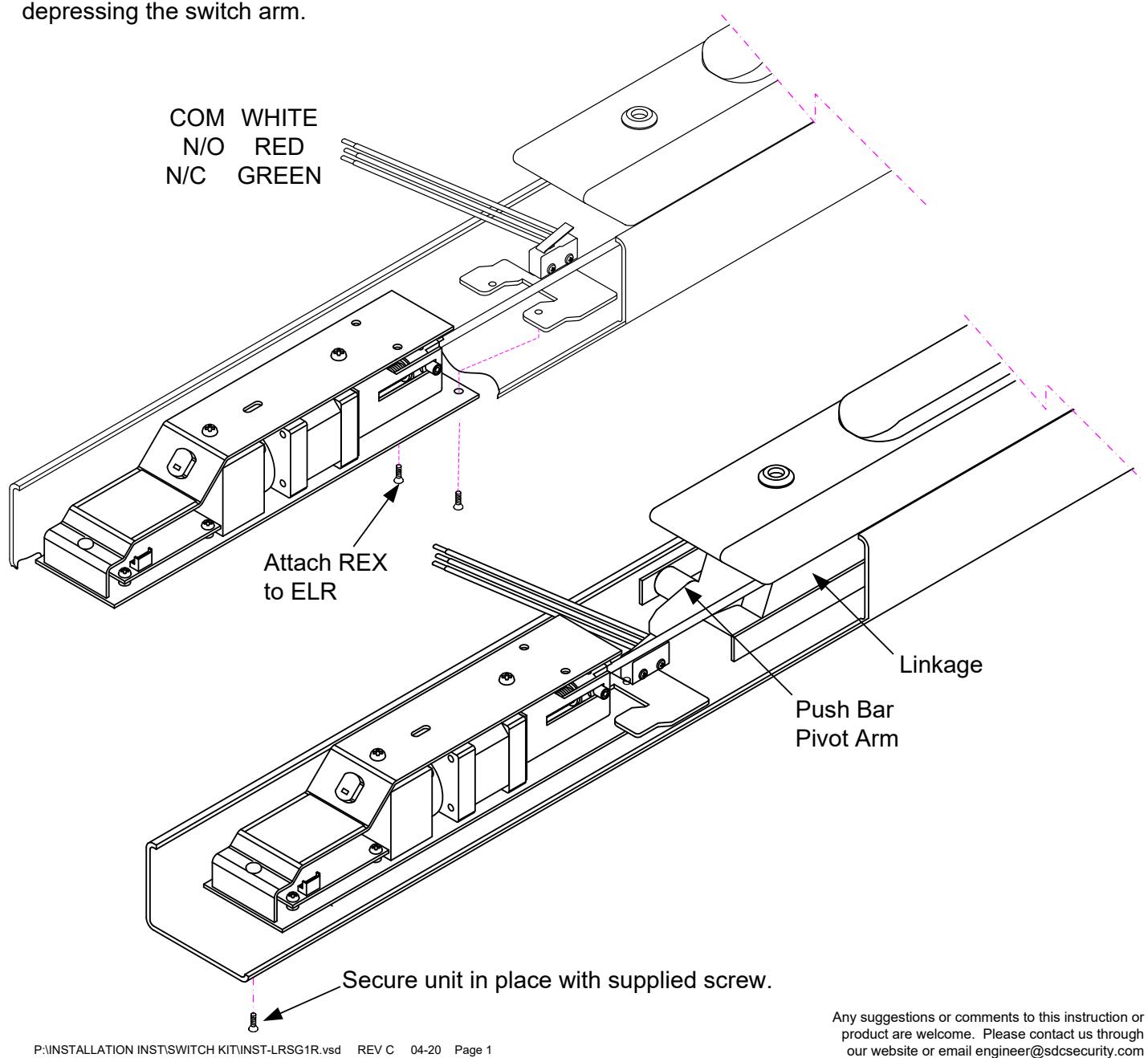

Attach the REX switch bracket to the ELR unit with the supplied screws. Attach ELR/RES assembly to linkage (refer to ELR Installation Instructions). Insert REX switch assembly into device under the linkage. Depress the Push Bar to raise the pivot arm. Slide the ELR and REX assembly under the pivot arm and secure in place by attaching the ELR to the Device base with the supplied screw (refer to ELR Installation Instructions). Release the Push Bar and make sure the pivot arm is properly
