INSTALLATION INSTRUCTIONS LRKWK1R KAWNEER REX SWITCH KIT MODEL 1786 RIM DEVICE

Open the original PDF document

View PDF

801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • Fax: (805) 494-8861 www.sdcsecurity.com • E-mail: service@sdcsecurity.com

INSTALLATION INSTRUCTIONS LRKWK1R KAWNEER REX SWITCH KIT MODEL: 1786 RIM DEVICE

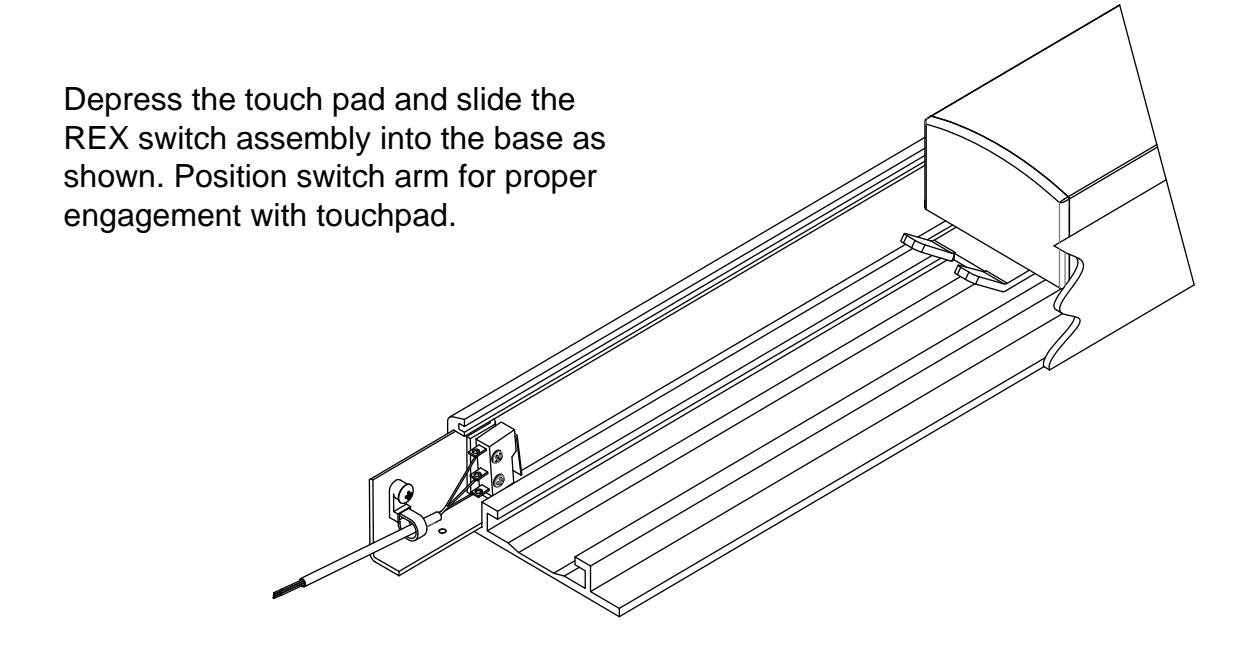

Tighten the set screw to lock the assembly in place. Release and depress touch pad several times to check that it is making proper contact with the switch.

WIRING DATA

WHT = COM

ORG = N/C

YEL = N/O

5AMP @ 125VAC RESISTIVE
