INSTALLATION INSTRUCTIONS LRIDC1L-LRIDC1R FIELD RETROFIT LATCH STATUS REX SWITCH KIT IDC EXIT DEVICES

801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • www.sdcsecurity.com • E-mail: service@sdcsecurity.com

LRIDC1L / LRIDC1R INSTALLATION INSTRUCTIONS FIELD RETROFIT LATCH STATUS/REX SWITCH KIT

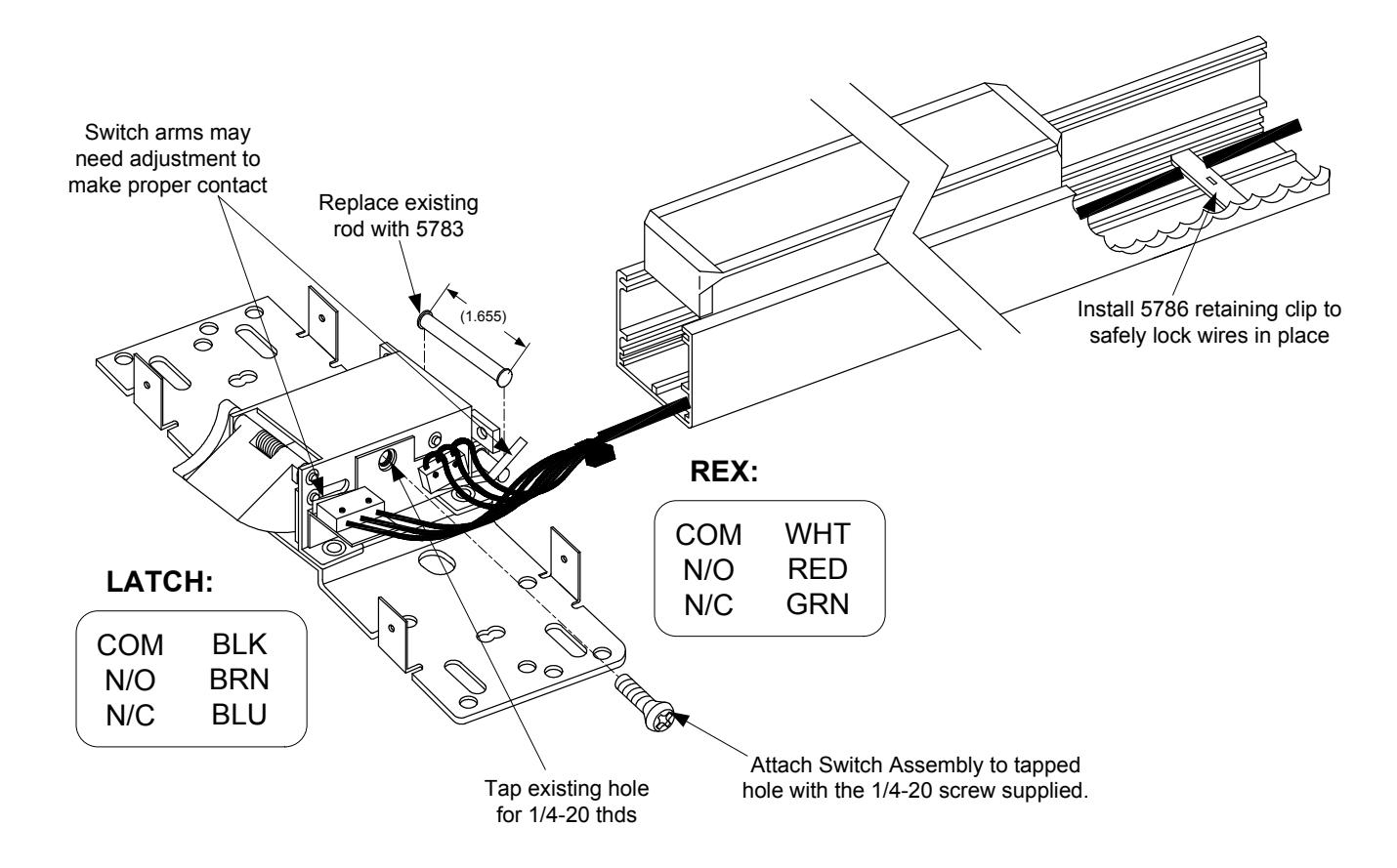

Remove Head Cover and Head. Replace existing rod with SDC P/N 5783. Tap existing hole for 1/4-20 threads. Attach switch assembly to the tapped hole with the 1/4-20 screw supplied. Route wires thru extrusion as shown and use 5786 retaining clip to safely lock wires in place. Replace Head and Head Cover

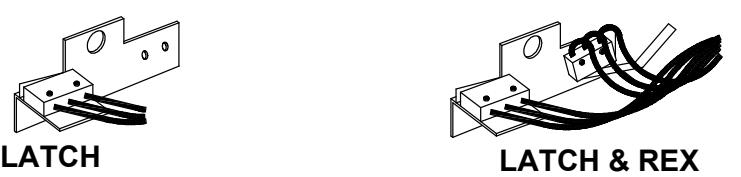

LRIDC1R LRIDC1L LRIDC1RL
