INSTALLATION INSTRUCTIONS LRFR1R FALCON IR 24 & 25 SERIES REQUEST-TO-EXIT SWITCH KIT

801 Avenida Acaso, Camarillo, Ca. 93041 • (805) 494-0622 • Fax: (805) 494-8861 www.sdcsecurity.com • E-mail: service@sdcsecurity.com

LRFR1R INSTALLATION INSTRUCTIONS FALCON IR 24 & 25 SERIES REQUEST-TO-EXIT SWITCH KIT

A. Device Preparation:

• 1. Remove the following components: The Device Endcap and Mounting Bracket, Coverplate and the Pushbar Endcap.

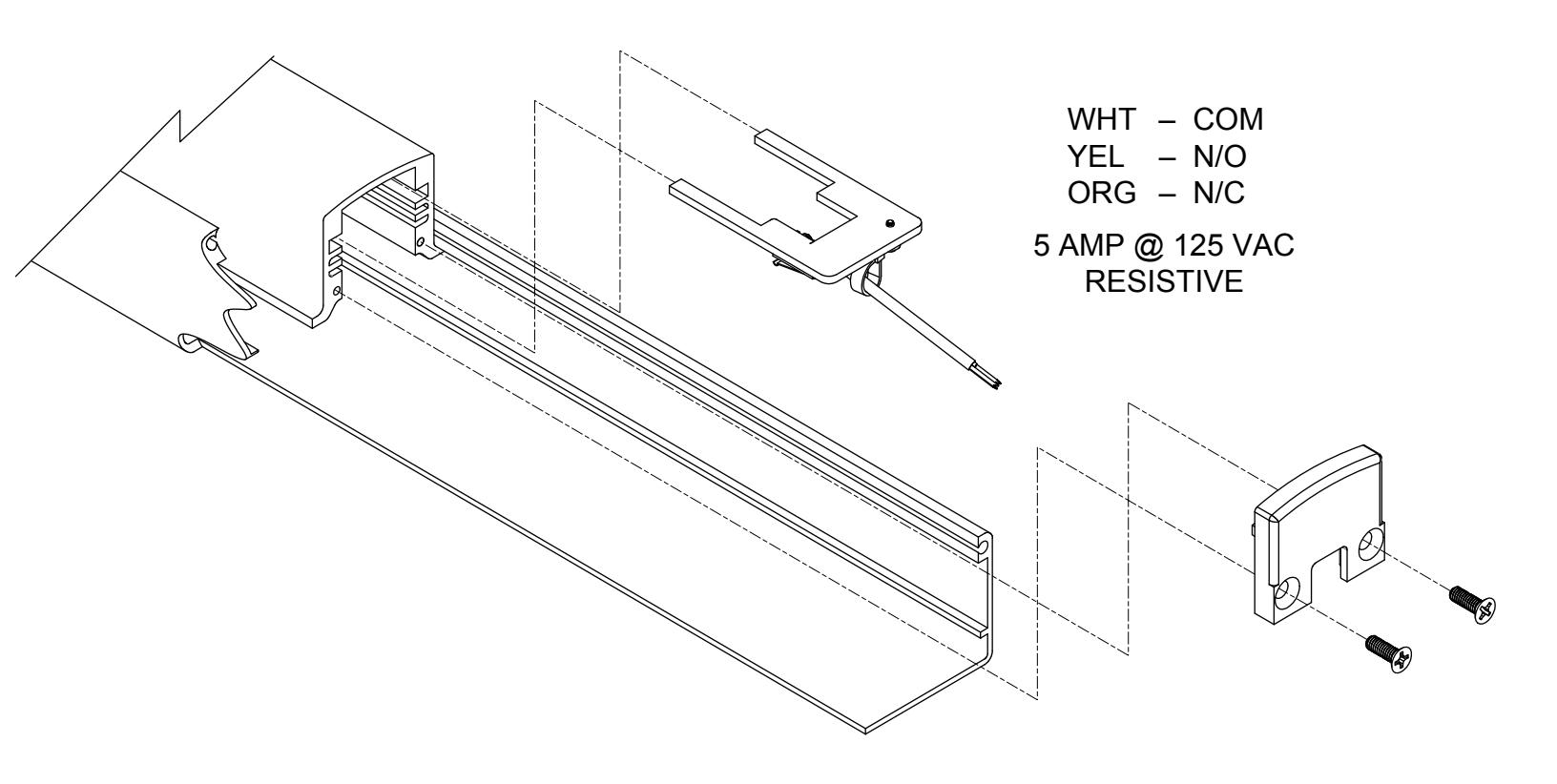

• 2. Insert the switch assembly into the top slot of the Pushbar until it stops against the Pushbar Hinge.
• 3. Route the wires out and re-assemble the device.
