LRFC1R INSTALLATION INSTRUCTIONS FIRST CHOICE REX SWITCH KIT MODELS: 3600 & 3700
WIRING DATA
WHT = COM
YEL = N/C
ORG = N/O
5AMP @ 125VAC RESISTIVE

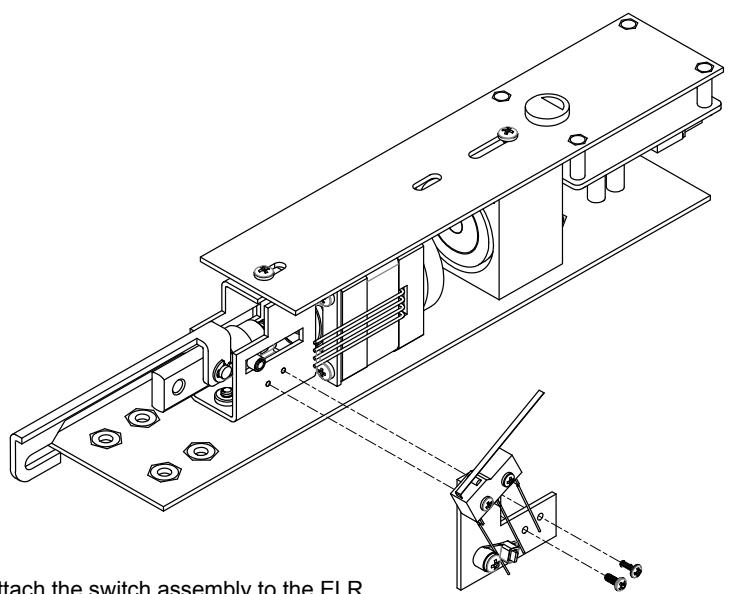

Attach the switch assembly to the ELR unit with the supplied screws as shown.
