LRFA1R INSTALLATION INSTRUCTIONS FALCON (DOR-O-MATIC) REX SWITCH KIT MODELS: 1690 & 1790
WIRING DATA
WHT = COM
YEL = N/C
ORG = N/O
5AMP @ 125VAC RESISTIVE

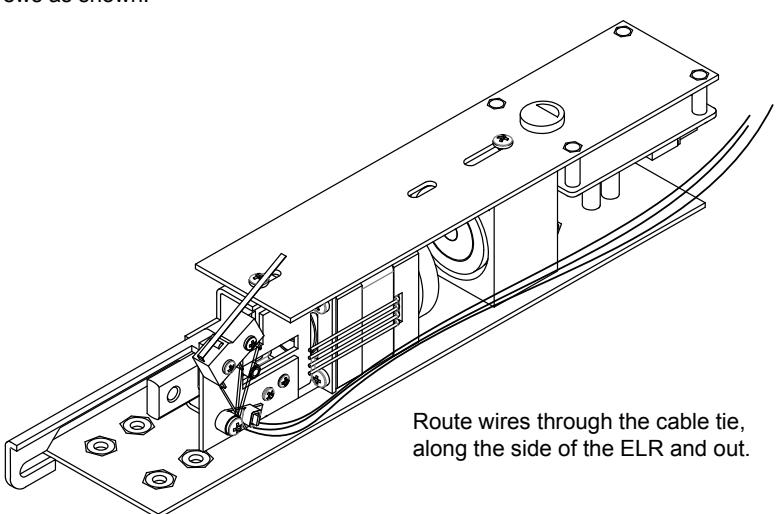

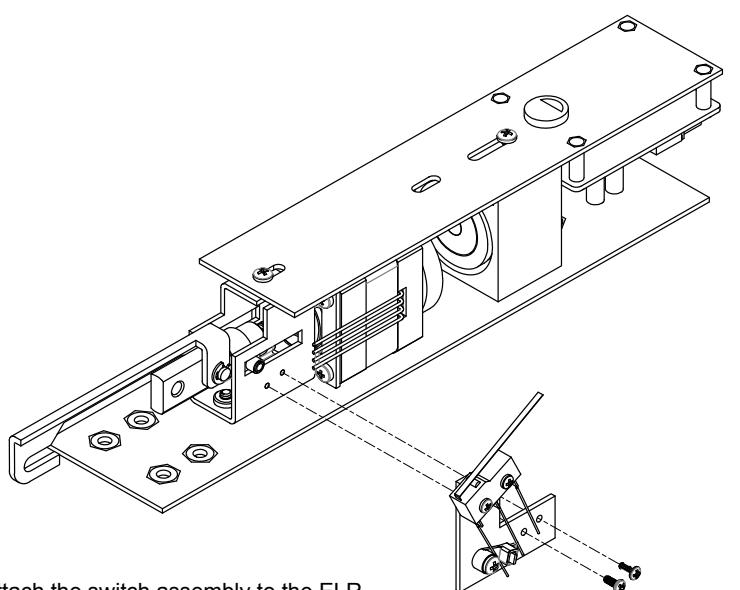

Attach the switch assembly to the ELR unit with the supplied screws as shown.
