INSTALLATION INSTRUCTIONS LRDX1R DETEX PUSH BAR REX SWITCH MODELS 10, 20, 40, 50, 60 & 80 SERIES

801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • www.sdcsecurity.com • E-mail: service@sdcsecurity.com

LRDX1R INSTALLATION INSTRUCTIONS DETEX PUSH BAR REX SWITCH MODELS: 10, 20, 40, 50, 60 & 80 SERIES

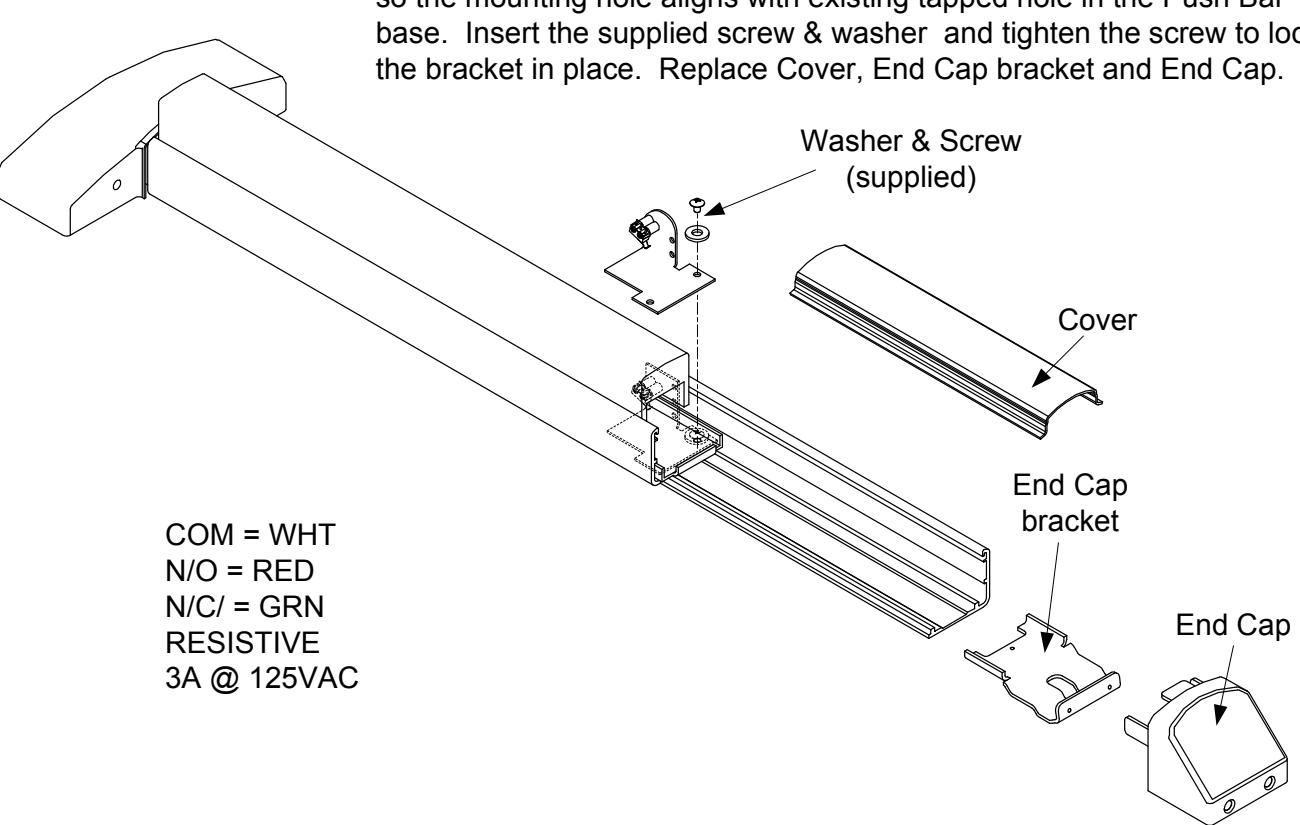

Remove the End Cap, End Cap bracket and Cover. Slide the REX bracket assembly into the device and under the push bar mounting plate so the mounting hole aligns with existing tapped hole in the Push Bar base. Insert the supplied screw & washer and tighten the screw to lock the bracket in place. Replace Cover, End Cap bracket and End Cap.

Applications

Access Control REX: Provides an authorized request-to-exit signal to activate an access control REX input, shunting the access control alarm output.

Magnetic Lock REX: Releases lock for uninhibited egress when wired in series to lock power, or used to activate a time delay trigger input to release lock for egress.

Exit Alarm: May be used to activate an external alarm horn located adjacent to the opening.

Remote Annunciation: Indicates door use when connected to a remote annunciator,
