801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • www.sdcsecurity.com • E-mail: service@sdcsecurity.com

INSTALLATION INSTRUCTIONS LRCA2R REQUEST-TO-EXIT ASSEMBLY CAL-ROYAL MODELS 7700, 7760 / F7700 & F7760

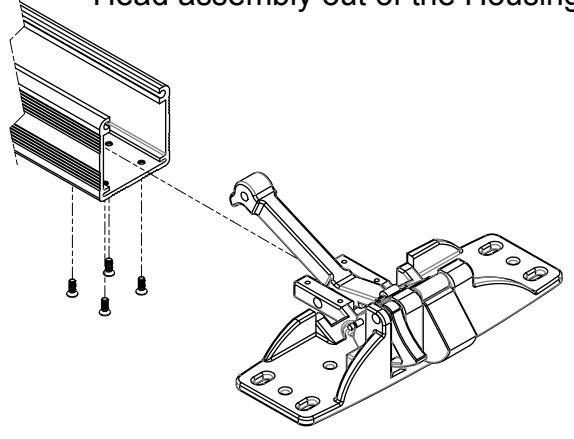

Carefully remove the Head Cover (not shown) and the four screws holding the Head to the Housing. Slide the Head assembly out of the Housing.

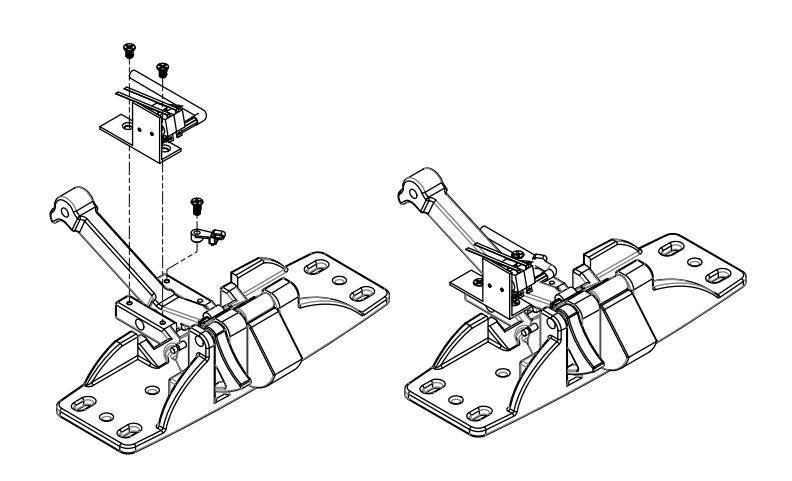

Attach Switch Assembly to existing holes in the Head. Attach Cable Tie where shown and insert cable.

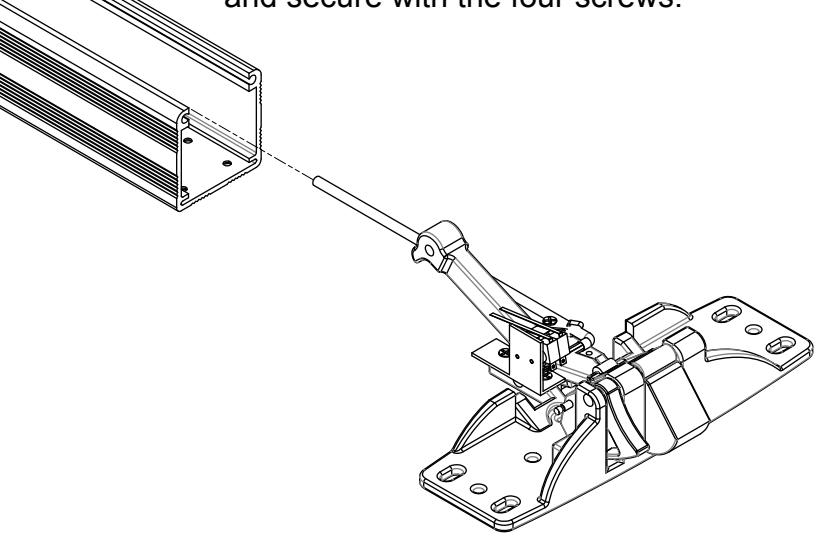

Route Cable along the side of the housing. Slide Head back into Housing and secure with the four screws.

WIRING DETAIL

COM N/O N/C BLK WHT RED

REX 1:	REX 2:

COM N/O N/C BRN GRN BLU
