INSTALLATION INSTRUCTIONS LR100YDK YALE ELECTRIC LATCH RETRACTION DEVICE KIT MODELS 7100, 7100-2, 7110, 7120, 7200 & 7210 36-48 INCH OPENING

Open the original PDF document

[t] 800.413.8783 805.494.0622 E-mail: service@sdcsecurity.com 801 Avenida Acaso, Camarillo, CA 93012 PO Box 3670, Camarillo, CA 93011

INSTALLATION INSTRUCTIONS

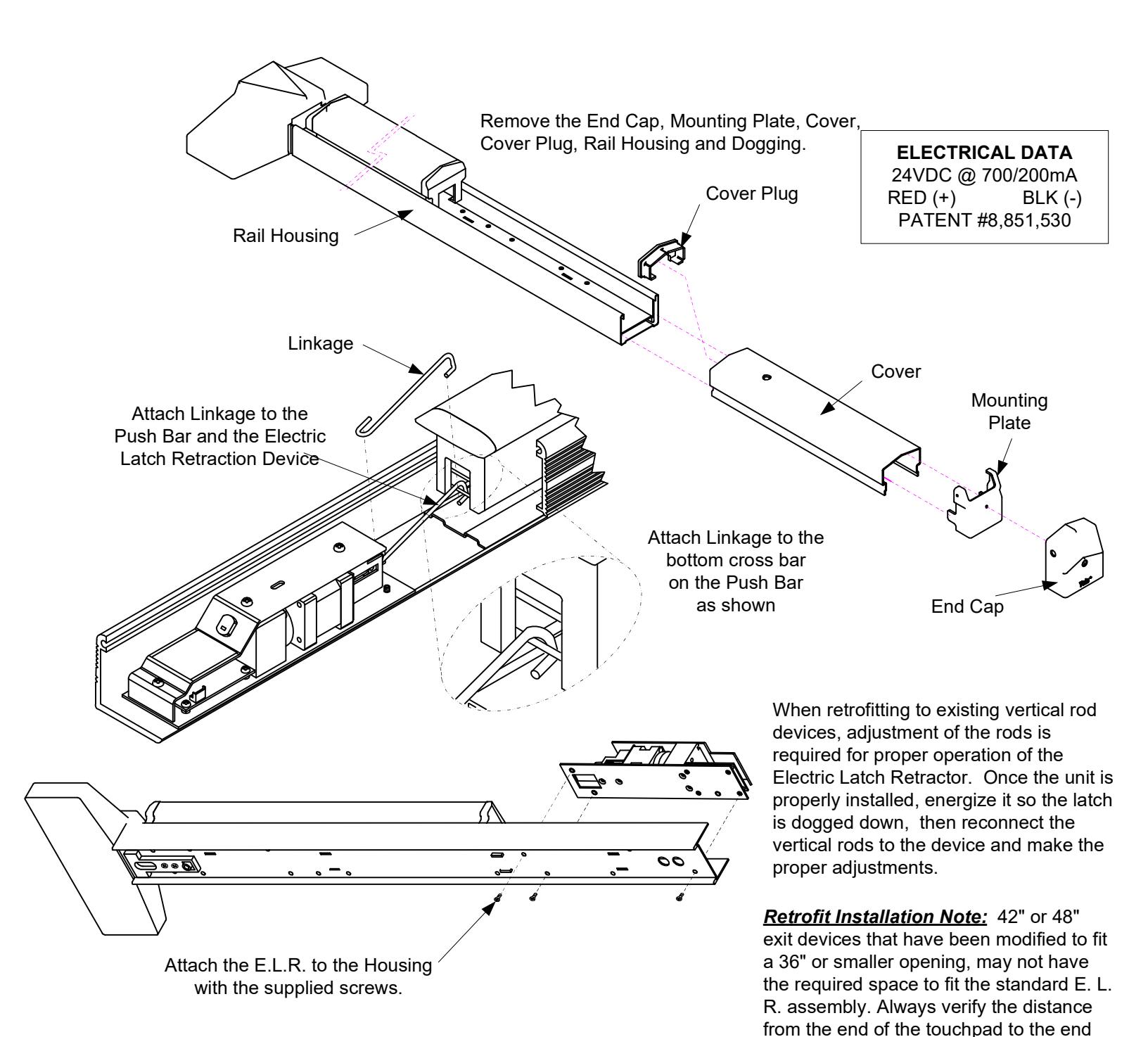

Replace Housing Cover, Cover with Plug, End Cap and the End Cap Cover.

Any suggestions or comments to this instruction or product are welcome. Please contact us through our website or email engineer@sdcsecurity.com

rail, and if necessary, consult with the

factory for appropriate selection.
