INSTALLATION INSTRUCTIONS LR100YDK-EM YALE ELECTRIC LATCH RETRACTION DEVICE KIT MODELS 7100, 7100-2, 7110, 7120, 7200 & 7210 32 INCH OPENING

[t] 800.413.8783 805.494.0622 E-mail: service@sdcsecurity.com 801 Avenida Acaso, Camarillo, CA 93012 PO Box 3670, Camarillo, CA 93011

INSTALLATION INSTRUCTIONS

LR100YDK-EM YALE ELECTRIC LATCH RETRACTION DEVICE KIT MODELS: 7100, 7100-2, 7110, 7120, 7200 & 7210

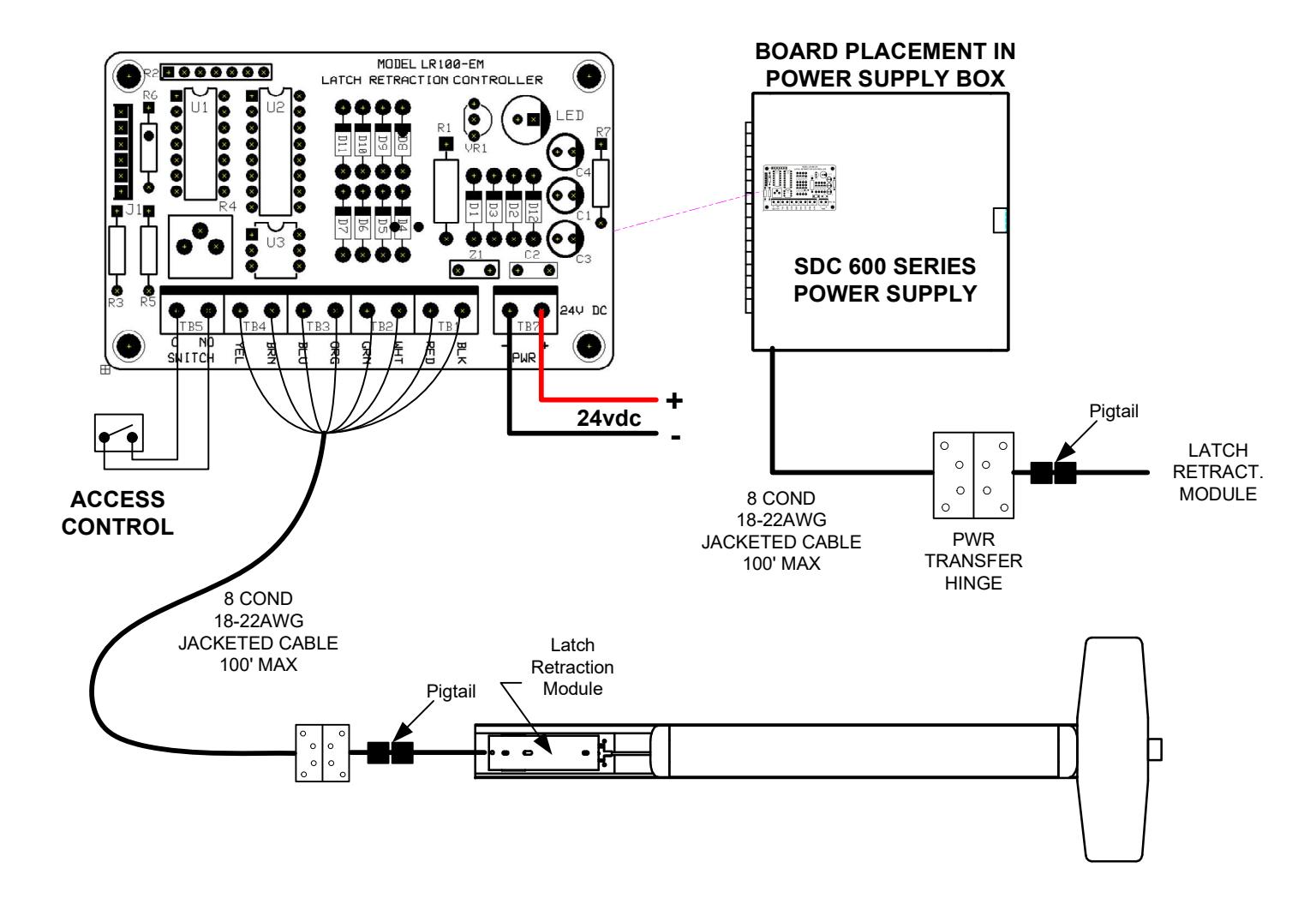

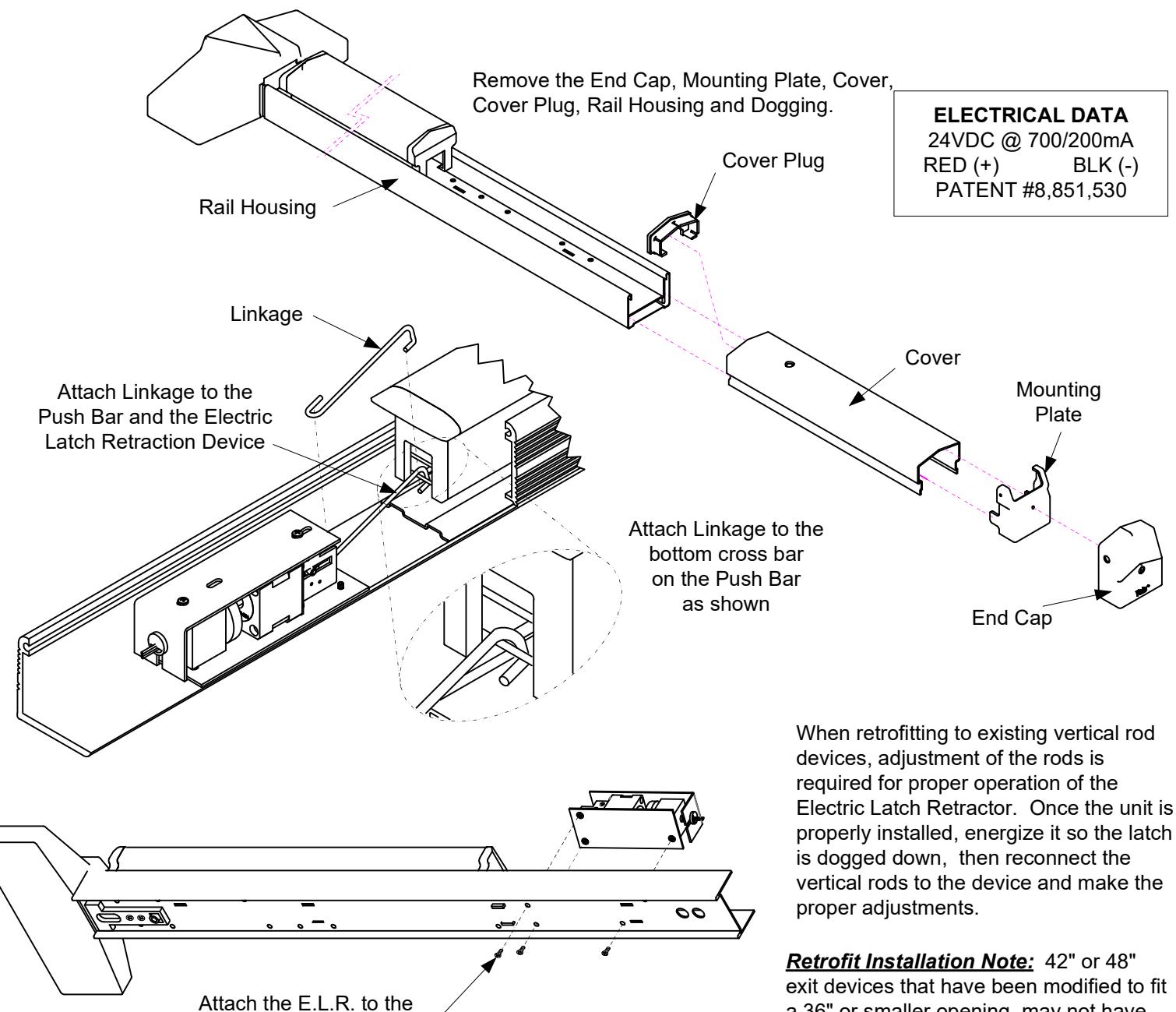

Replace Housing Cover, Cover with Plug, End Cap and the End Cap Cover.

Housing with the supplied

screws.

exit devices that have been modified to fit a 36" or smaller opening, may not have the required space to fit the standard E. L. R. assembly. Always verify the distance from the end of the touchpad to the end rail, and if necessary, consult with the factory for appropriate selection.

Retrofit Installation Note: 42" or 48" exit devices that have been modified to fit a 36" or smaller opening, may not have the required space to fit the standard E. L. R. assembly. Always verify the distance from the end of the touchpad to the end rail, and if necessary, consult with the factory for appropriate selection.

NOTE Retro-Fitting Vertical Rod Devices:

Before retro-fitting an electric latch assembly into a vertical device, the following must be done to ensure proper alignment. Disconnect the vertical rods from the device. Install the electric latch assembly as shown above. Once the ELR is properly installed energize it so that the push pad is dogged down, by doing so it will allow for proper alignment for the vertical rods. Finally reconnect the vertical rods to the device and make the proper adjusments.
