INSTALLATION INSTRUCTIONS LR100SDC FOR SDC 36-48 EXIT DEVICE OPENING ELECTRIC LATCH RETRACTION DEVICE KIT

801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • www.sdcsecurity.com • E-mail: service@sdcsecurity.com

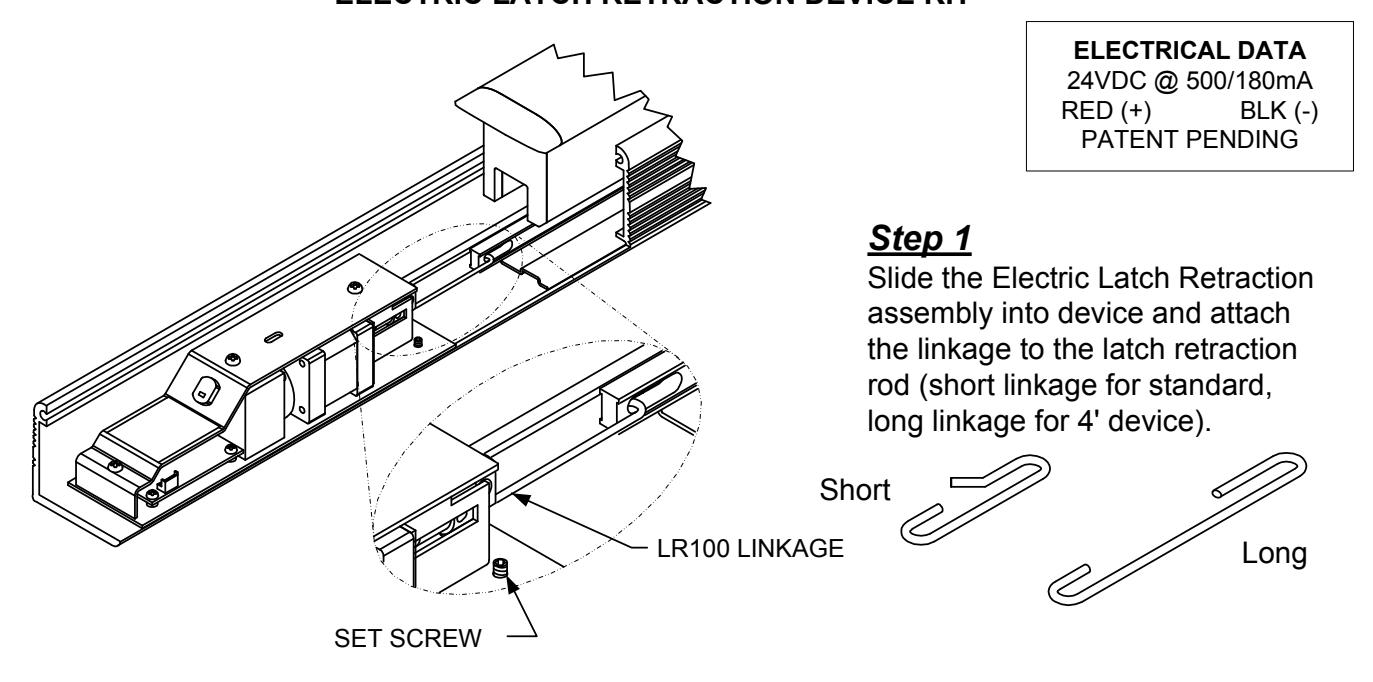

INSTALLATION INSTRUCTIONS LR100SDC ELECTRIC LATCH RETRACTION DEVICE KIT

Step 2

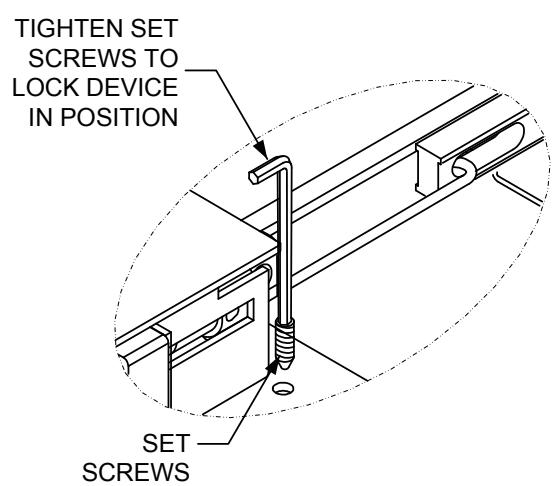

Carefully slide the assembly back out until the linkage JUST makes contact with the latch retraction rod. Tighten set screws.

NOTE Retro-Fitting Vertical Rod Devices:

Before retro-fitting an electric latch assembly into a vertical device, the following must be done to ensure proper alignment. Disconnect the vertical rods from the device. Install the electric latch assembly as shown above. Once the ELR is properly installed energize it so that the push pad is dogged down, by doing so it will allow for proper alignment for the vertical rods. Finally reconnect the vertical rods to the device and make the proper adjusments.
