INSTALLATION INSTRUCTIONS LR100PDK ELECTRIC LATCH RETRACTION DEVICE KIT PHI-STANLEY MODELS 2101, 2201, 2400, 2600, 2801, 5100 & 5200
Open the original PDF document
View PDF
801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • www.sdcsecurity.com • E-mail: service@sdcsecurity.com
* Visit: sdcsec.com/phi For Installation video
our website or email engineer@sdcsecurity.com
INSTALLATION INSTRUCTIONS LR100PDK ELECTRIC LATCH RETRACTION DEVICE KIT PHI/STANLEY MODELS: 2101, 2201, 2400, 2600, 2801, 5100 & 5200

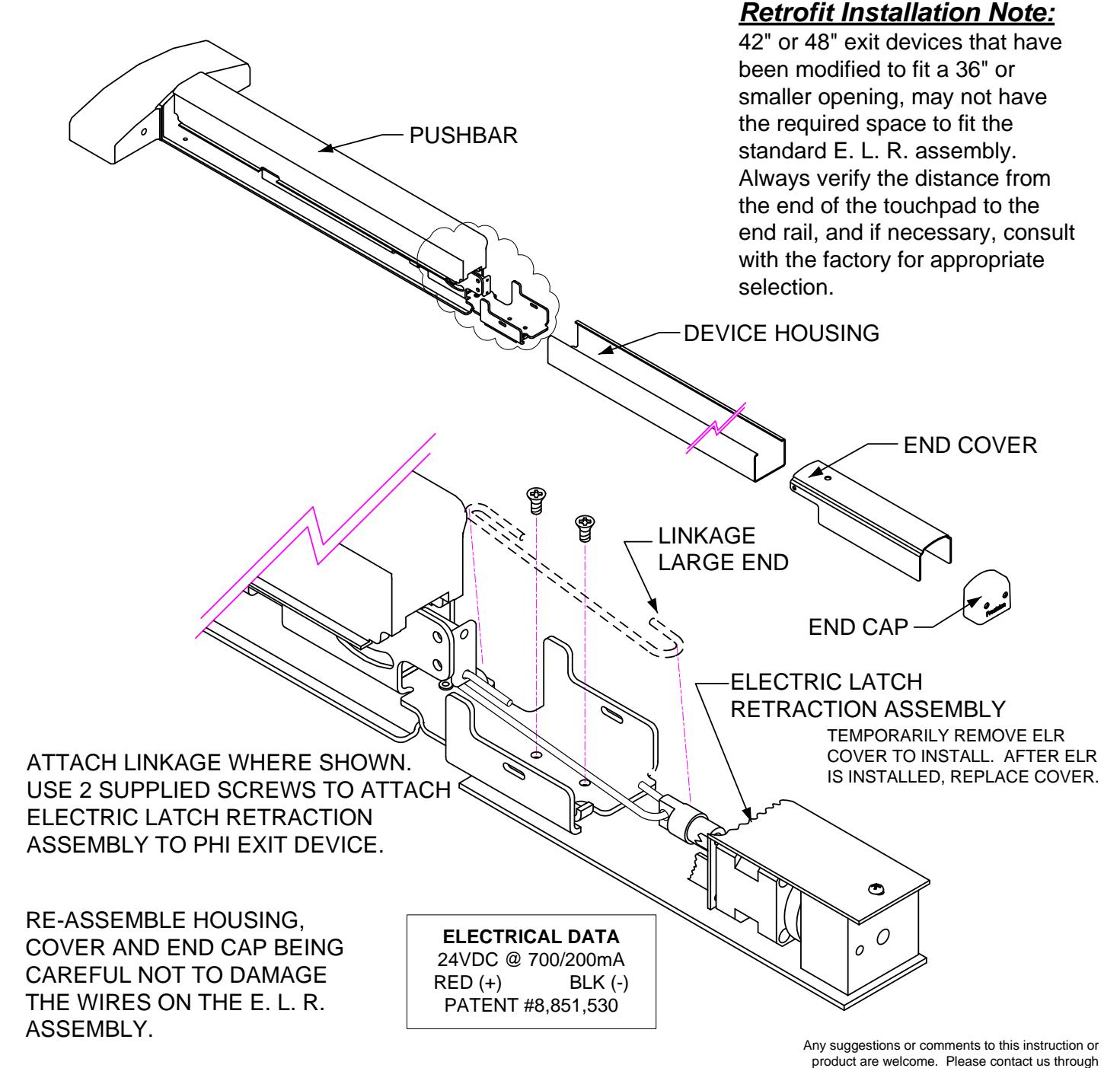

Carefully remove the End Cap, End Cover, Device Housing and Pushbar. If present in device, remove dogging. Attach E. L. R. Assembly to Exit Device.
