INSTALLATION INSTRUCTIONS LR100FRK ELECTRIC LATCH RETRACTION KIT MODELS 24-R, 24-V, 24-C, F-24-R, F-24-V, F-24-C, 25-R, 25-V, 25-C, F-25-R, F-25-V & F-25-C
Open the original PDF document
View PDFINSTALLATION INSTRUCTIONS
LR100FRK ELECTRIC LATCH RETRACTION KIT MODELS: 24-R, 24-V, 24-C, F-24-R, F-24-V, F-24-C, 25-R, 25-V, 25-C, F-25-R, F-25-V & F-25-C

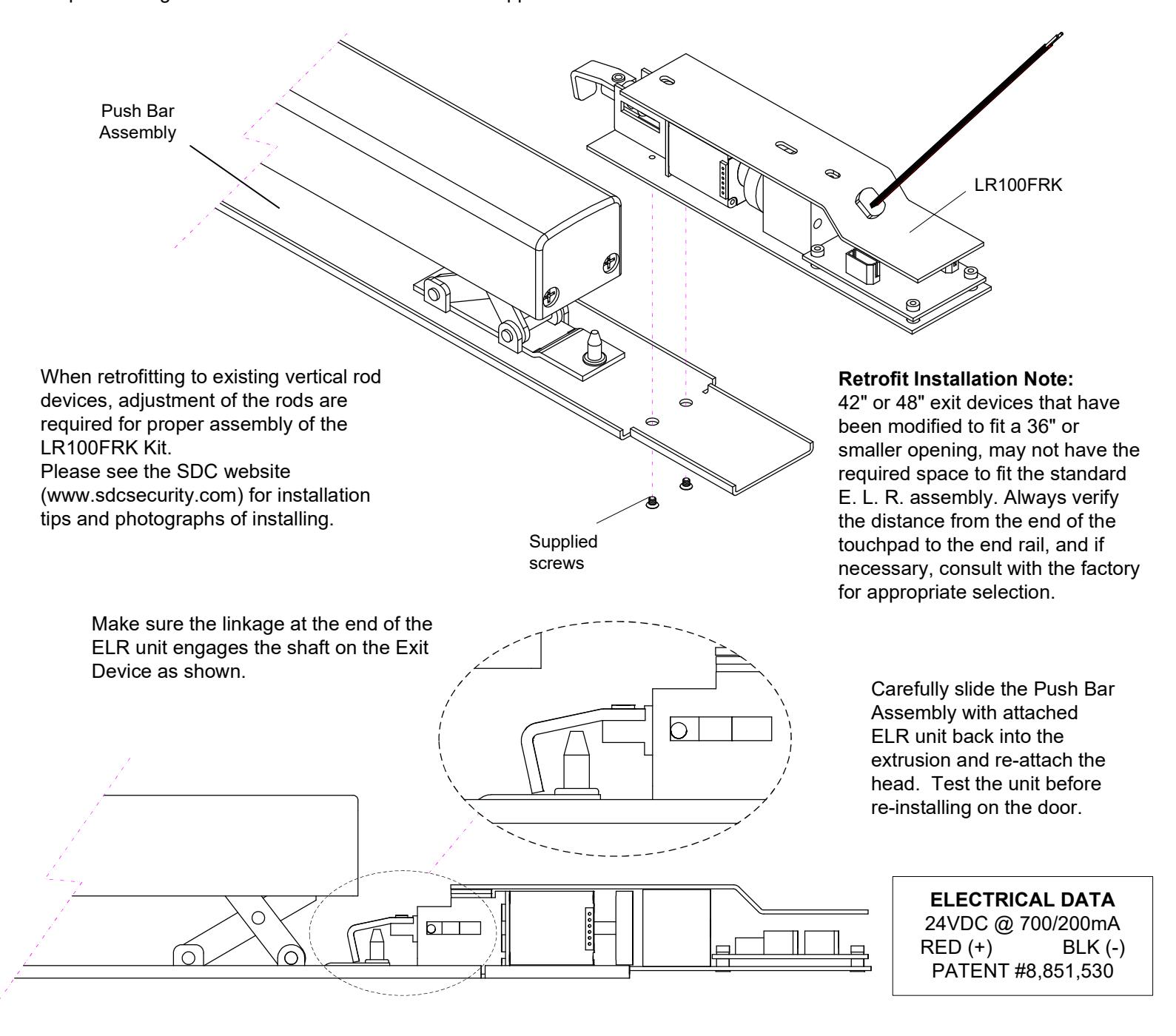

Remove the Falcon IR Exit Device from the door, detach the head and slide the Push Bar assembly from the extrusion (Remove any pre-existing dogging). Fasten the LR100FRK ELR unit to the Push Bar Assembly using the pre-existing holes located on the base. Use the supplied screws that come with kit to secure to base.
