INSTALLATION INSTRUCTIONS LR100DXK DETEX ELECTRIC LATCH RETRACTION DEVICE KIT MODELS 10, 20, 40, 50, 60 & 80 SERIES

801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • www.sdcsecurity.com • E-mail: service@sdcsecurity.com

STEP 3

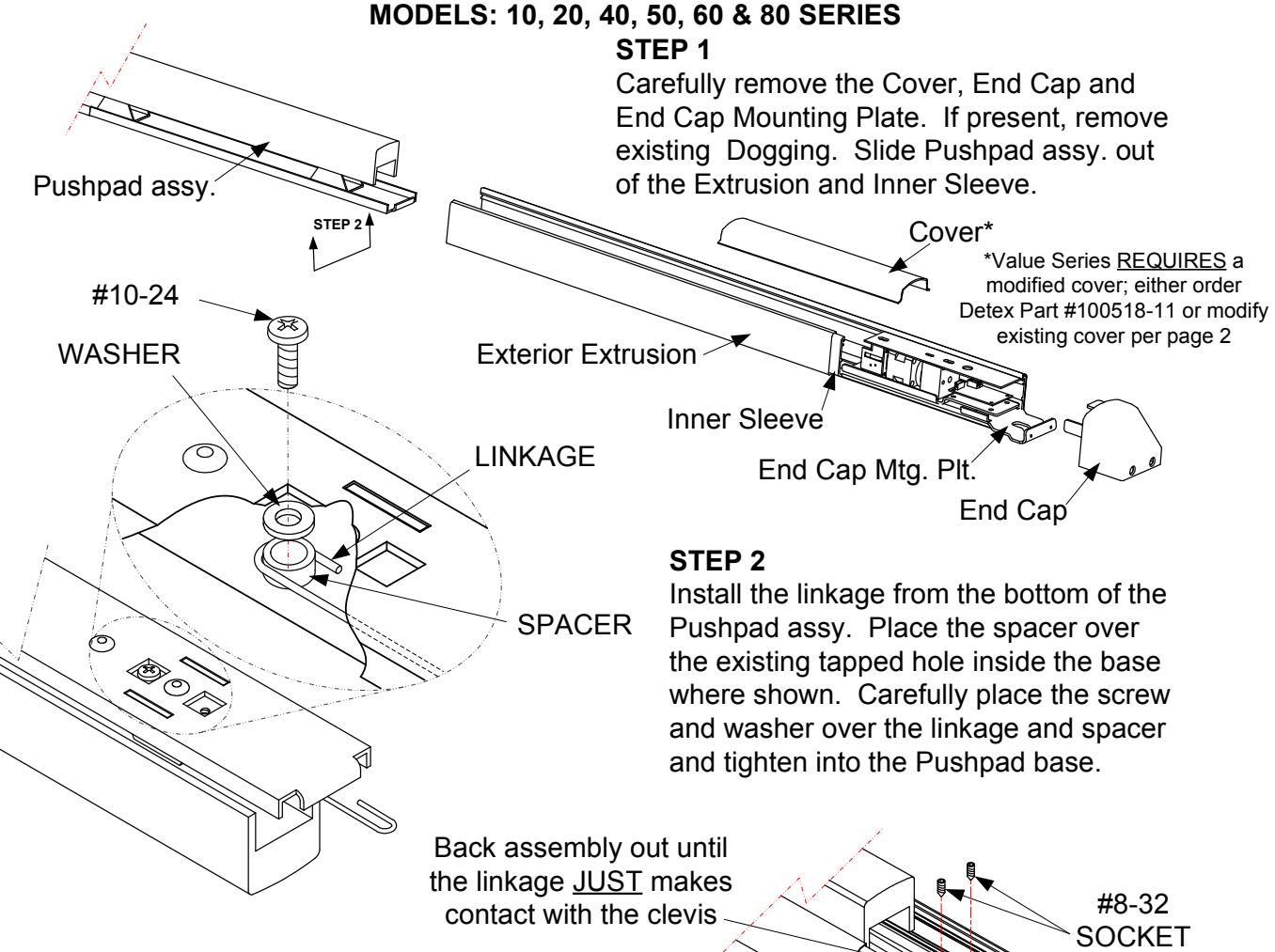

Re-install Pushpad assy. Slide the LR100DXK into the device and attach the linkage to the clevis. Back the assembly out until the linkage JUST makes contact with the clevis. Secure in place with the two #8-32 socket set screws supplied. Wire the unit to power and replace the Cover, End Cap Mounting Plate and End Cap. ELECTRICAL DATA

NOTE Retro-Fitting Vertical Rod Devices:

Before retro-fitting an electric latch assembly into a vertical device, the following must be done to ensure proper alignment. Disconnect the vertical rods from the device head. Install the electric latch assembly as shown above. Once the ELR is properly installed energize it so that the push pad is dogged down, by doing so it will allow for proper alignment for the vertical rods. Finally reconnect the vertical rods to the device and make the proper adjusments.

SCREWS

24VDC @ 700/200mA RED (+) BLK (-) PATENT #8,851,530

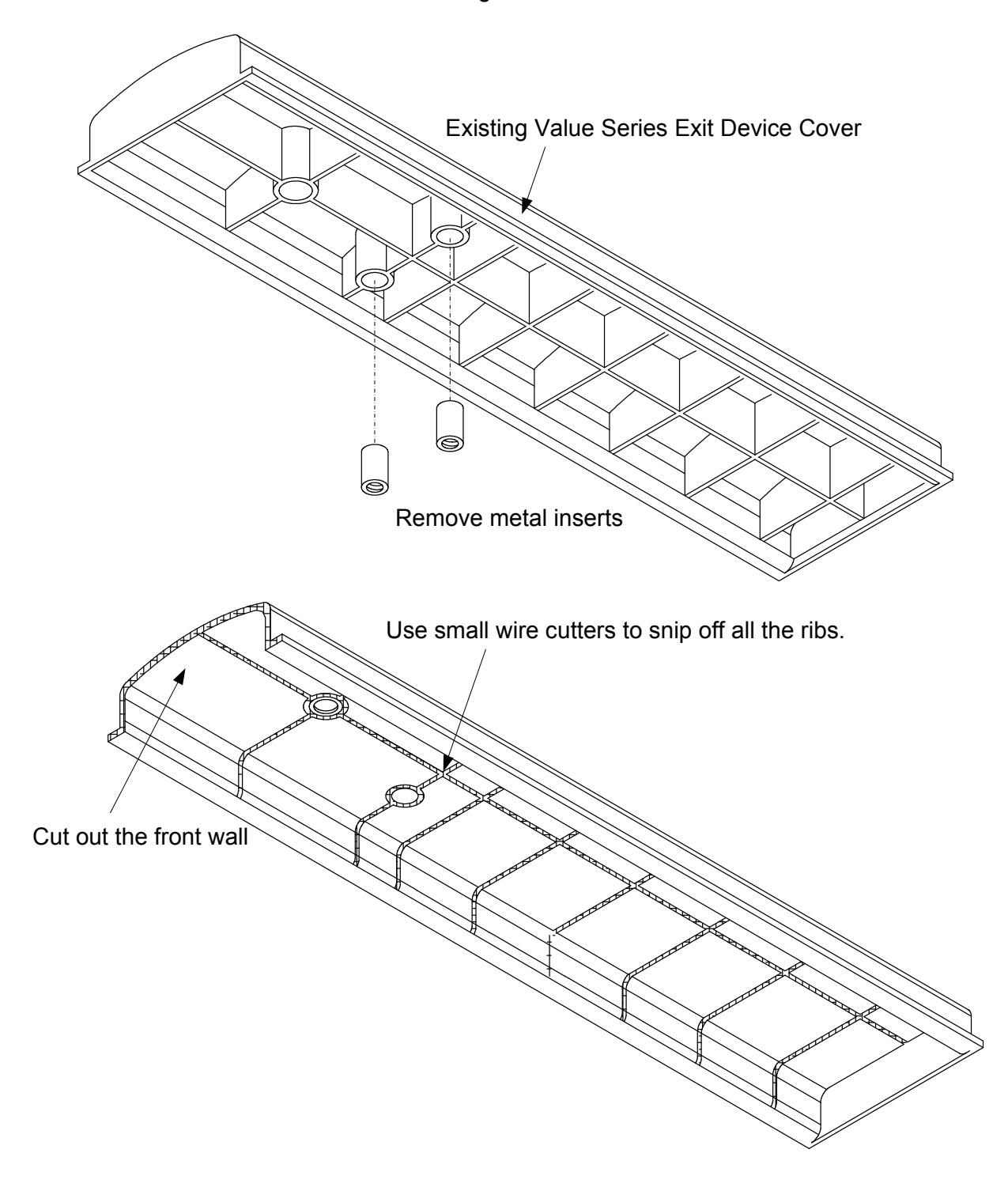

Value Series Existing Cover Modification

Retrofit Installation Note: 42" or 48" exit devices that have been modified to fit a 36" or smaller opening, may not have the required space to fit the standard E. L. R. assembly. Always verify the distance from the end of the touchpad to the end rail, and if necessary, consult with the factory for appropriate selection.
