INSTALLATION INSTRUCTIONS LR100DMK DOR-O-MATIC ELECTRIC LATCH RETRACTION DEVICE KIT MODELS 1490 & 1590

* Visit: sdcsec.com/doromatic For Installation video

801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • www.sdcsecurity.com • E-mail: service@sdcsecurity.com

INSTALLATION INSTRUCTIONS LR100DMK DOR-O-MATIC ELECTRIC LATCH RETRACTION DEVICE KIT MODELS: 1490 & 1590

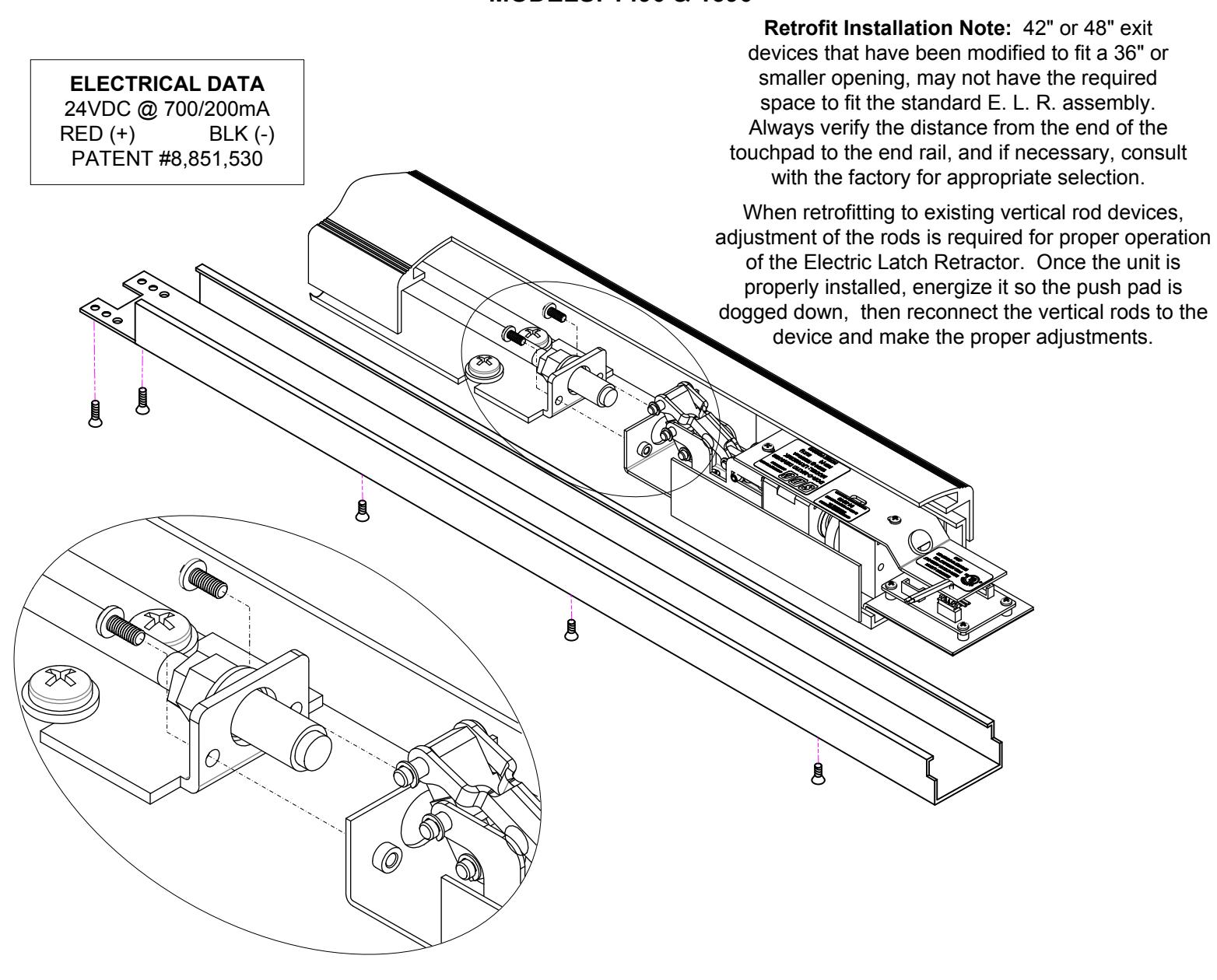

Remove the five screws from the bottom of the device (3 along the center and two on the sides attaching the head).

Slide the bottom housing off of the Push Bar mounting base plate.

Attach the LR100DMK to the Push Bar mounting base plate where shown with the screws provided. Slide the bottom housing back in place over the Push Bar mounting base plate and re-attach the five screws. Test the LR100DMK for proper function.

Run wires through the door and attach to power. Attach Push Bar assembly to the door.
