INSTALLATION INSTRUCTIONS LR100DHK ELECTRIC LATCH RETRACTION KIT DESIGN HARDWARE MODELS 1000R & 1000V

Open the original PDF document

View PDF

801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • www.sdcsecurity.com • E-mail: service@sdcsecurity.com

INSTALLATION INSTRUCTIONS LR100DHK ELECTRIC LATCH RETRACTION KIT DESIGN HARDWARE MODELS: 1000R & 1000V

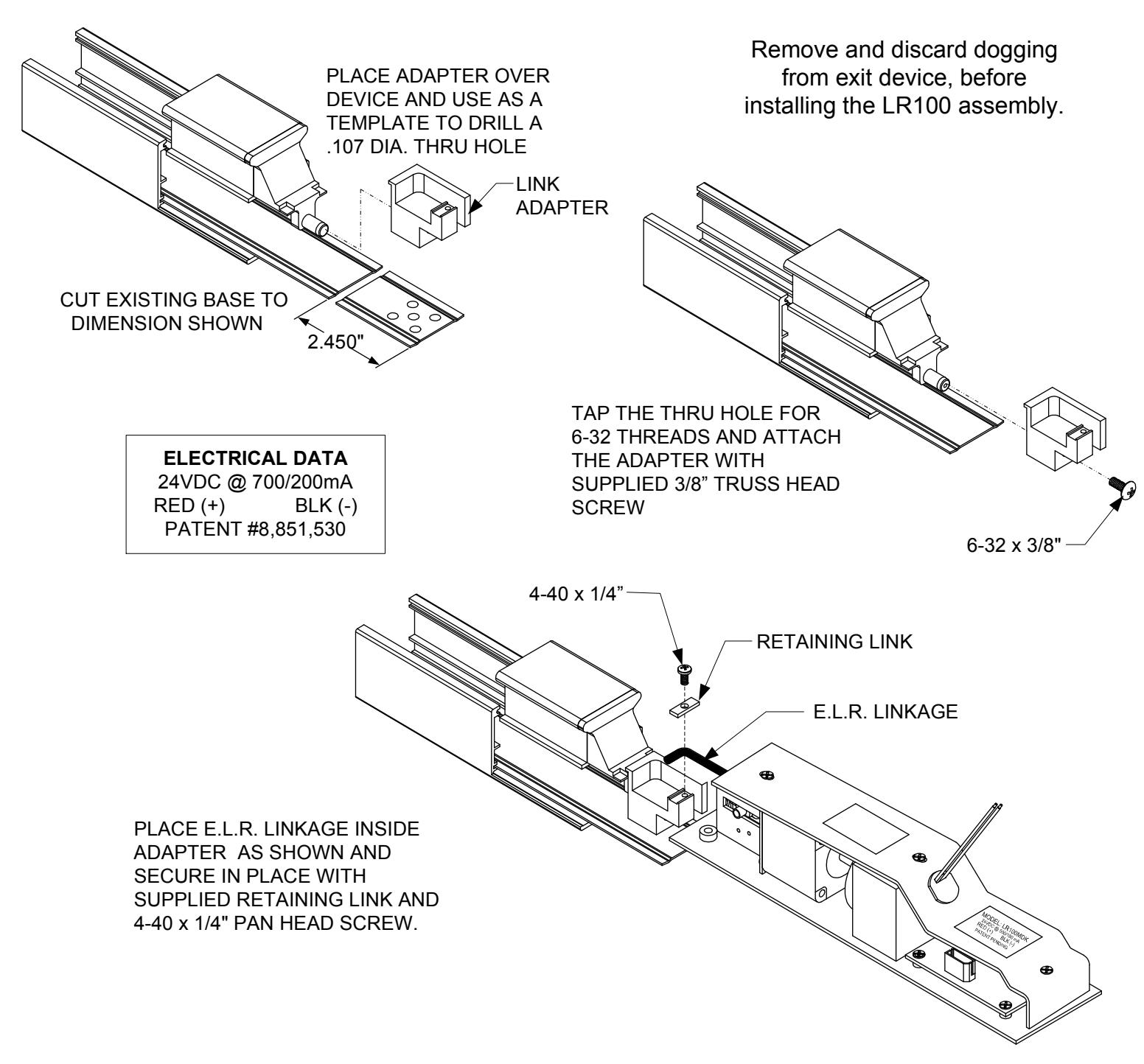

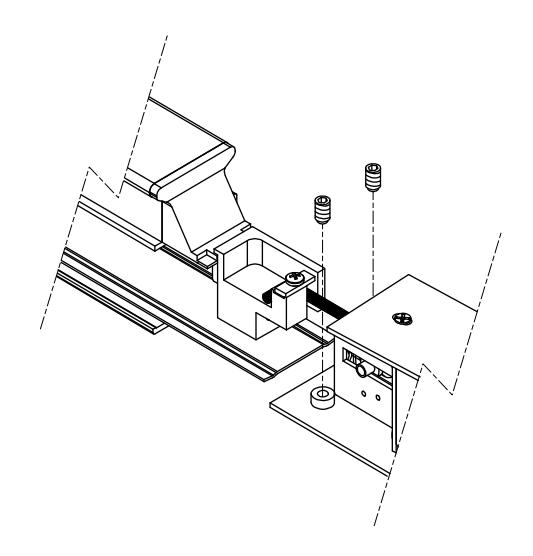

AFTER ATTACHING LINKAGE, POWER THE UNIT. THIS WILL CAUSE THE E.L.R. TO PULL INTO THE EXIT DEVICE. DEPRESS THE PUSH PAD TO PROPERLY POSITION THE E.L.R. MANUALLY PULL THE E.LR. ASSEMBLY BACK TIGHTEN THE SET SCREWS TO LOCK THE E.L.R. IN PLACE. TEST FUNCTION OF E.L.R. BY APPLYING POWER TO VERIFY THAT THE E.LR. ASSEMBLY RETRACTS THE PUSH PAD AND LATCH

Retrofit Installation Note: 42" or 48" exit devices that have been modified to fit a 36" or smaller opening, may not have the required space to fit the standard E. L. R. assembly. Always verify the distance from the end of the touchpad to the end rail, and if necessary, consult with the factory for appropriate selection.

NOTE Retro-Fitting Vertical Rod Devices:

Before retro-fitting an electric latch assembly into a vertical device, the following must be done to ensure proper alignment. Disconnect the vertical rods from the device. Install the electric latch assembly as shown above. Once the ELR is properly installed energize it so that the push pad is dogged down, by doing so it will allow for proper alignment for the vertical rods. Finally reconnect the vertical rods to the device and make the proper adjusments.
