INSTALLATION INSTRUCTIONS LR100CAK ELECTRIC LATCH RETRACTION DEVICE KIT CAL-ROYAL MODELS 7700 & 7760

801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • www.sdcsecurity.com • E-mail: service@sdcsecurity.com

INSTALLATION INSTRUCTIONS LR100CAK ELECTRIC LATCH RETRACTION DEVICE KIT CAL-ROYAL MODELS: 7700 & 7760

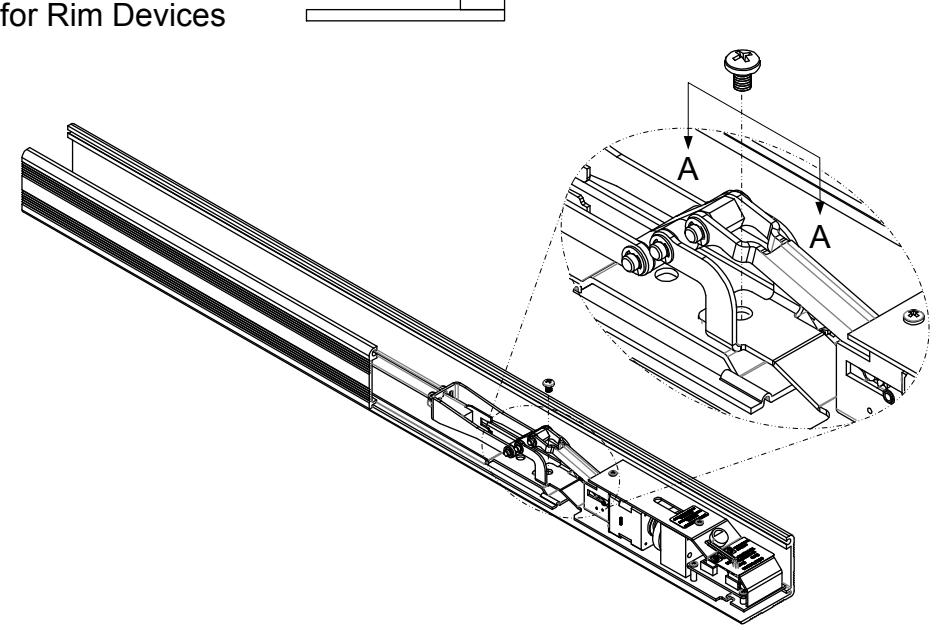

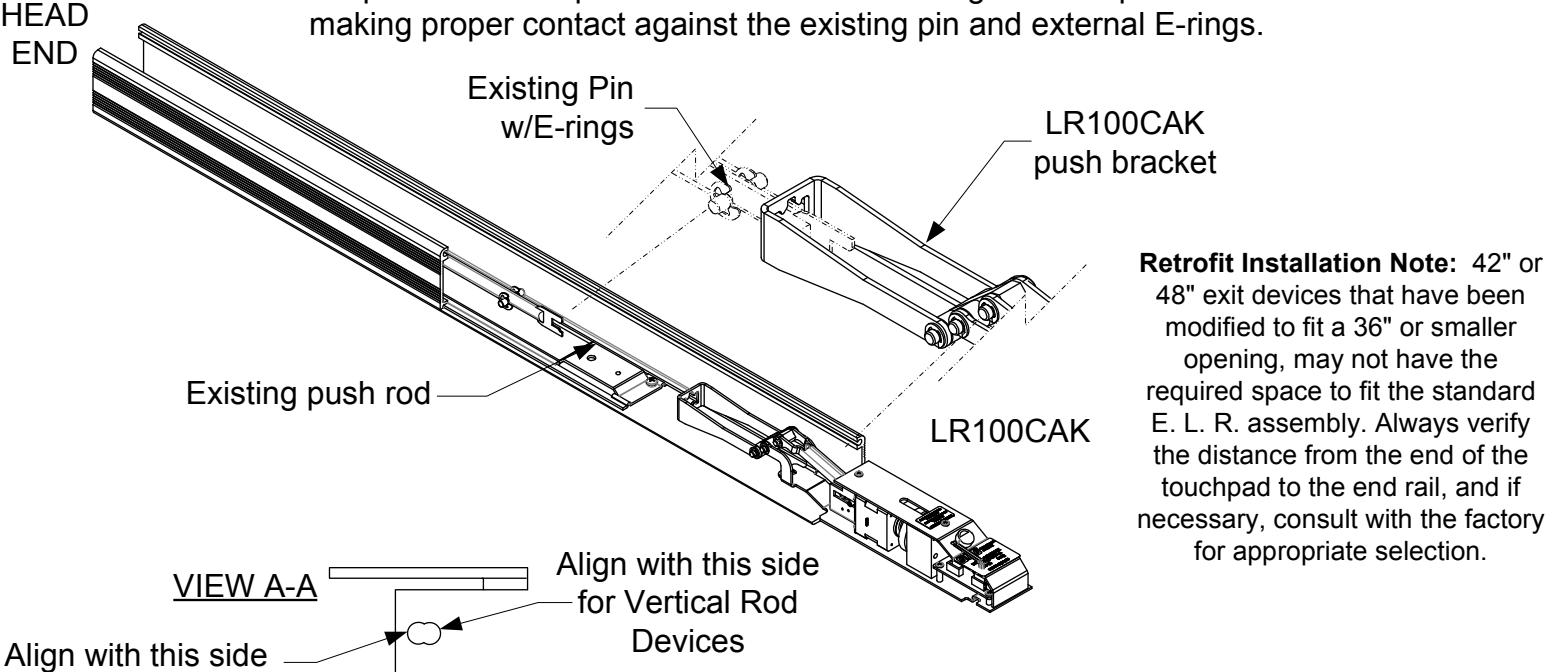

Carefully remove the end cap and device cover from end of Housing. Remove and discard all Dogging components. Insert the LR100CAK into the housing so the bracket on the front of the unit slides over the existing push rod attached to the push bar. Gently push and release the push bar to help facilitate the bracket sliding over the push rod and

Align the desired mounting hole on the LR100CAK with the tapped hole on the push bar base plate and attach with the supplied screw/star washer. Test function and replace device cover and end cap.

ELECTRICAL DATA 24VDC @ 700/200mA RED (+) BLK (-) PATENT #8,851,530

Any suggestions or comments to this instruction or product are welcome. Please contact us through our website or email engineer@sdcsecurity.com
