INSTALLATION INSTRUCTIONS IP100SGK ELECTRIC LATCH RETRACTION DEVICE KIT SARGENT EXIT DEVICE MODELS 8500, 8700 & 8800

801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • www.sdcsecurity.com • E-mail: service@sdcsecurity.com

INSTALLATION INSTRUCTIONS IP100SGK ELECTRIC LATCH RETRACTION DEVICE KIT SARGENT MODELS: 8500, 8700 & 8800

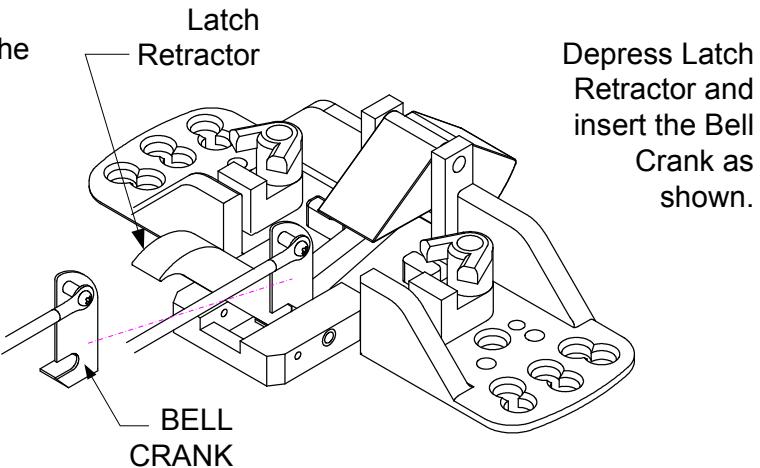

Remove the Head Assembly from the device. Carefully run the Cable inside the rail over the hinge brackets. Attach the Bell Crank as shown. Re-install the Head Assembly to the device. Remove access cover and attach the ELR assembly as described below.

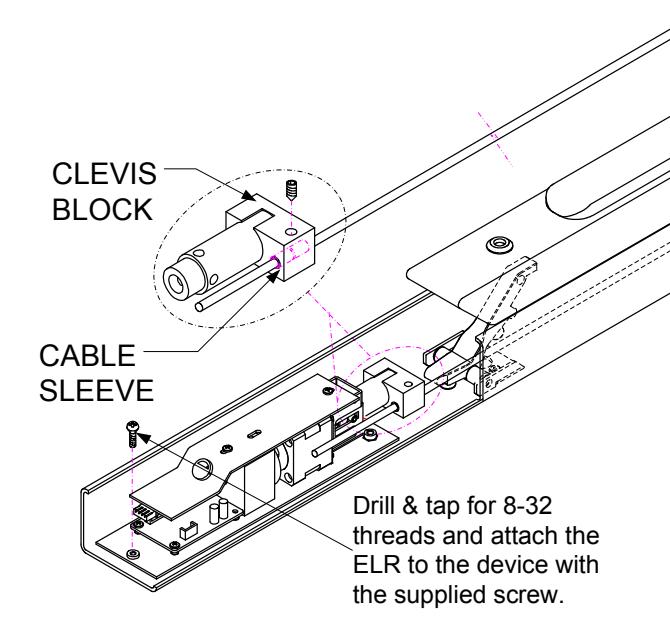

Mount the ELR assembly in the device by positioning the assembly close to the edge of the rail (leave enough room for the End Cap). Drill and tap an 8-32 hole centered on the rail, and attach ELR to rail with supplied screw. Run the cable through the ELR Clevis Block and Cable Sleeve. Install the device to the door.

ELECTRICAL DATA 12VDC @ 700/110mA RED (+) BLK (-) PATENT #8,851,530

Energize the ELR assembly, then pull the cable so that it retracts the latch far enough to clear the strike. Hold the cable in position and secure the set screw firmly on the clevis block, so that the Cable Sleeve secures the cable in block. Test operation and re-attach access cover (NOTE: Access Cover can NOT go back on the same way as it came off. It must be rotated 180 degrees).

Carefully run the Cable inside the rail

over the hinge brackets.
