INSTALLATION INSTRUCTIONS IP100CRK CORBIN RUSSWIN ELECTRIC LATCH RETRACTION DEVICE KIT EXIT DEVICE MODELS ED4200 & ED5200
Open the original PDF document
View PDF
801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • www.sdcsecurity.com • E-mail: service@sdcsecurity.com

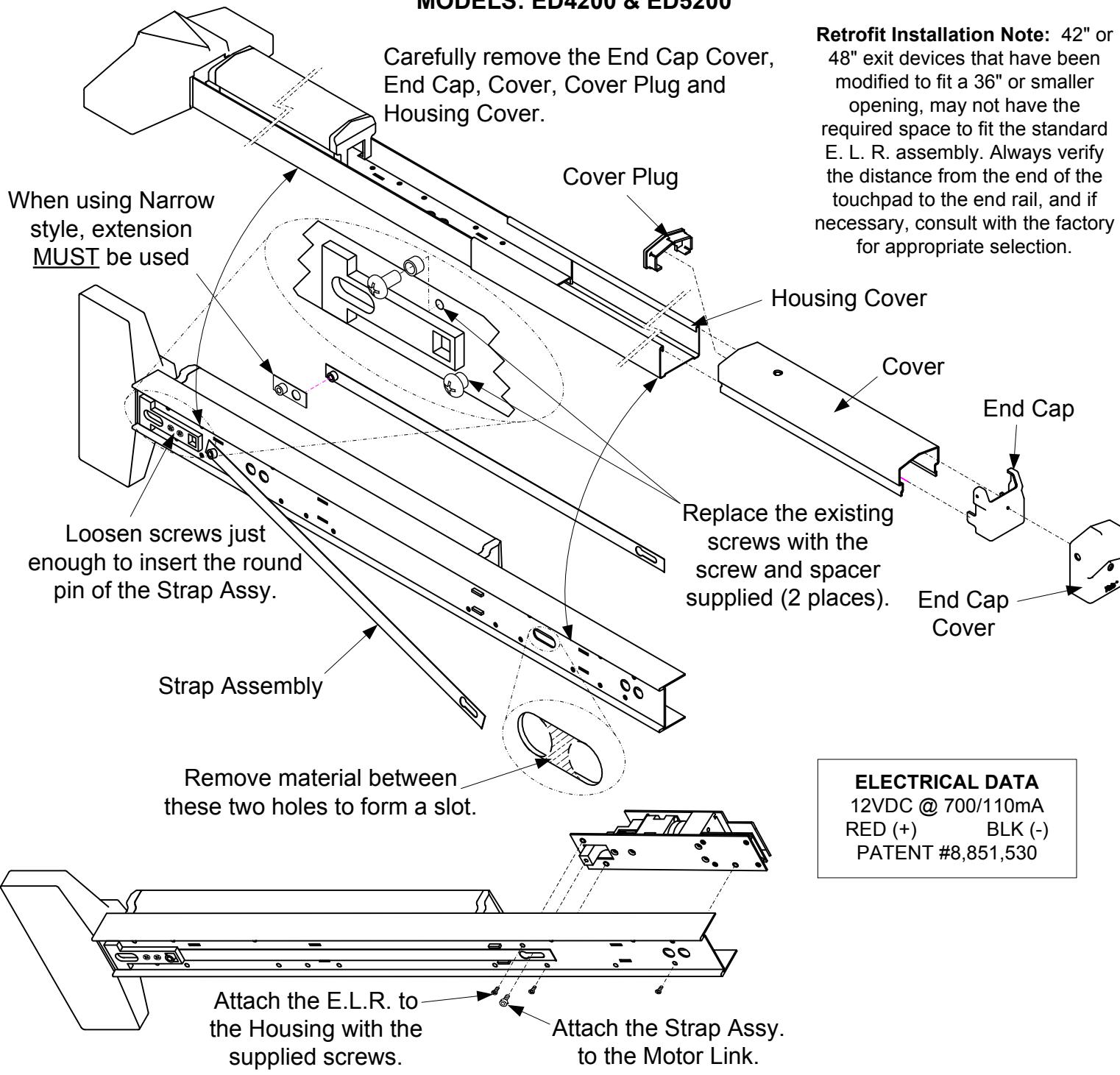

INSTALLATION INSTRUCTIONS IP100CRK CORBIN/RUSSWIN ELECTRIC LATCH RETRACTION DEVICE KIT MODELS: ED4200 & ED5200
Replace Housing Cover, Cover with Plug, End Cap and the End Cap Cover.
