INSTALLATION INSTRUCTIONS ELECTRIC LATCH RETRACTION KIT IP100FRK FALCON IR SERIES EXIT DEVICE MODELS 24-R, F-24-R, 25-R, F-25-R

801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • www.sdcsecurity.com • E-mail: service@sdcsecurity.com

INSTALLATION INSTRUCTIONS ELECTRIC LATCH RETRACTION KIT IP100FRK FALCON IR SERIES MODELS: 24-R, F-24-R, 25-R, F-25-R

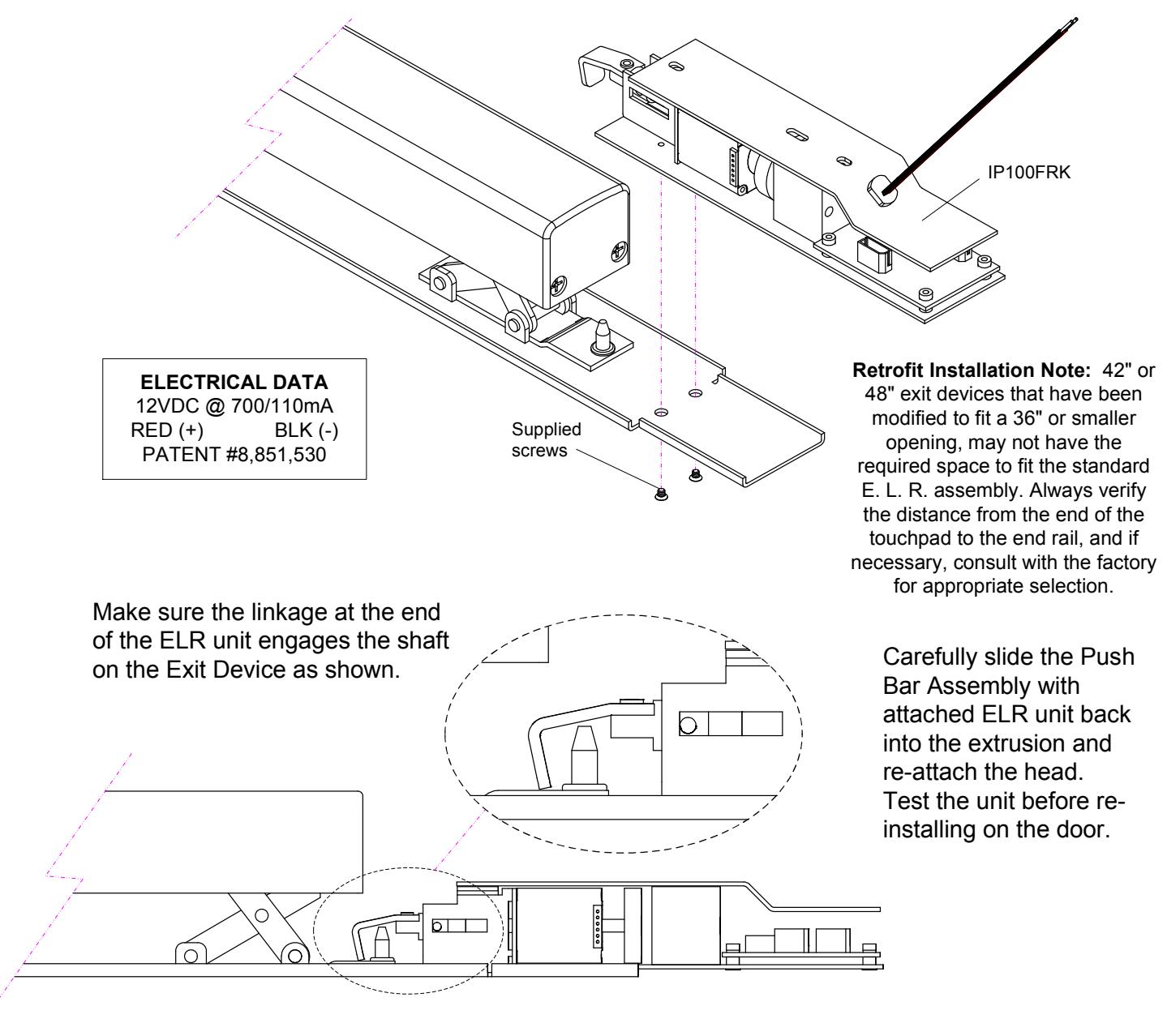

After removing the Falcon IR Exit Device from the door, detach the head and slide the Push Bar assembly out of the extrusion. Attach the IP100FRK ELR unit to the Push Bar Assembly using the existing holes in the base and the supplied screws where shown.
