IN Series Trim 7900, 8200, R8200 Mortise Lock Door Manufacturers Template

REVISIONS ZONE REV. DESCRIPTION DATE ENG REVISED PER EN 724942: 1. $\backslash emptyset$ 1.500 THRU HOLE WAS $\backslash emptyset$ 1.000 THRU 11/16/2020

IN SERIES DOOR MFG TEMPLATE NOTICE TO PERSONS RECEIVING THIS DRAWING AND/OR TECHNICAL INFORMATION The material disclosed herein is the confidential and MORTISE LOCK proprietary information of Sargent Manufacturing Company (the "Company"). This drawing and/or technical information is issued in confidence for engineering information only and may not be reproduced or used to manufacture anything, including the items shown or referred to hereon, without FRACTIONS ± 1/64 SURFACE FINISH 63/ PROJECTION + HEAT TREATMENT DESIGNED BY DATE CREATED 04/26/2018 ASSA ABLOY direct written permission from the Company. This drawing and/or technical information is the property of the SCALE SIZE D DOCUMENT ID D000912629-000 Company and is loaned for mutual assistance to be returned when its purpose has been served or upon the request of the Company. MASS 8.502 lb VOLUME 209.992 in SURFACE AREA 914.139 in 4713 SHEET 1 OF 2

configuration Default

LEGACY ID

⁵ Approved 2020-12-01

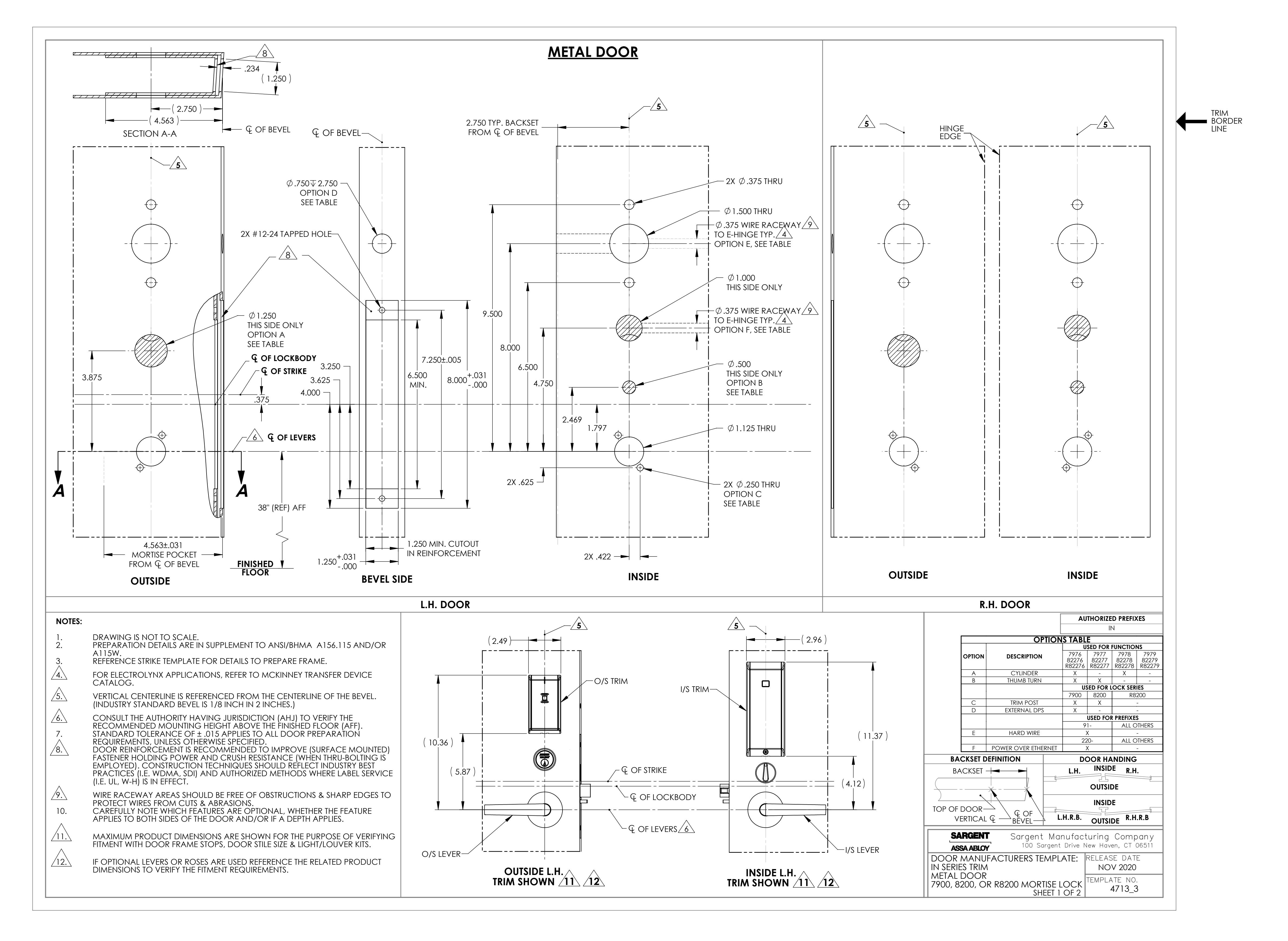

REVISIONS ZONE REV. DESCRIPTION DATE ENG See METAL DOOR TEMPLATE

⁵ Approved 2020-12-01

IN SERIES DOOR MFG TEMPLATE NOTICE TO PERSONS RECEIVING THIS DRAWING AND/OR TECHNICAL INFORMATION MORTISE LOCK proprietary information of Sargent Manufacturing Company (the "Company"). This drawing and/or technical information is issued in confidence for engineering information only and may not be reproduced or used to manufacture anything, including the items shown or referred to hereon, without FRACTIONS ± 1/64 SURFACE FINISH 63/ PROJECTION + HEAT TREATMENT DATE CREATED 04/26/2018 DESIGNED BY ASSA ABLOY direct written permission from the Company. This drawing and/or technical information is the property of the SCALE SIZE D DOCUMENT ID D000912629-000 Company and is loaned for mutual assistance to be returned when its purpose has been served or upon the request of the Company. volume 185.516 in³ | Surface area 420.242 in² | DRAWING N 3.753 lb

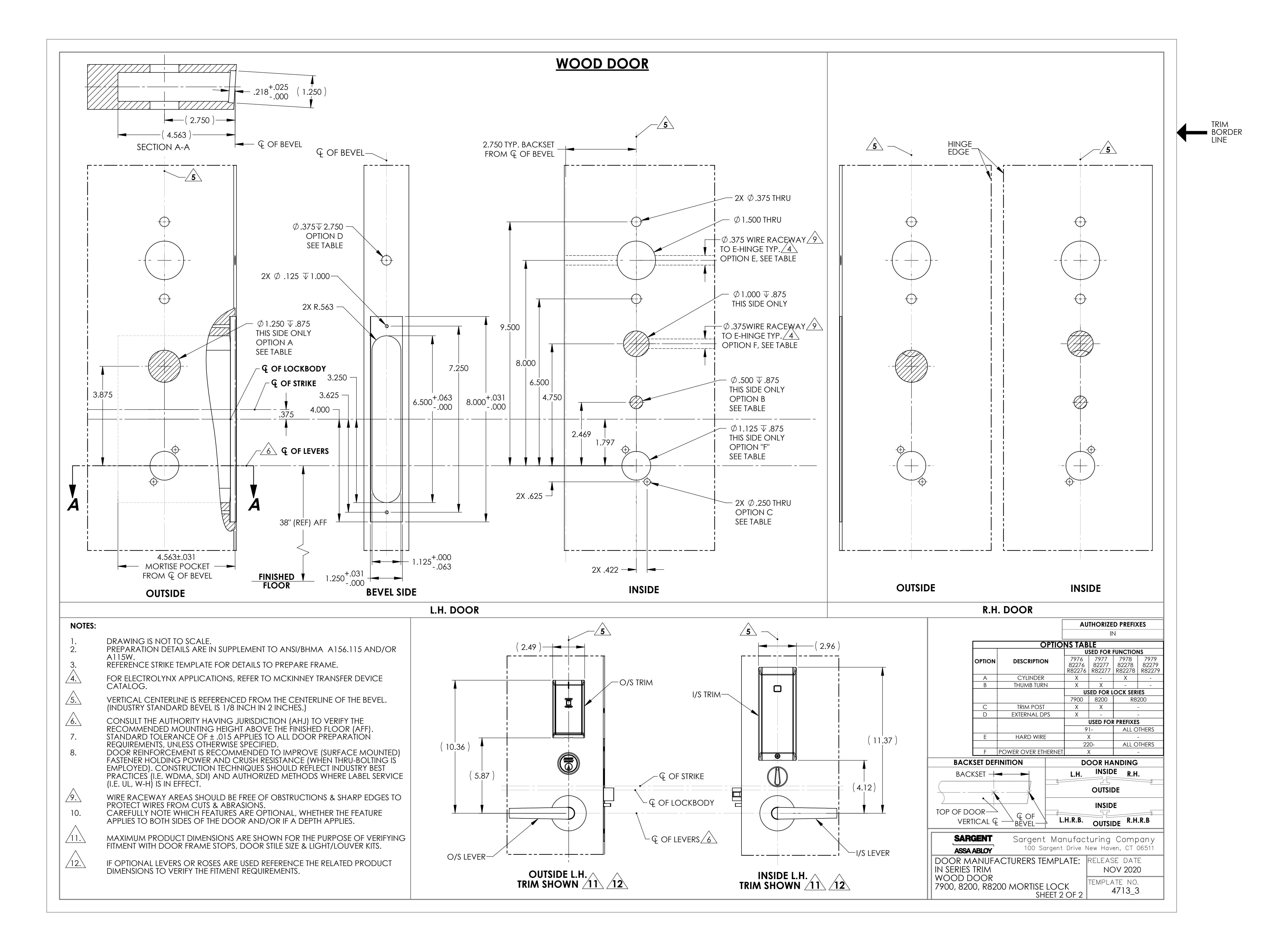

SHEET 2 OF 2 CONFIGURATION _ WOOD DOOR PREP L.H.
